Patterson 22" High Velocity Fans

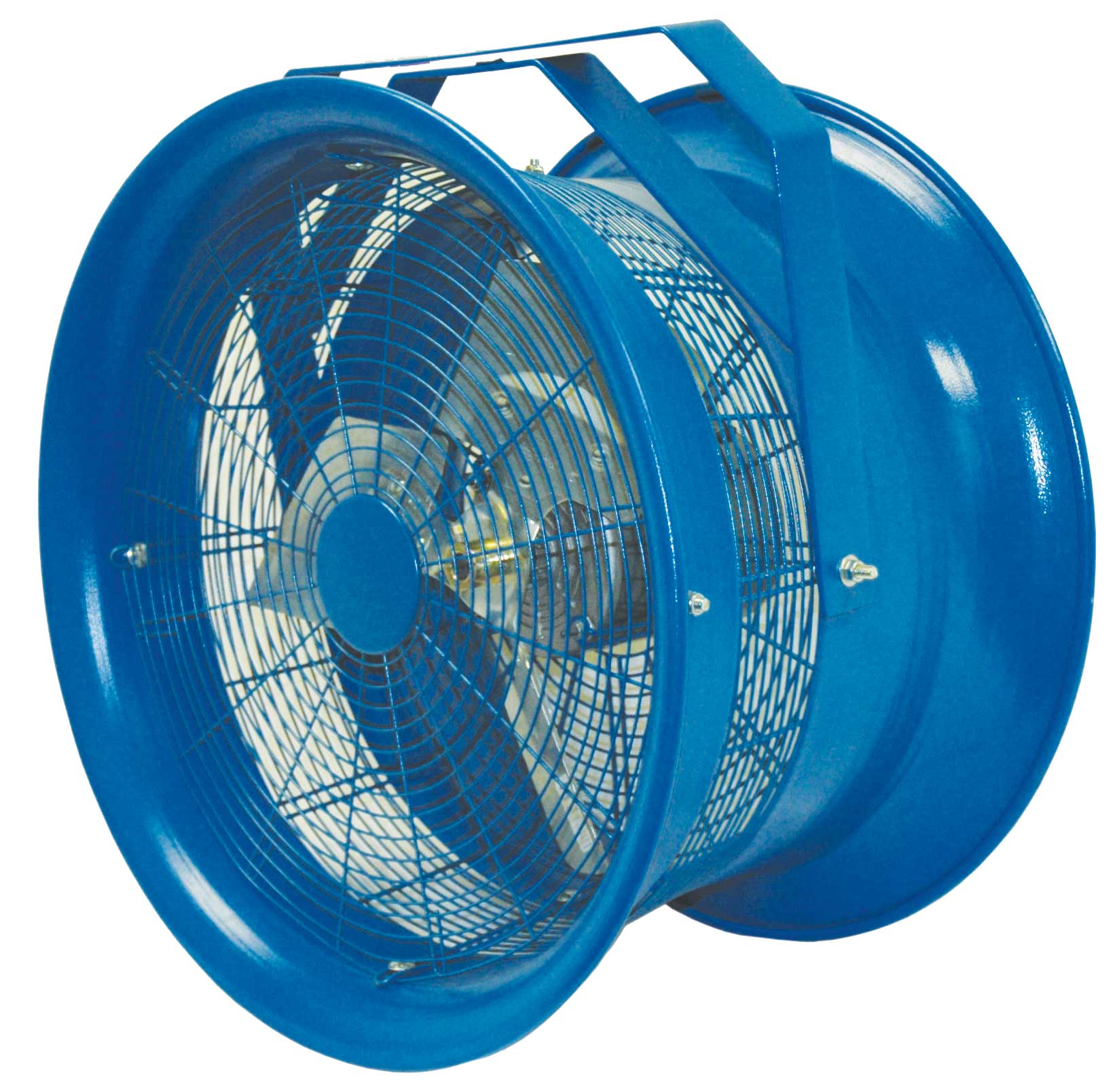

Yoke Mount

Click on image to enlarge

FEATURES

  • Propeller: 20.75“ Diameter, 3 Blade GalvAlum (19 Degree)

  • Fan Inlet/Outlet: 16 Gauge Spun Steel

  • Finger Guards: OSHA STANDARD, Spiral Wound Steel

  • RPM: 1725

  • Decibles: 76.5 dba

  • Enclosure: TEAO Standard

  • Frame: 56

  • Ambient Temperature: 40C

  • Duty Cycle: Continuous

  • Power Cord (115V Only): 12’ Length

  • Coverage: 3600 Sq.Ft. Max

  • Warranty:  2 Years

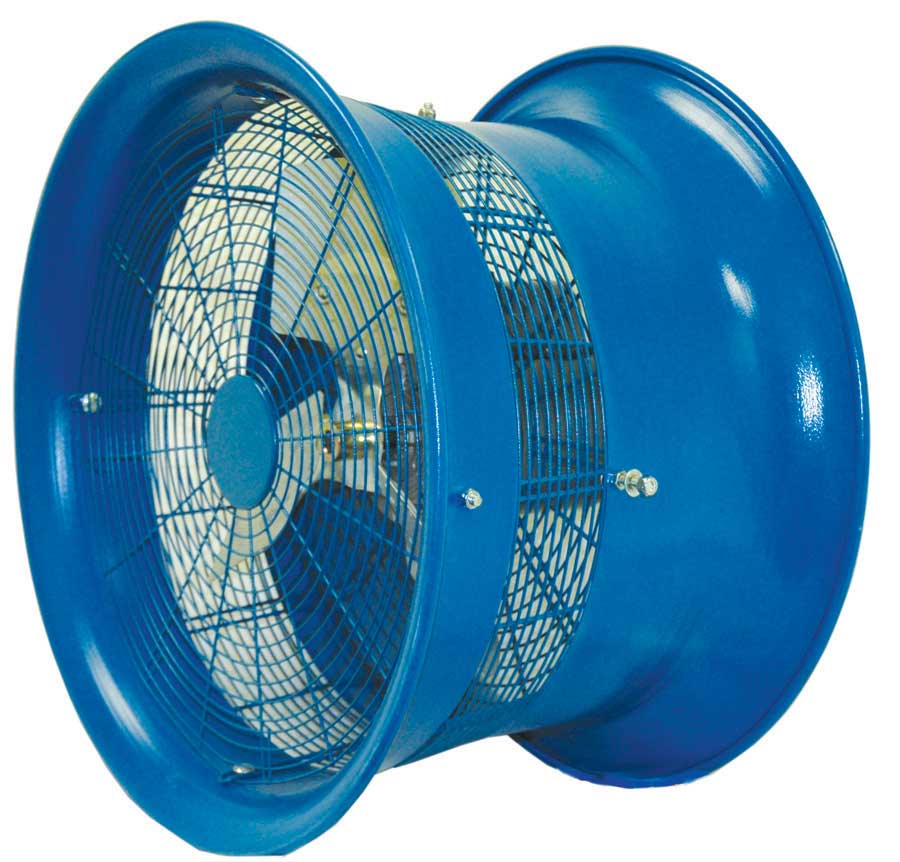

HV-22
Click on image to enlarge

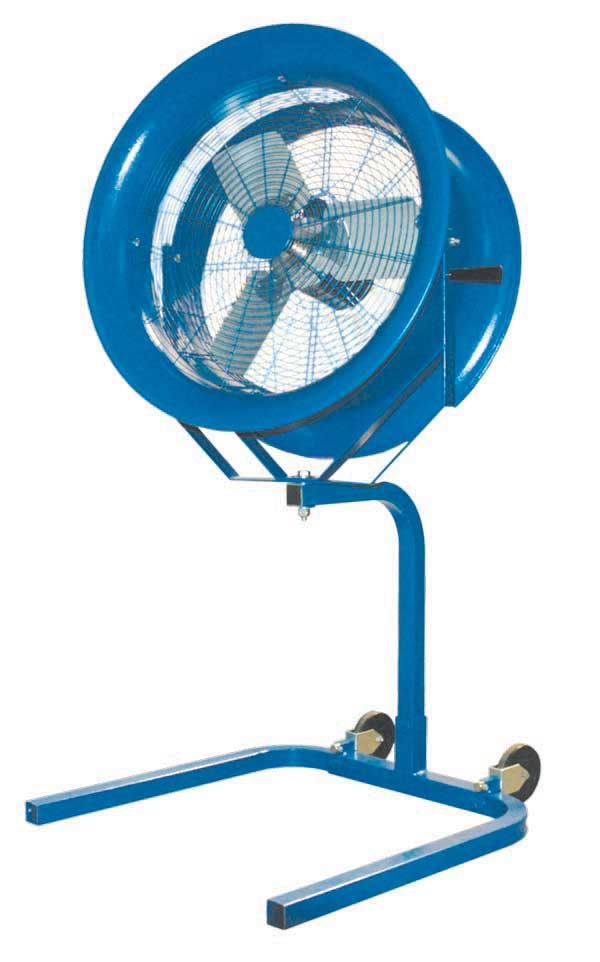

PS-22
Click on image to enlarge

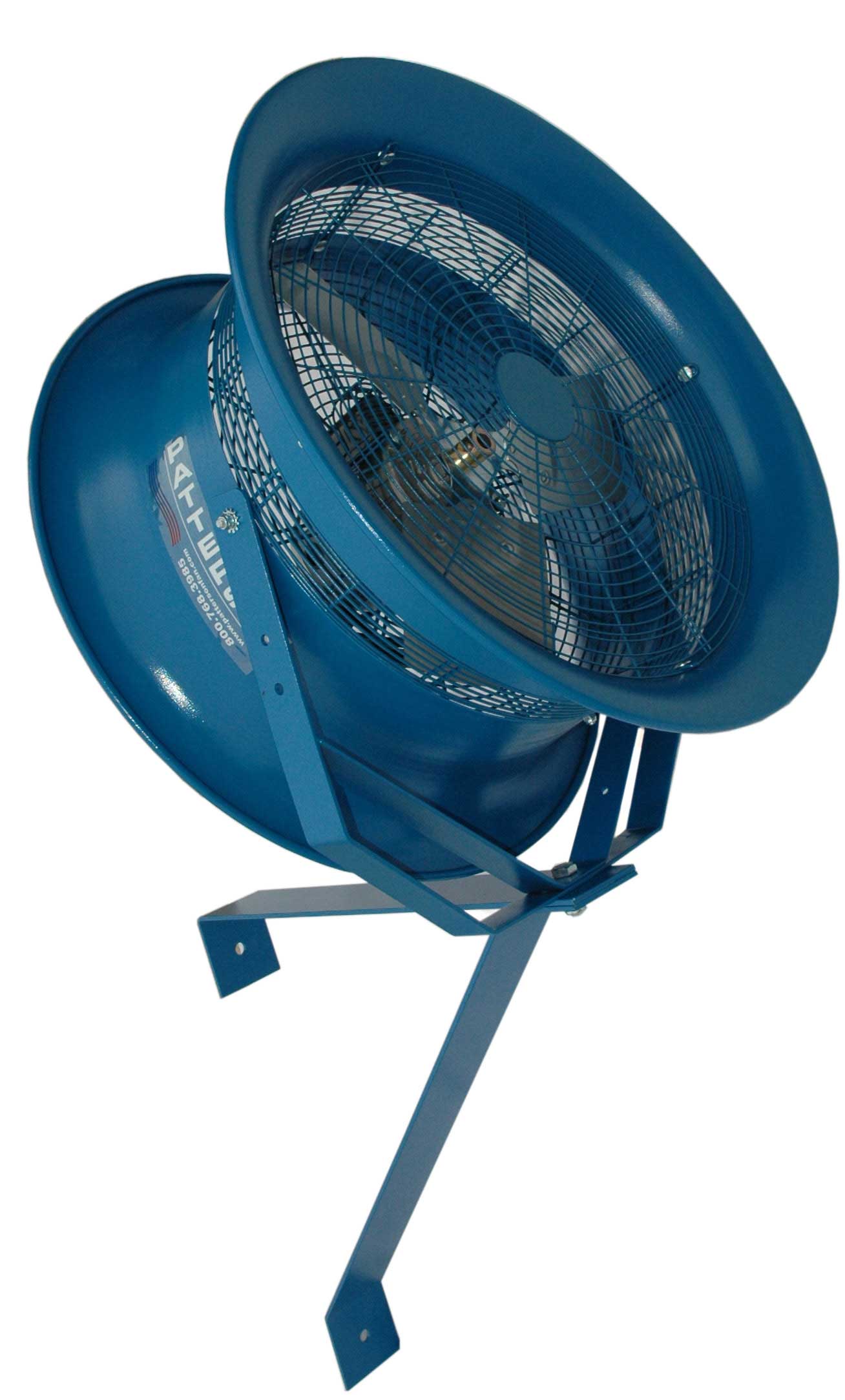

CW-22
Click on image to enlarge
SPECIFICATIONS
Model Number YM-22 PS-22 HV-22 CW-22
Unit Type Yoke Mount Pedestal Stroller Ceiling Mount Column Wall Mount
Size 22"
CFM 5570
HP 1/2
Fan Dimensions
Width 29"
Diameter 16"
Internal Diameter 22-1/2"
Distance Air Throw 100'
Shipping Weight 69 lbs 105 lbs 70 lbs 91 lbs
Available Voltages 115V/208-230V*
208-230/460V

*Standard


PATYM-22-115V
$760.00 $567.86
"22"" Size Yoke Mount ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATYM-22-230V/460V
$777.00 $621.18
"22"" Size Yoke Mount ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATPS-22-115V
$893.00 $647.84
"22"" Size Portable Stroller ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATHV22-115V
$713.00 $530.53
"22"" Size Ceiling Suspended ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATHV22-230V/460V
$731.00 $583.85
"22"" Size Ceiling Suspended ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATCW-22-115V
$826.00 $621.18
"22"" Size Column Wall mount ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATCW-22-230V/460V
$844.00 $674.50
"22"" Size Column Wall mount ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"
