Patterson 26" High Velocity Fans

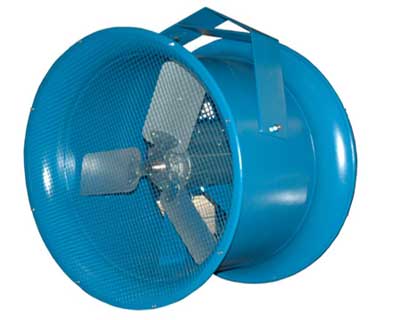

Yoke Mount

FEATURES

  • Propeller: 26“ Diameter, 3 Blade GalvAlum (18 Degree)

  • Fan Inlet/Outlet: 14 Gauge Spun Steel

  • Finger Guards: Spiral Wound Steel

  • RPM: 1800

  • Decibles: 85.5 dba

  • Enclosure: TEAO Standard

  • Frame: 56

  • Ambient Temperature: 40C

  • Duty Cycle: Continuous

  • Power Cord (115V Only): 12’ Length

  • Coverage: 6100 Sq.Ft. Max

  • Warranty:  2 Years

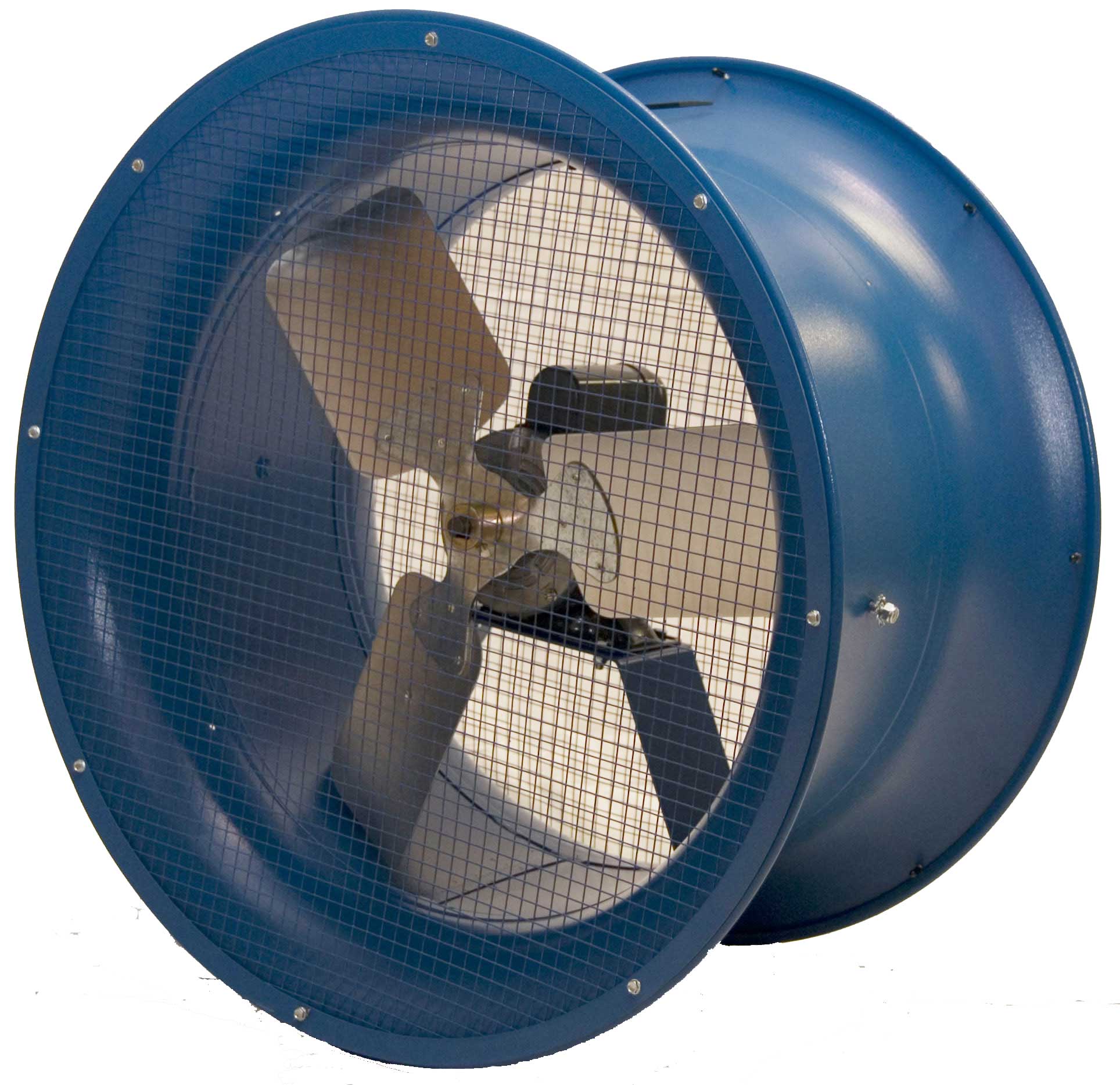

HV-26
Click on image to enlarge

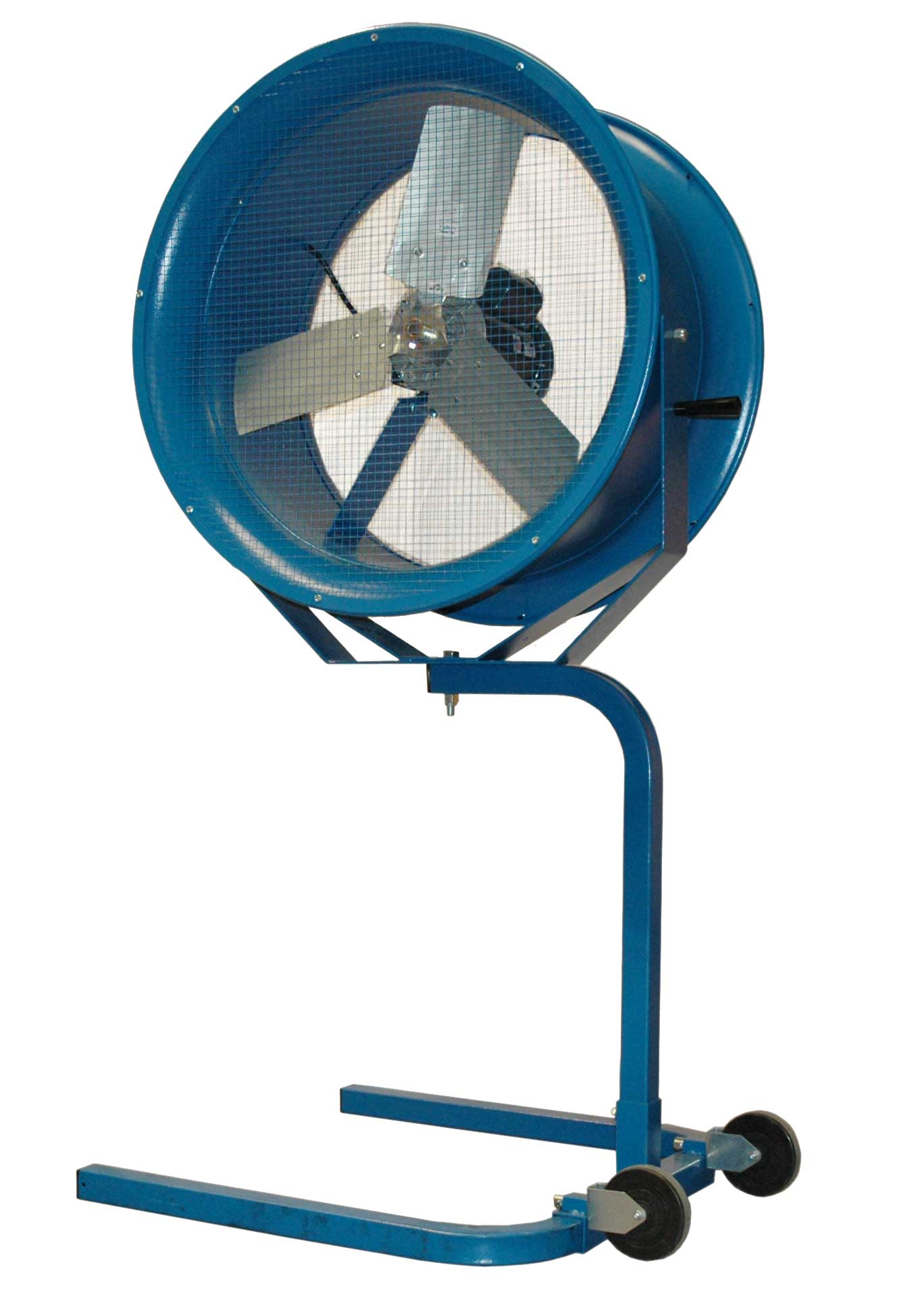

PS-26
Click on image to enlarge

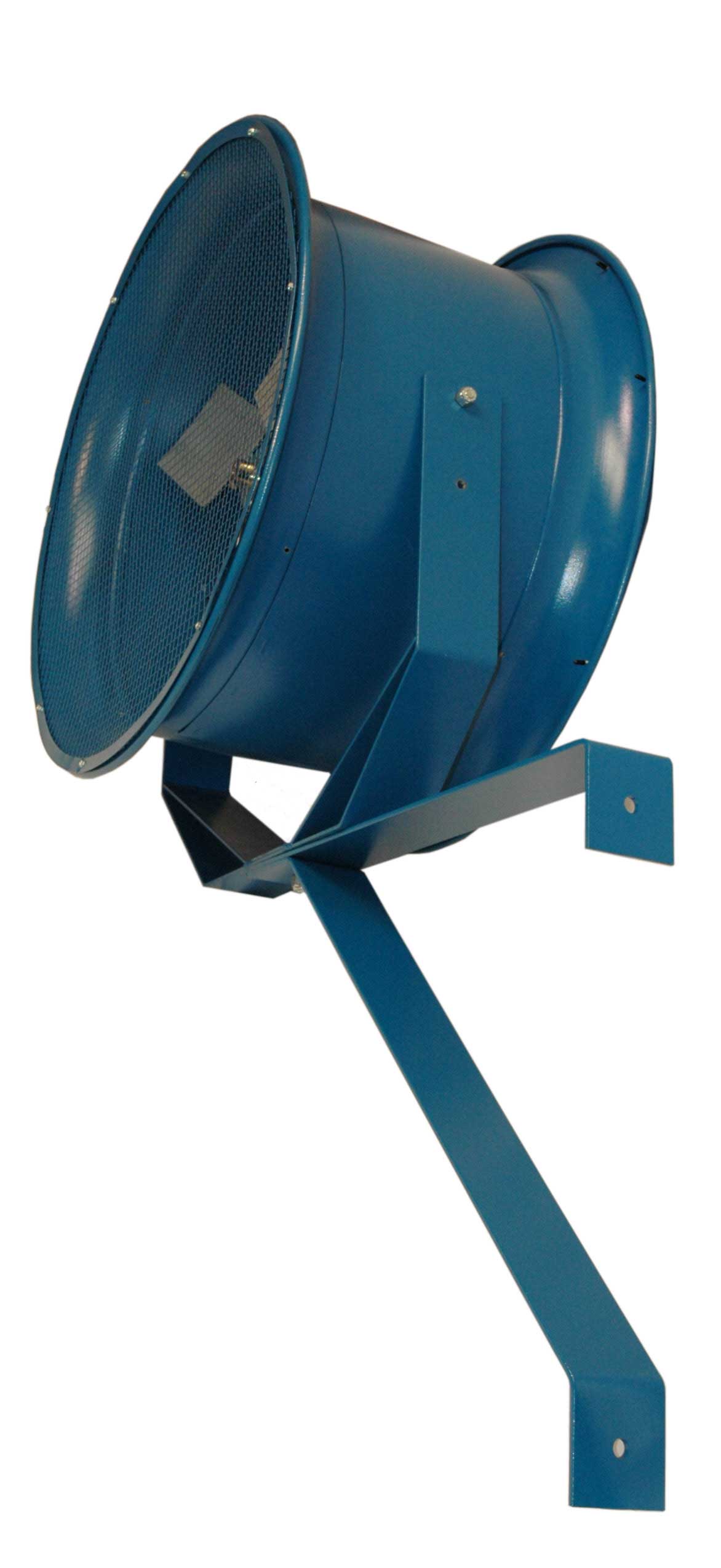

CW-26
Click on image to enlarge
SPECIFICATIONS
Model Number YM-26 PS-26 HV-26 CW-26
Unit Type Yoke Mount Pedestal Stroller Ceiling Mount Column Wall Mount
Size 26"
CFM 7650
HP 1
Fan Dimensions
Width 33"
Diameter 18.5"
Internal Diameter 27"
Distance Air Throw 150'
Shipping Weight 93 lbs 129 lbs 94 lbs 115 lbs
Available Voltages 115V/208-230V*
208-230/460V

*Standard



PATYM-26-115V
$1,093.00 $842.46
"26"" Size Yoke Mount ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATYM-26-230V/460V
$920.00 $735.82
"26"" Size Yoke Mount ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATPS-26
$1,185.00 $922.44
"26"" Size Portable Stroller ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATHV-26-115V
$1,033.00 $1,194.37
"26"" Size Ceiling Suspended ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATHV-26-230V/460V
$860.00 $687.83
"26"" Size Ceiling Suspended ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATCW-26-115V
$1,160.00 $895.78
"26"" Size Column Wall mount ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATCW-26-230V/460V
$987.00 $789.14
"26"" Size Column Wall mount ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"
