Patterson Spot Cooler


Click on image to enlarge

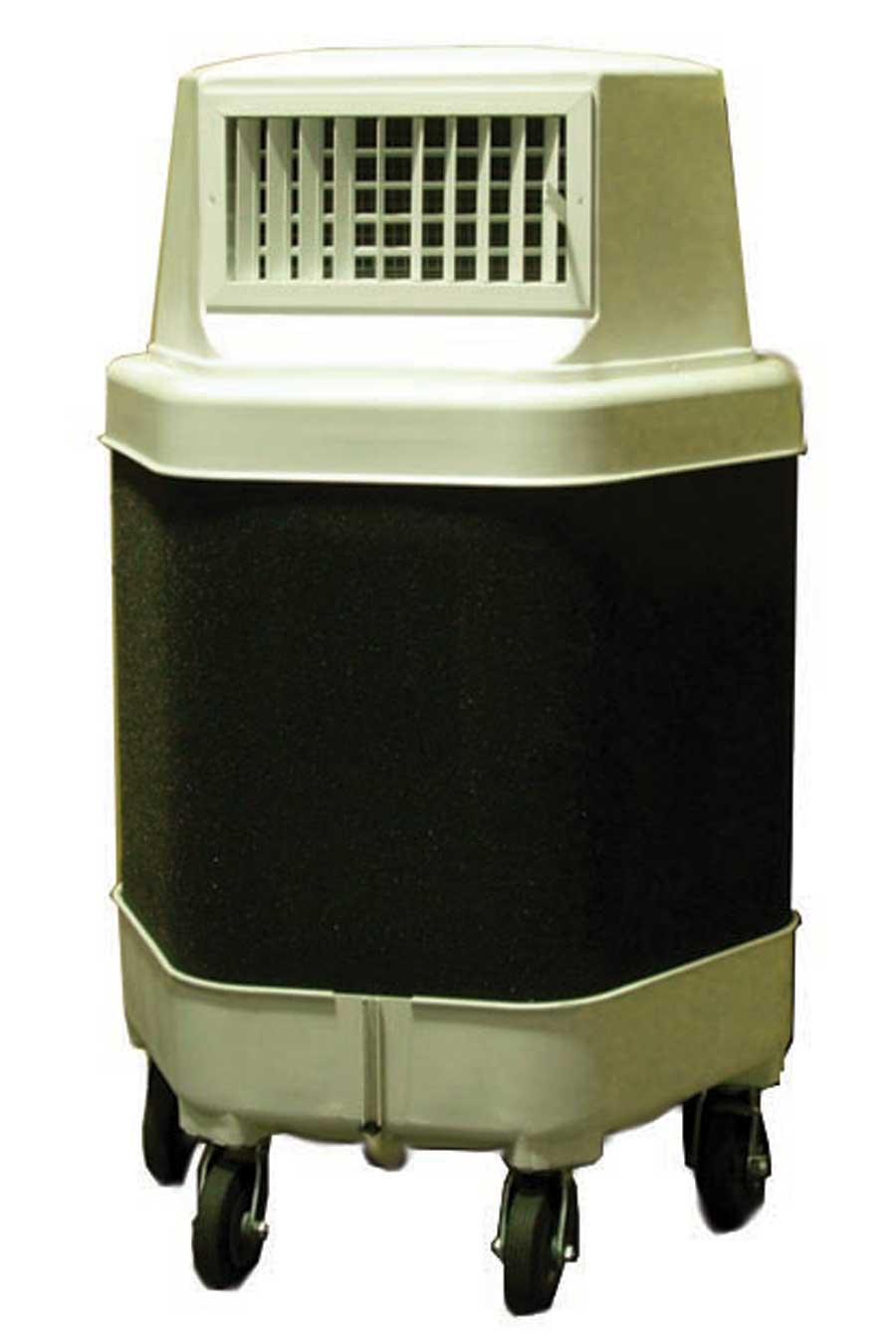

Portable Evaporative Spot Cooler

Product Description

This portable evaporative cooler is designed to provide cool fresh air into the work place using evaporation.

The Patterson Spot Cooler will reduce the air temperature coming into the unit up to 20° Fahrenheit and the high powered blower will deliver this air up to 55+ feet/17+ meters. The unit comes with a garden hose attachment for easy filling. Water from the bottom pan of the cooler is pumped to the top and allowed to flow down over the evaporative pads of the unit, evenly saturating the pads. A powerful blower pulls the air through the pads, forcing the water to evaporate.

The Patterson Spot Cooler is portable and easy to roll with locking casters.



Click here for more information about our Spot Cooler


SPECIFICATIONS
Model Number IC3
Base 31-1/2" x  31-1/2" High Density Polyethylene (HPDE)
Height 59"
Water Capacity 24 gals
Weight 180 lbs
Weight w/ Water 380 lbs
Blower
Horsepower 1 HP
Phase Single
Voltage 115 Volts
RPM 1725
Full Load Current 10.8 amps
Safety Factor 1.15
Enclosure ODP
Frame 56
Pump
Pump 210 GP
Voltage 115 Volts
Phase Single
Amps 1.1
Model: Patterson Spot Cooler
Mount Portable

Color

White
Shipping Weight 180 lbs
CFM 3000
Air Throw 55 + Feet
Coverage 1500 sq ft max
Warranty 1 Year


PATIC3
$2,311.25 $1,971.51
"Spot Cooler Evaporative Cooler 115V ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"
