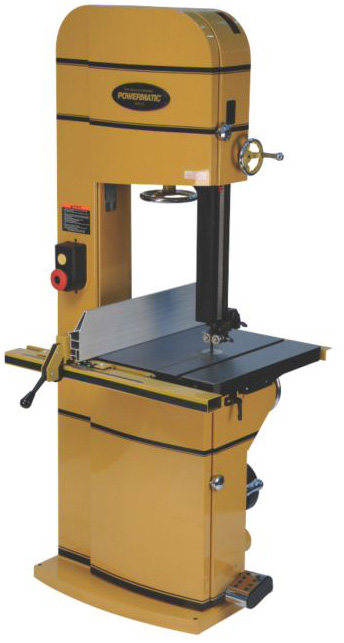

The new PM1800 Bandsaw is a part of the new breed of high
performance products from Powermatic - the Gold Standard since 1921.
Designed with an enormous 18" resaw, multi-step blade tension,
precision blade guides, and a 5HP motor hungry for hardwoods, this
powerhouse comes standard with all the extra features you've come to
expect from PowermaticFeatures:
-
Tension lever has full tension, partial tension, and blade
release settings for easy blade changes and tracking
-
Micro-adjustable, tool-less bearing guide system gives close
blade control while reducing friction
-
Special grooved thrust bearing stabilizes smaller blades
-
Heavy duty T-square style rip fence has adjustable aluminum face
-
Large 24" x 24" cast iron table
-
2-inch diameter resaw post for industrial work
-
18 inches under guide, and 18-inch width capacity
-
Magnetic starter with lighted "on" button and jumbo stop
-
Chrome knobs and handles ensure solid grip and firm locking of
parts
-
Precision balanced cast iron wheels reduce vibration
-
Dual 4-inch exhaust ports for effective dust and chip removal
-
Adjustable miter gauge with stops
|
|
SPECIFICATIONS |
| Part Number |
1791800 |
| Cutting
Capacity (W/in.) |
18 |
| Cutting Capacity (H/in.) |
18 |
| Blade
Length (in.) |
160 |
| Table Dimension (LxW/in.) |
24 x 24 |
| Table Tilt
(deg.) |
45R, 15L |
| Table Height at 90º (in.) |
37-1/2 |
| Miter Gauge
Positive Stops (deg.) |
45 and 90 |
| Dust Port Diameter (OD/in.) |
4 |
| Stand Type |
Closed |
| Thickness Capacity (max./in.) |
18 |
| Wheel
Diameter (in.) |
18-1/2 |
|
|
SPECIFICATIONS |
| Model Number |
PM1800 |
| Motor HP |
5HP |
| Motor Phase |
1PH |
| Motor
Voltage |
230V |
| Motor Amps |
21 |
| Web
Description |
PM1800, 18"
Bandsaw, 5HP 1PH 230V |
| Brand |
Powermatic |
| Overall
Dimensions |
38 x 38 x
81 |
| Height |
81 inch |
| Width |
38 inch |
| Length |
38 inch |
| Net Weight |
796 pound |
|
|
