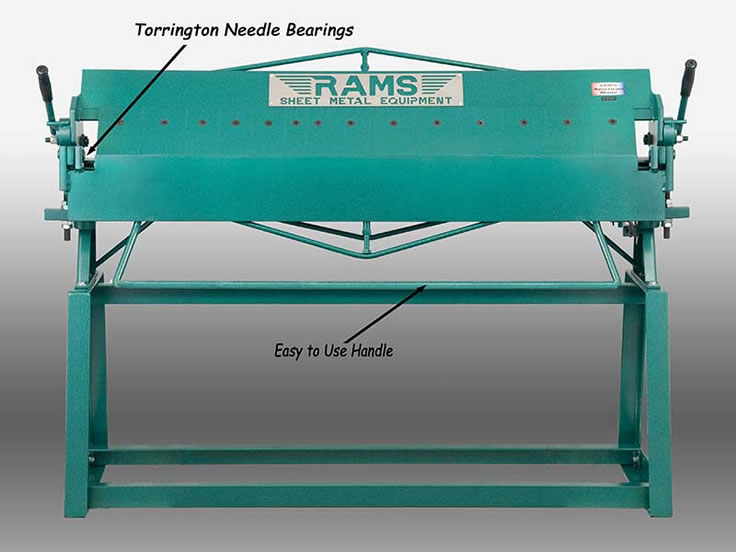

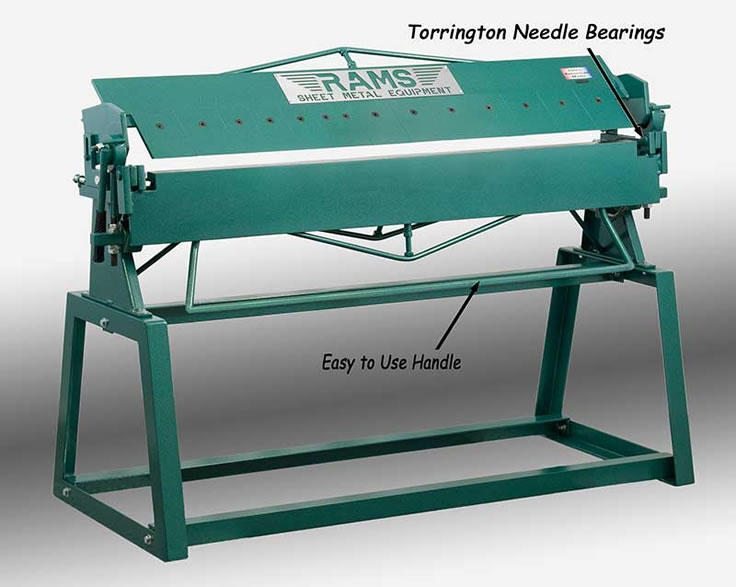

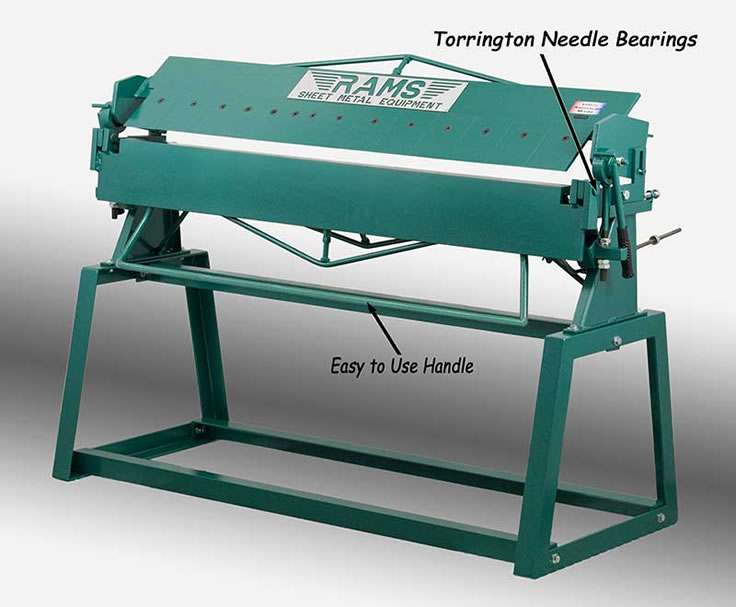

| The unit is featured with
Torrington needle bearings for a smoother bending motion. There are
sectioned fingers that can be removed to bend any length of metal
from 2” to the full 49” length of machine. The brake comes with (9)
4”, (3) 3”, and (2) 2” fingers for adjustment. An easy to use handle
extends all the way across the machine
 |
|
SPECIFICATIONS |
| Bending Capacity |
20Ga. Mild Steel |
| Bend Length |
49" |
| Depth of box |
4 1/4" |
| Lift of beam |
1 1/4" |
| Dimensions |
60" Long x 26" Wide x 43"
high |
| Approx Weight |
335 lbs. |
|
