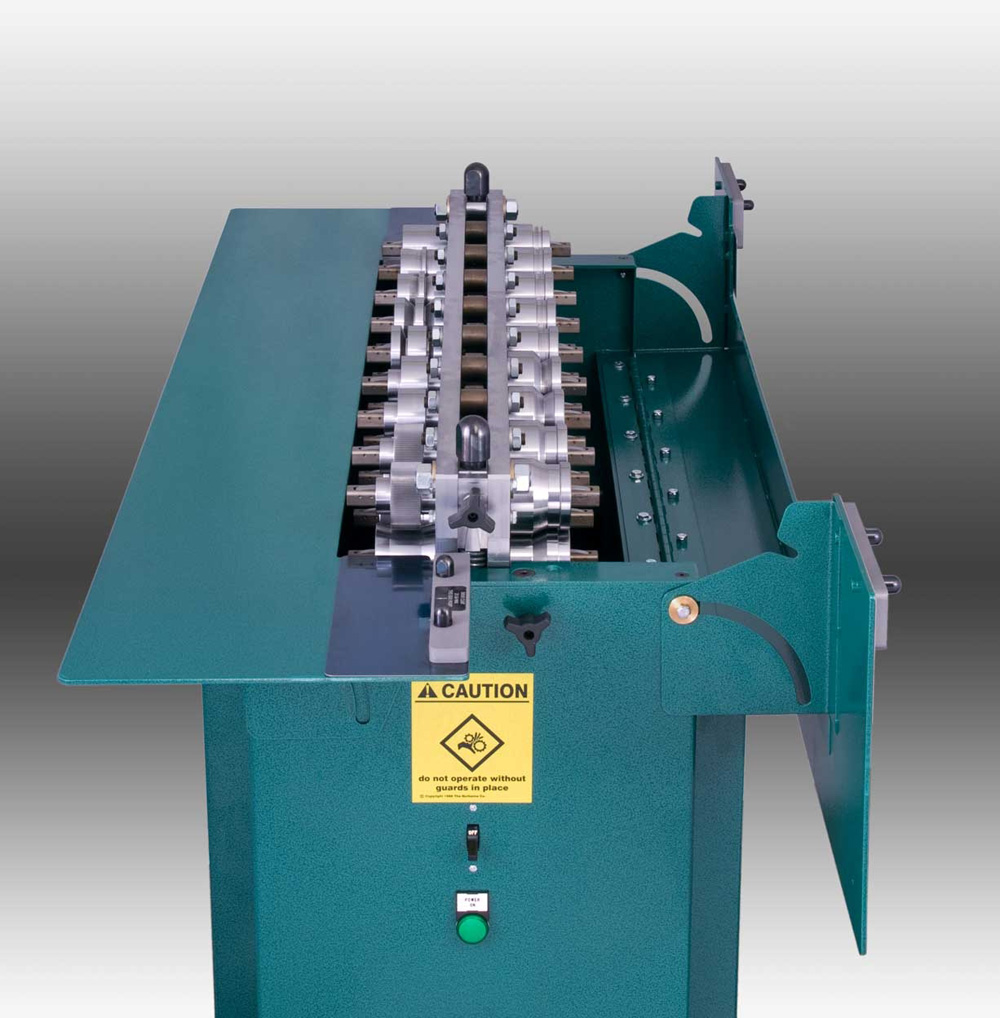

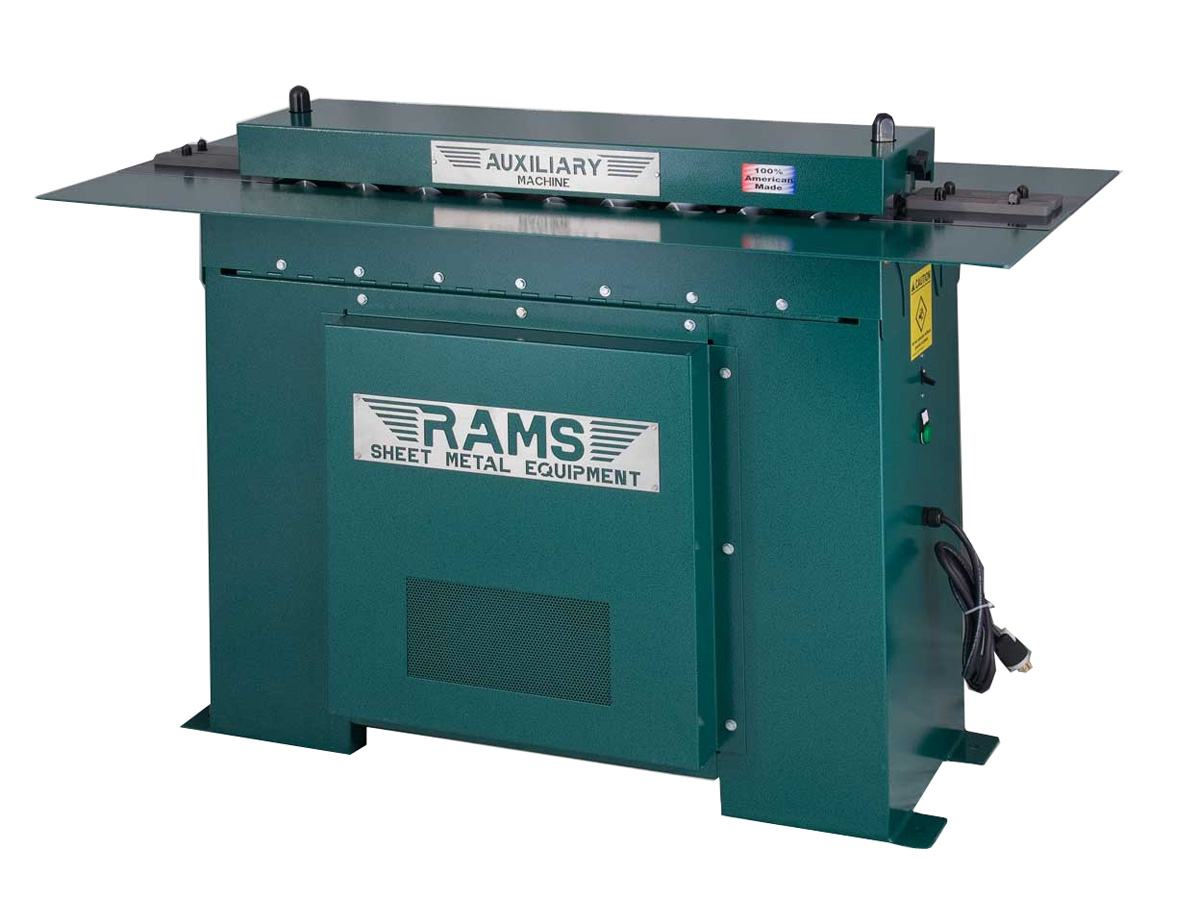

RAMS 2014 Auxiliary Machine

Specifications:

9 Station Roll Former / Double Sided

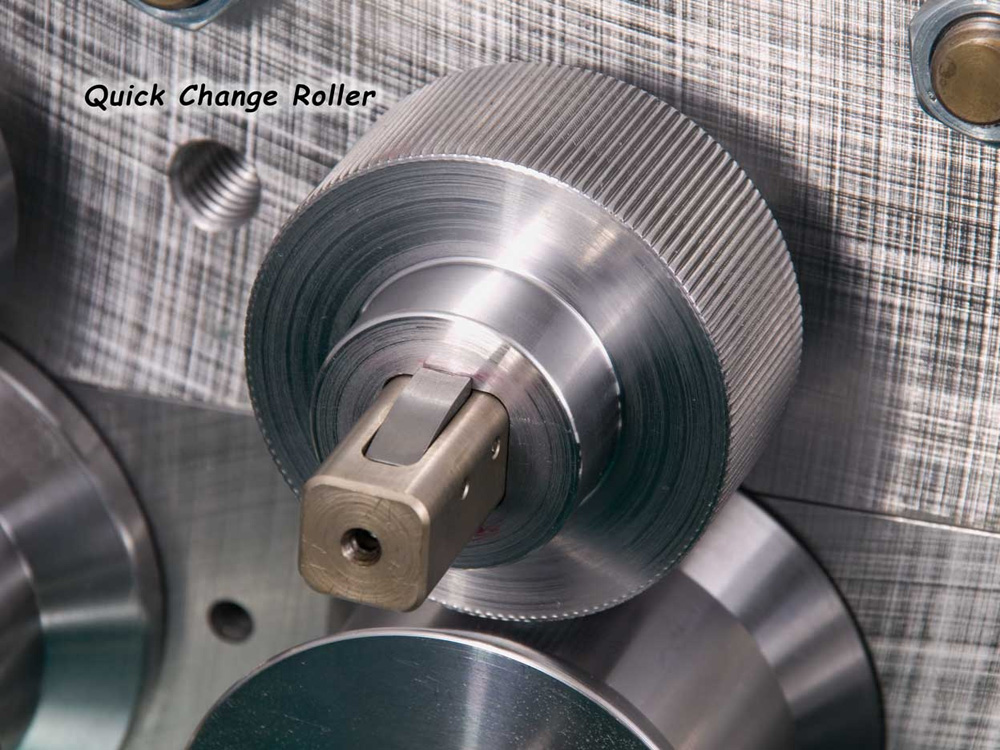

Quick Release Drive Shafts

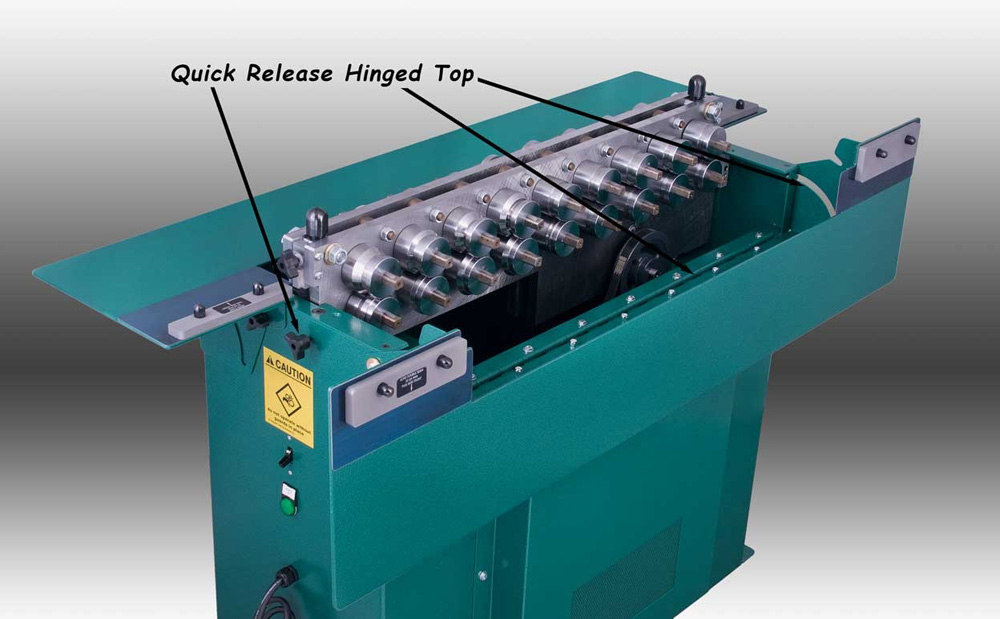

Hinged Table Top: 56” x 25”

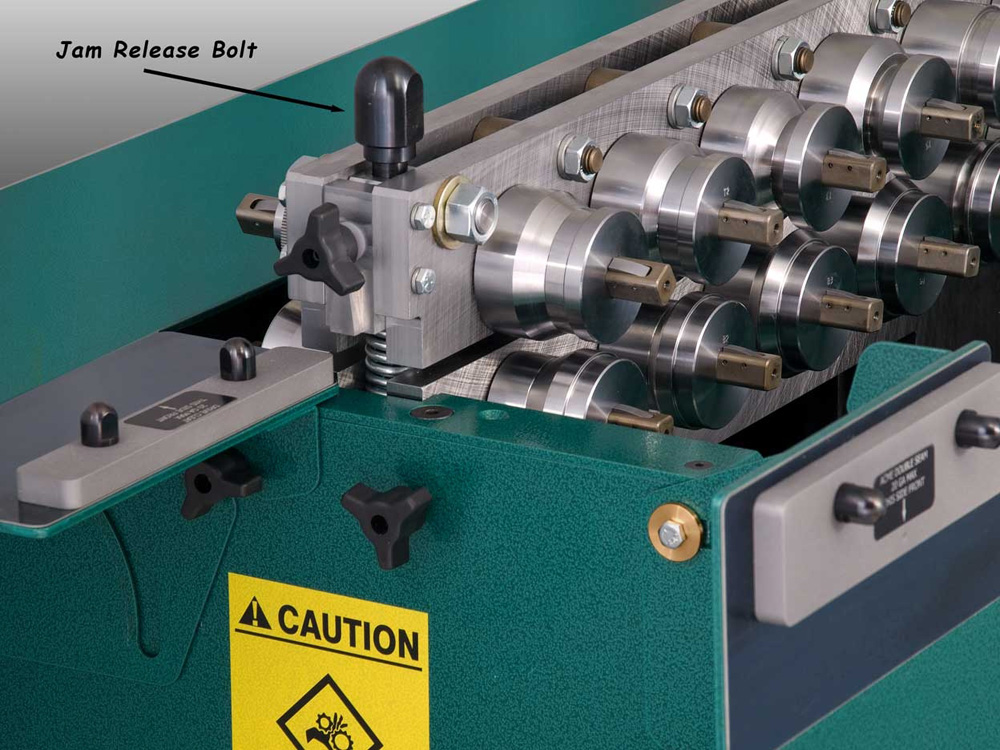

Quick Jam Clearing
3 hp Electric Motor 115/208-230V, 1.725 RPM
Approximate Speed: 50 FPM
Dimensions: 57”L x 26”W x 40”H
Torrington Needle Bearings
Hardened Steel Components throughout
Gears 4140 Heat treated to 62rc (Rockwell) and ground
Cabinet heavy gauge steel w/Hammertone Green Finish
Approximate Shipping weight: 600#
Additional Roll Sets weight: 60#

Part No.	Auxiliary Outboard Roll Sets	Material
RAMSAUX-1400	6 in 1 Tap-In	22-26 gauge
RAMSAUX-1600	ACME Double Seam	20-26 gauge
RAMSAUX-1800	Drive Cleat	20-26 gauge
RAMSAUX-2100	Male Button Lock	20-24 gauge
RAMSAUX-2200	Female Button Lock	20-24gauge


Click Image To Enlarge	Click Image To Enlarge	Click Image To Enlarge	Click Image To Enlarge

Click Image To Enlarge	Click Image To Enlarge	Click Image To Enlarge	Click Image To Enlarge


Drive Cleat RAMSAUX-1800	ACME Double Seam RamsAUX-1600	Female Button Lock RAMSAUX-2200	Male Button Lock RAMSAUX-2100	5/8" Standing Seam 6 in 1 Roll Form RAMSAUX-1400

1/4" Right Angle Flange 6 in 1 Roll Form RAMSAUX-1400	3/8" Right Angle Flange 6 in 1 Roll Form RAMSAUX-1400	1/2" Right Angle Flange 6 in 1 Roll Form RAMSAUX-1400	5/8" Right Angle Flange 6 in 1 Roll Form RAMSAUX-1400	5/8" T-Connect 6 in 1 Roll Form RAMSAUX-1400

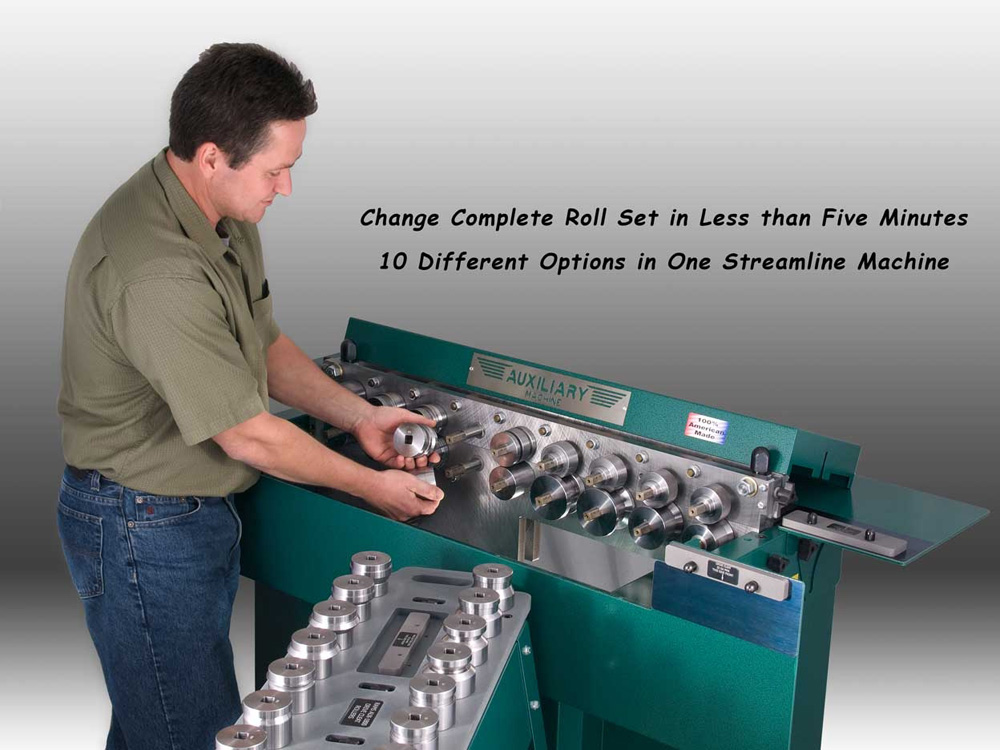

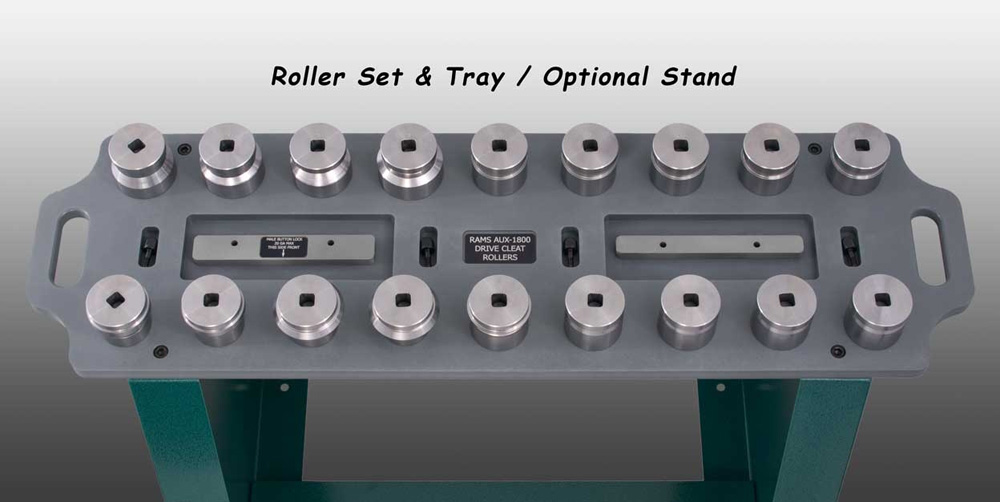

Auxiliary Outboard Roll Sets

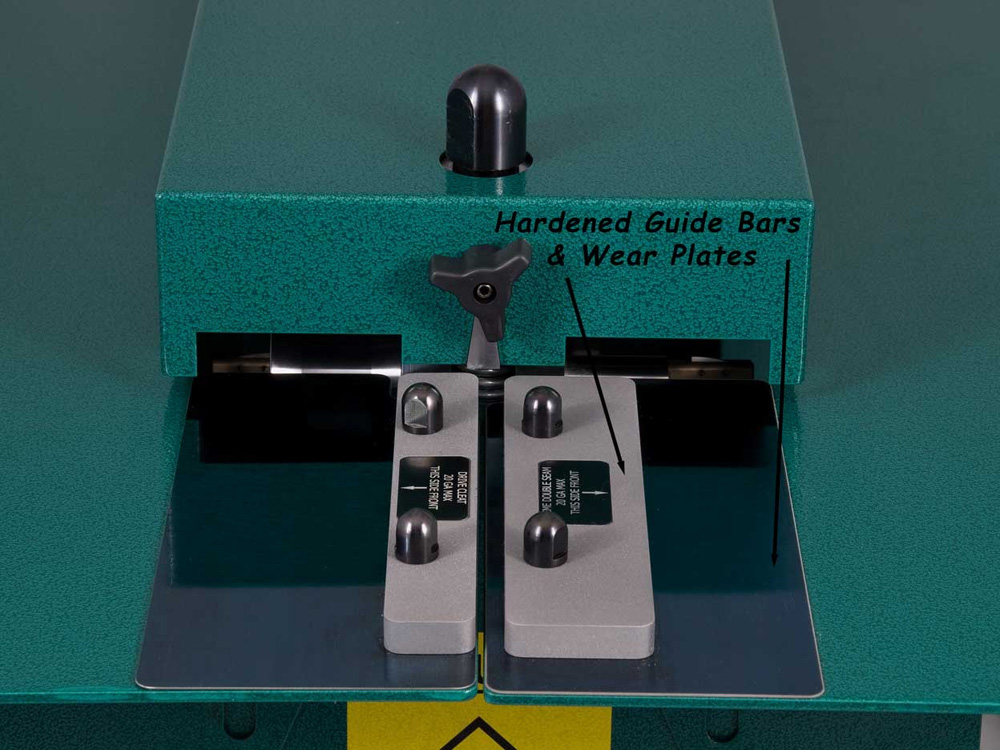

Inlet Guide Bar

Exit Guide Bar

Drive Cleat

AX-1014

AX-1017

2.15" From Rollers

1.64" From Rollers

6 in 1 Tap-In

AX-1015 For All Lock Forms

AX-1414 For All Lock Forms

5/8" T-Connect

2.063" From Rollers

2.147" From Rollers

5/8" Standing Seam

1.500" From Rollers

2.147" From Rollers

5/8" Right Angle Flange

1.063" From Rollers

2.147" From Rollers

1/2" Right Angle Flange

0.938" From Rollers

2.147" From Rollers

3/8" Right Angle Flange

0.813" From Rollers

2.147" From Rollers

1/4" Right Angle Flange

0.688" From Rollers

2.147" From Rollers

Male Button lock

AX-2118

AX-2113

0.938" Form Rollers

0.510" Form Rollers

Female Button Lock

AX-1014

AX-2213

2.100" Form Rollers
(Bar rotated 180° from drive cleat position)

0.860" Form Rollers

ACME Double Seam

AX-1018

AX-1013

1.125" Form Rollers

0.815" Form Rollers

1.043" Form Plate

1.353" Form Plate

RAMS-2014
$6,495.00
"Auxiliary Machine ==>> Call 800-458-3687 For Freight Rate, If Any (PC-020909)"

RAMS-AUX-1400
$1,550.00
"6 In 1 Tap-In ==>> Call 800-458-3687 For Freight Rate, If Any (PC-020909)"

RAMS-AUX-1600
$1,200.00
"ACME Double Seam ==>> Call 800-458-3687 For Freight Rate, If Any (PC-020909)"

RAMS-AUX-1800
$1,200.00
"Drive Cleat ==>> Call 800-458-3687 For Freight Rate, If Any (PC-020909)"

RAMS-AUX-2100
$1,350.00
"Male Button Lock ==>> Call 800-458-3687 For Freight Rate, If Any (PC-020909)"

RAMS-AUX-2200
$1,350.00
"Female Button Lock ==>> Call 800-458-3687 For Freight Rate, If Any (PC-020909)"
