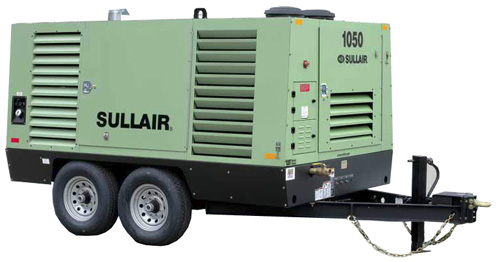

Rotary Screw Compressor
By Sullair, the pioneer in Rotary Screw Technology. |
Monitoring and Control System
The user friendly Control Panel (housed in a weather
tight enclosure) provides real time system information. |
COMPASS® Controller
The
Brains of the system monitors every aspect of the
compressor and engine.
|
Sullair AWF Compressor Fluid
Improved hot and cold weather lubrication. Longer
compressor fluid life. Extended airend warranty. |
|
COMPASS® Controller
Gauges and a LCD Graphic Display on the COMPASS®
Controller indicate:
-
discharge pressure
-
discharge temperature
-
ambient air temperature
-
separator restriction
-
aftercooler air temperature and louver activation if
equipped
-
engine speed
-
hours of operation
-
voltage
-
engine coolant temperature
-
engine coolant level
-
fuel level
-
fuel usage rate
-
fuel pressure
-
fuel temperature
-
percent engine load
-
engine air temperature, and
-
engine oil pressure
-
compressor and engine status
|
Indicator lights for:
-
low fuel
-
high compressor temperature
-
compressor shutdown and warning
-
engine shutdown and warning.
An engine diagnostic service port,
displayed diagnostic messages and retrievable shutdown
history includes all monitored system parameters at time
of shutdown, high/low selector switch and a rockertype
start switch are also provided, back lit switches and
gauges for night use, E-stop, and auto and remote start
capability.
Three Mounting Options
Highway towable tri-axle version
includes electric brakes, mechanical parking brake,
restraining tow chains and E-Z lube axle system. |
Four-wheel steerable mounting and less
running gear on mounting rails are also available.
All have tie down locations built into
frame
0 to 100% Capacity Control
Automatic inlet valve and unloaded
starting.
Two-Stage Dry-Type Filters
Filters incorporate safety elements and
are positioned to draw cool ambient air.
Complete Fluid Containment
Remote bulkhead drain valves for all
fluids. Quick connect fuel couplings to easily fuel from
a remote fuel tank.
|
Low Emission Engine Technology
Complies with Tier 3 and Stage 3
emission legislation.
Air End Warranty
5 year or 10,000 hour warranty when
continuously serviced at the recommended intervals with
Sullair AWF Compressor Fluid and filters.
Durable Powder Coat Finish
|
