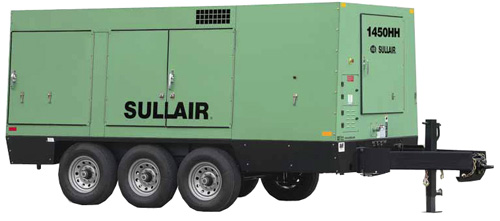

Rotary Screw Compressor
By Sullair, the pioneer in Rotary Screw Technology. |
Monitoring and Control System
The user friendly Control Panel (housed in a weather
tight enclosure) provides real time system information. |
COMPASS® Controller
The
Brains of the system monitors every aspect of the
compressor and engine.
|
Sullair AWF Compressor Fluid
Improved hot and cold weather lubrication. Longer
compressor fluid life. Extended airend warranty. |
|
COMPASS® Controller
Gauges and a LCD Graphic Display on the COMPASS®
Controller indicate:
-
discharge pressure
-
discharge temperature
-
ambient air temperature
-
separator restriction
-
aftercooler air temperature and louver activation if
equipped
-
engine speed
-
hours of operation
-
voltage
-
engine coolant temperature
-
engine coolant level
-
fuel level
-
fuel usage rate
-
fuel pressure
-
fuel temperature
-
percent engine load
-
engine air temperature, and
-
engine oil pressure
-
compressor and engine status
|
Indicator lights for:
-
low fuel
-
high compressor temperature
-
compressor shutdown and warning
-
engine shutdown and warning.
An engine diagnostic service port,
displayed diagnostic messages and retrievable shutdown
history includes all monitored system parameters at time
of shutdown, high/low selector switch and a rockertype
start switch are also provided, back lit switches and
gauges for night use, E-stop, and auto and remote start
capability.
Containment Frame
Heavy duty frame with complete fluid
containment. Bulkhead drain valves for all fluids are
provided.
|
Ample Padlockable Service Doors
-
Large front and side doors provide
access to air filters, engine and compressor.
-
Rear side service doors provide
access to fuel tank and batteries.
-
Serviceable components within easy
reach.
-
Routine maintenance is simplified.
-
Reduced downtime and service cost.
-
Service doors feature stainless
hinges and steel T-type door retainers.
0 to 100% Capacity Control
Automatic inlet valve and unloaded
starting.
Two-Stage Dry Type Air Filters
Filters incorporate safety elements and
are positioned to draw cool ambient air.
Three Mounting Options
Highway towable tri-axle version
includes electric brakes, mechanical parking brake,
restraining tow chains and E-Z lube axle system. |
Four-wheel steerable mounting and less
running gear on mounting rails are also available.
All have tie down locations built into
frame.
Low Emission Engine Technology
Complies with Tier 3 and Stage 3
emission legislation.
Air End Warranty
5 year or 10,000 hour warranty when
continuously serviced at the recommended intervals with
Sullair AWF Compressor Fluid and filters.
Quiet Operation
Meets US EPA Sound requirements of 76
dBA @ 7 meters. |
