Rotary Screw Compressor
Single-stage, fluid flooded, cast iron housing is
dimensionally stable, thick walled and machined to close
tolerances. |
Curbside Instrument Panel
Equipped with top quality gauges, circuit breaker,
idle warm-up valve, diagnostic shutdown indicator
system, and engine monitor system. |
Optional Four-Wheel Steerable Mounting
Improves mobility for off-road confined areas.
|
Sullair AWF Compressor Fluid
Improved hot and cold weather lubrication. Longer
compressor fluid life. Extended airend warranty. |
|
Ample Padlockable Service Doors
-
Large front and side doors provide
access to air filters, engine, compressor and tool
compartments.
-
Rear side service doors provide
access to fuel tank, batteries and swing-down
compressor fluid cooler.
-
Serviceable components within easy
reach.
-
Routine maintenance is simplified.
-
Reduced downtime and service cost.
-
Service doors feature stainless
hinges and steel T-type door retainers.
Three Mounting Options
-

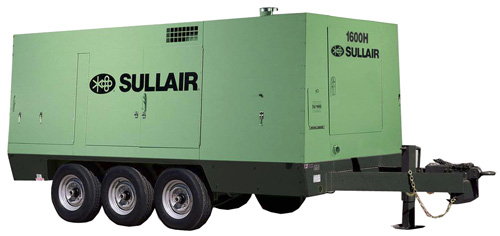

Highway towable tri-axle version
includes surge hydraulic brakes, mechanical parking
brake, restraining tow chains and E-Z lube axle
system.
-
Four-wheel steerable mounting and
less running gear on mounting rails are also
available.
-
All have tie down locations built
into frame.
|
0 to 100% Capacity Control
Electronic Engine Control
-
Electronic controls include a
diagnostic capability and an onboard computer that
can record historical events when engine is running.
-
Small readout screen on the
instrument panel where the diagnostic information
can be obtained.
Two-Stage Dry Type Air Filters
with Safety Element
Curbside Instrument Panel
-
Hinged, padlockable cover.
-
Mechanical gauges are used for air
pressure, compressor discharge temperature, air
filter maintenance indicators, and separator
maintenance indicator.
-
Engine Monitor System will display:
engine hours, engine RPM, voltage, coolant
temperature, engine oil pressure, percent load, fuel
rate and more.
|
Other Instrumentation Include
-
Measured shot ether start aid, fuel
level gauge, circuit breakers, and engine warning
and fault code lights.
-
High/Low pressure selector valve
allows
-
dual pressure capability without
making mechanical adjustment.
Diagnostic Shutdown Indicator System
-
For compressor: High discharge
temperature.
-
For engine: Low fuel level.
-
For additional diagnostics, by using
a
-
Caterpillar service tool that can
retrieve recorded engine parameters (power, engine
temperature...), the service technician can
determine what the engine was doing before, during
and after system malfunction.
Protective Shutdown Switches
-
Low engine oil pressure, high engine
water temperature, low water level, high compressor
temperature or low fuel level.
-
A protective circuit also prevents
starter engagement when machine is operating.
|
AWF Compressor Fluid
Low Emission Engine Technology
Air End Warranty
-
2 year standard warranty.
-
5 year or 10,000 hour warranty when
continuously serviced at the recommended intervals
with Sullair
-
AWF Compressor Fluid and filters.
Quiet Operation
Options
|
