The T-Cut
rebar cutter and bender tool by use of its revolutionary design
makes the work of rebar bending and rebar cutting significantly
easier and faster. Not only is the T-Cut easy to use, but it is
portable, too! With its lightweight construction and weighing
in at only 55 lbs., the T-cut can be taken to every jobsite.
The T-cut has
a bending capacity for rebar up to #5 (5/8 inch) rebar and will
bend to 180°
without removing the rebar
from bender assembly. This tool also has forged steel cutter
blades that will cut 40 and 60 grade rebar and includes a second
cutting slot for cutting #4 (1/2 inch) and smaller rebar.
Features at a
glance:
-
Revolutionary Design (as shown in
Figure 1-1 and 1-2)
-
Total
weight 55 lbs. mounted on a 2" x 8" x 66" board
-
Capacity
up to #5 rebar (5/8 inch)
-
Second
cutting slot for cutting #4 (1/2 inch) and smaller rebar
-
90 Day
warranty
-
Bends to
180°
without removing rebar
from bender assembly
-
For 40
and 60 grade rebar
-
Forged
steel cutter blades
-
All parts
made in the USA and are replaceable
-
Figures
2-1, 2-2, and 2-3 show the process of bending rebar with
our T-Cut machine
|
|

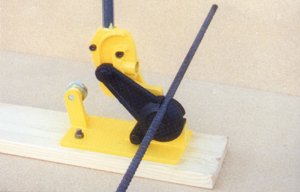

figure 1-1 |
|

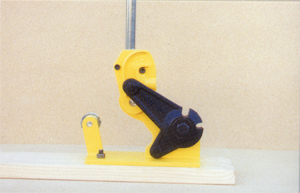

figure 1-2 |
|
