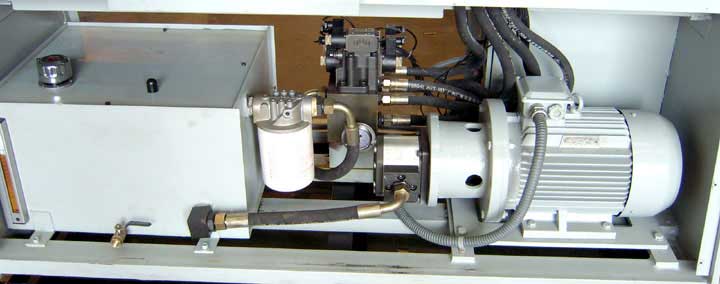

Ironworker has dual hydraulic cylinders for two man operation. Adjustable cylinder stroke with scale 5 work stations

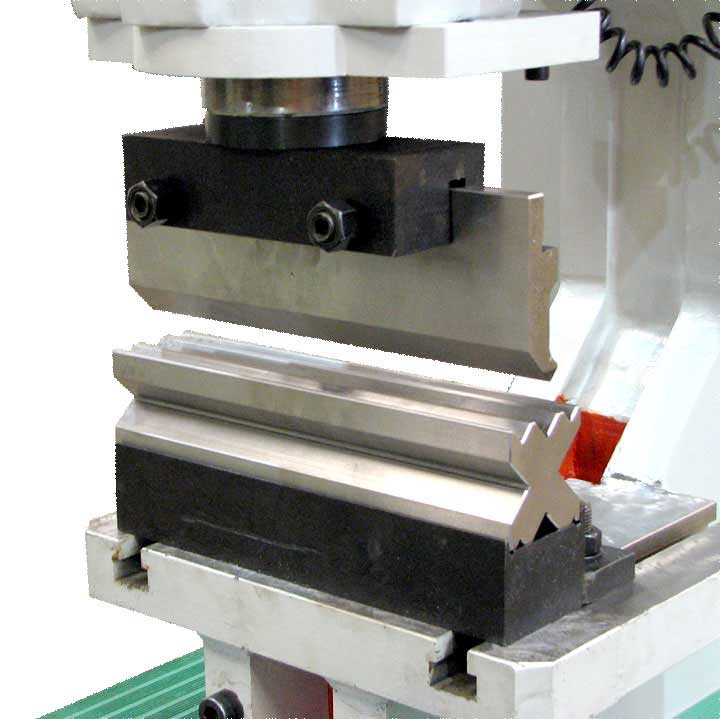

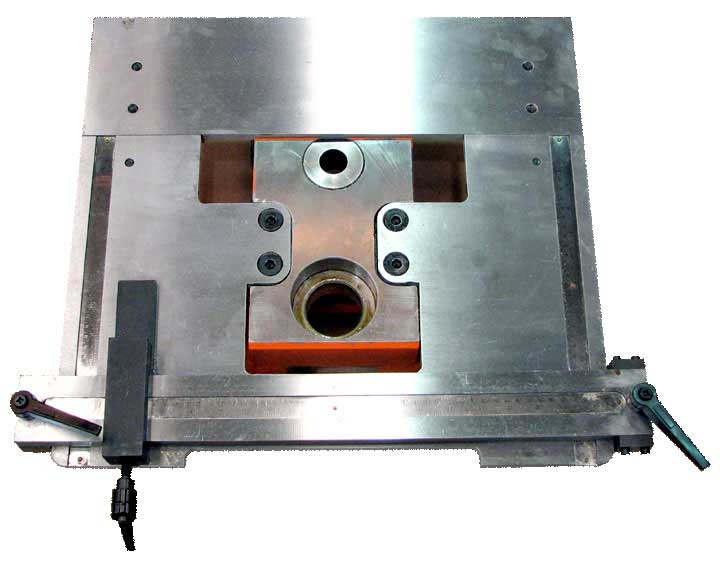

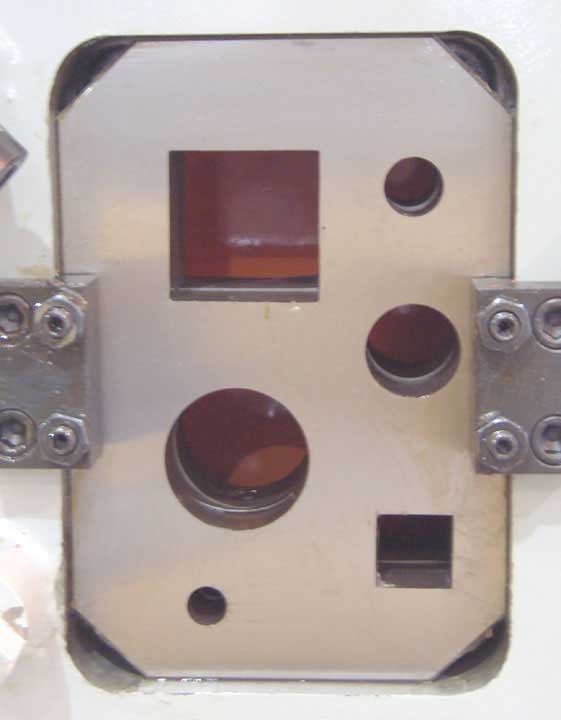

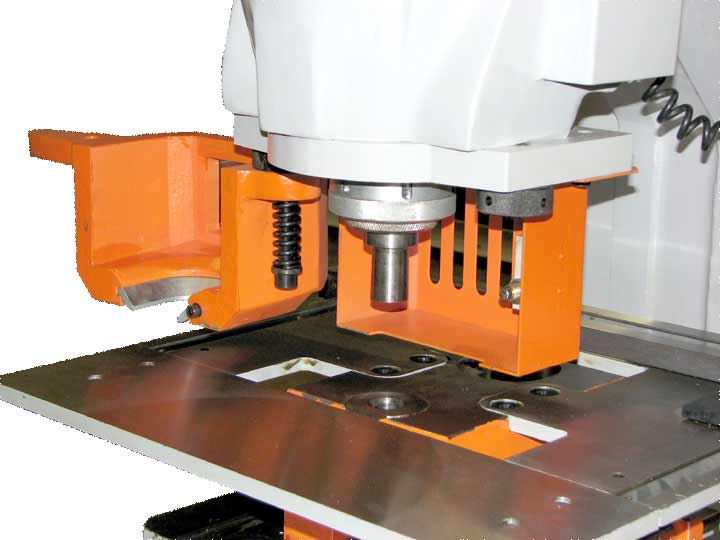

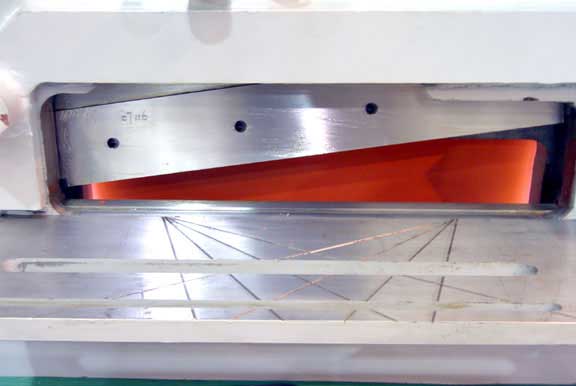

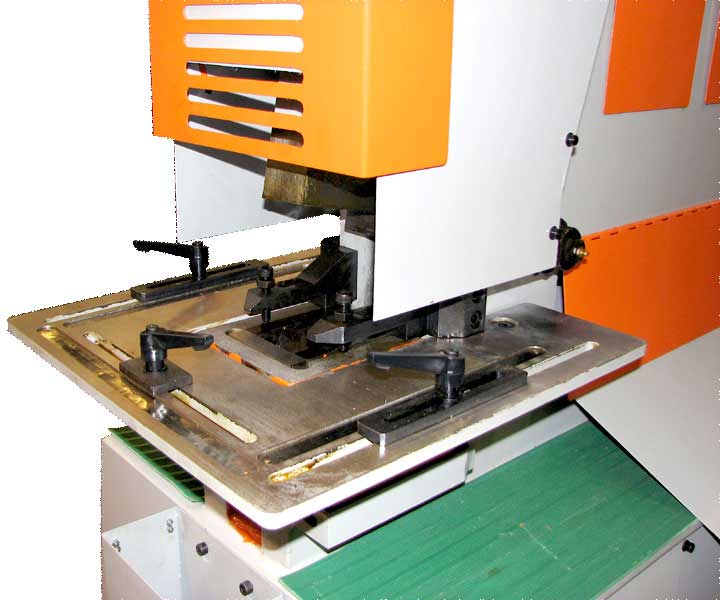

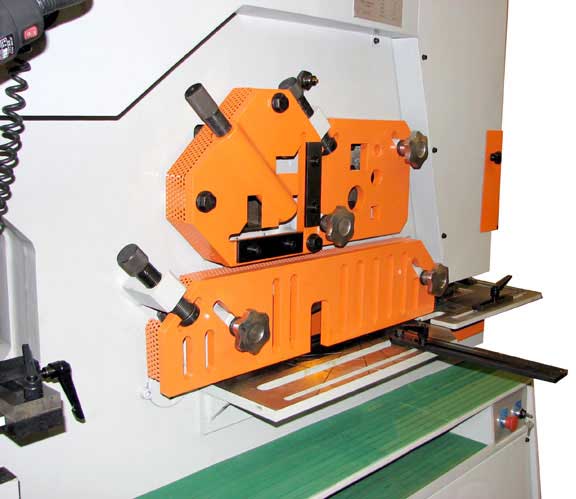

Large two piece gauging table for punch station Quick Change coupling nut and sleeve for rapid replacement of punch. It has a section shear for cutting angles at either at 90 degrees or 45 degrees. It has a bar shear for cutting round and square bar. 2 movable foot pedals. Electrically interlocked safety guard for notching station, Magnetic light.

Click below to download the specification chart

USHI-66-DO

USHI-90-DO

USHI-125-DO

USHI-155-DO


Click image above to enlarge

SPECIFICATIONS
Model	USHI-66-DO	USHI-90-DO	USHI-125-DO	USHI-150-DO
Punch
Punch Tonnage	66	90	125	155
Punching Thickness	5/8"	3/4"	1"	1 1/4"
Punching Diameter	1 1/4"		1 1/2"
Throat Depth	12"	14"	16"	24"
Stroke Length	0-3 1/8"
Flat Bar Shear
Max. Thickness	12" x 5/8"	14" x 3/4"	14" x 1"	14" x 1 1/4"
Max. Length	16" x 5/16"	18" x 5/8"	24" x 5/8"	24" x 3/4"
Blade Length	16"	19"	24"
Angle Shear
Capacity 90 Degrees	5" x 5" x 3/8"	6" x 6" x 1/2"	6" x 6" x 5/8"	7" x 7" x 5/8"
Capacity 45 Degrees	2" x 2" x 1/4"	2" x 2" x 3/8"	3" x 3" x 1/4"	3" x 3" x 5/16"
Bar Shear
Round	1 3/4"	2"	2 3/8"	2 1/2"
Square	1 5/8"	2"	2 1/8"
Notcher
Thickness	3/8"	1/2"		5/8"
Width	2 1/4"			2 3/8"
Depth	4"
Motor	7.5 HP	10 HP	15 HP	20 HP
Weight	3,527 lbs	5,260 lbs	10,560 lbs	14,960 lbs
LxWxH	64" x 28" x 69"	73" x 35" x 74"	92" x 37" x 82"	105" x 40" x 90"
Oil Capacity	20 gal	25 gal	33 gal	64 gal
