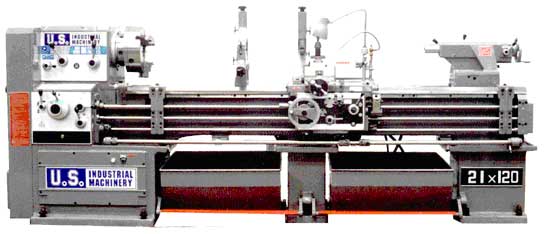

CAPACITIES: |
|
Swing Over Bed |
21" |
|
Swing Over Cross Slide |
12.5" |
|
Swing Over Gap |
29" |
|
Length of Gap |
15.5" |
|
Distance Between Centers |
120" |
|
CARRIAGE & APRON: |
|
Cross Slide Travel |
11" |
|
Top
Slide Travel |
5.5" |
|
DRIVE & MOTORS: |
|
Main
Drive Motor |
10
H.P. |
|
Coolant Pump Motor |
90 W |
|
Rapid Travel |
60 W |
|
|
HEADSTOCK: |
|
Spindle Speeds (Number) |
12 |
|
Spindle Speeds (Range) |
22-1500 RPM |
|
Hole
Thru Spindle |
4.125” |
|
Spindle Nose Type |
D1-8
Camlock |
|
Spindle Taper |
1:16 |
|
SHIPPING DATA: |
|
Overall Width |
52" |
|
Overall Height |
72" |
|
Overall Length |
189" |
|
Shipping Weight |
9702
lbs |
|
TAILSTOCK: |
|
Quill Diameter |
3" |
|
Quill Taper |
MT5 |
|
Quill Travel |
8" |
|
|
GEARBOX: |
|
Threads Per Inch (#) Range |
(58)
92-3/4 T.P.I. |
|
Metric Threads (#) Range |
(35)
0.25-23 mm |
|
Module Threads (#) Range |
(26)
0.25-115 mm |
|
Diametral Pitch (#) Range |
(56)
184-1 ½ DP |
|
Long. Feeds (#) Range |
(56)
0.0235-2.84 mm/r |
|
Cross Feeds (#) Range |
(56)
0.012-1.42 mm/r |
|
Leadscrew Dia./Range |
1.37"/4 T.P.I. |
|
BED: |
|
Width of Bed |
14" |
|
