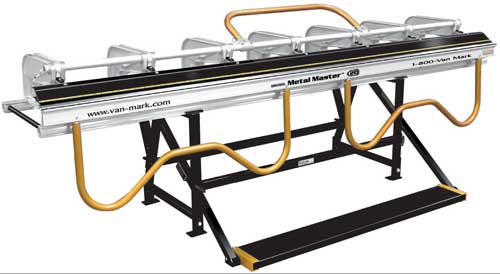

Van-Mark Metal Master 20


Model IM1054
Self-adjusting Master Stand included with all Industrial Metal Master 20 model brakes listed

Over a quarter century ago, Van Mark introduced the worlds first cam-locking system in a portable brake. Through time it has proven to be the strongest and most reliable locking mechanism. Now Van Mark has done it again with our new Metal Master 20™ incorporating the best locking system with the deepest throat in the portable brake industry. The Industrial Metal Master 20™ & Metal Master 20™ come with the latest in computer-aided design and manufacturing to provide the best one-stop-shop for all your job site bending, from “W” style valley-pan & rake edges, to soffits & roof flashings, including wide hip and ridge cap, HVAC duct and plenum work, just to name a few.

Features:

  • Strongest computer engineered castings for unmatched strength

  • Depends throat available for working with wider materials

  • New reinforced top locking bar for better clamping force

  • Increased bending radius, make 180° hem bends easier that ever

  • Adjustable clamping jaws with the largest opening in its class

  • Ergonomic heavy-duty bending handles for improved leverage

Throat Depth 20 3/8"
Material Industrial Contractor Commercial
Aluminum 0.050 0.032 0.40
Galv. Steel 22 ga 26 ga 24 ga
Painted Steel Grade D 24 ga 26 ga 24 ga
Copper 32 oz 24 oz 32 oz
Zinc Alloy 0.050 0.032 0.040
Stainless Steel 24 ga 26 ga 26 ga

Capacities are based on standard metal properties.

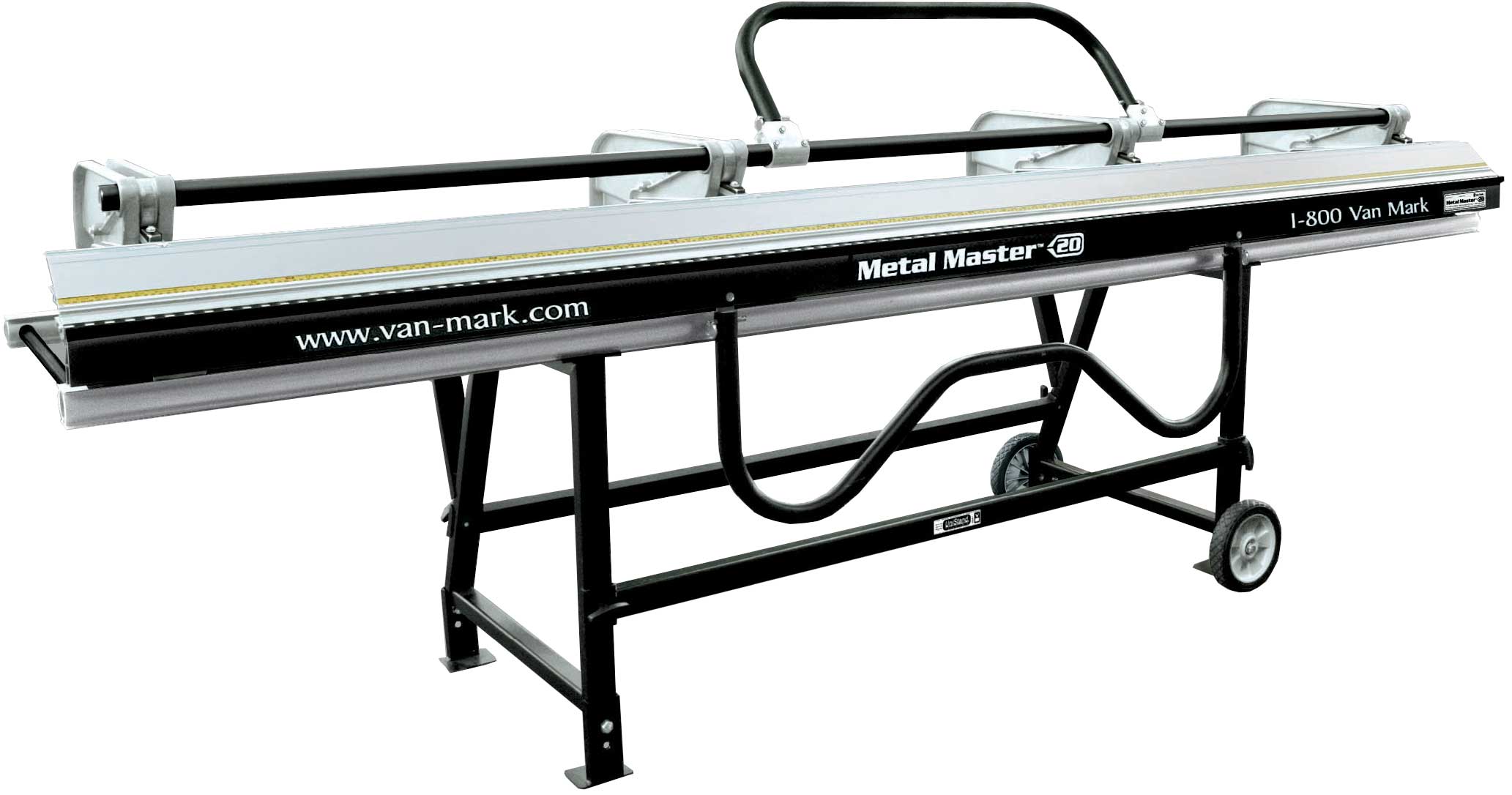

Model MM1050 shown with optional UniStand USA2
Industrial Metal Master 20 Specifications
Model Length "C" Weight
IM654 6'6" (2.0m) 5 ea 201 (91.2kg)
IM854 8'6" (2.6m) 5 ea 211 (95.7kg)
IM1054* 10'6" (3.2m) 7 ea 259 (117.5kg)
IM1254** 12'6" (3.8m) 9 ea 315 (142.9kg)
IM1454** 14'6" (4.4m) 10 ea 340 (154.2kg)
* Includes dual bending handles
** Includes dual bending handles and locking handles
Contractor Metal Master 20 Specifications
Model Length "C" Weight
MM200 2'0" (0.6m) 2 ea 50 (22.7kg)
MM450 4'6" (1.4m) 2 ea 76 (34.5kg)
MM650 6'6" (2.0m) 3 ea 101 (45.8kg)
MM850 8'6" (2.6m) 3 ea 119 (54.0kg)
MM1050 10'6" (3.2m) 4 ea 148 (67.1kg)
MM1250* 12"6" (3.8m) 5 ea 189 (85.7kg)
* Includes dual bending handles
** Includes dual bending handles and locking handles
Commercial Metal Master 20 Specifications
Model Length "C" Weight
MM651 6'6" (2.0m) 4 ea 116 (52.6kg)
MM851 8'6" (2.6m) 4 ea 134 (60.8kg)
MM1051* 10'6" (3.2m) 5 ea 169 (76.7kg)
MM1251** 12'6" (3.8m) 6 ea 204 (92.5kg)
MM1451** 14'6" (4.4m) 7 ea 219 (99.3kg)
* Includes dual bending handles
** Includes dual bending handles and locking handles

Note : The difference between the Contractor & Commercial Grade Van Mark Brakes is that the Commercial Brakes have more "C" Brackets therefore
making the Commercial Models a more Heavy Duty unit for extreme work environments


VANIM654
$2,999.50 $2,494.38
6' Metal Master INDUSTRIAL GRADE - - Includes Stand >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANIM854
$3,299.50 $2,743.86
8' Metal Master INDUSTRIAL GRADE -  - Includes Stand >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANIM1054
$3,799.50 $3,159.66
10' Metal Master INDUSTRIAL GRADE -  - Includes Stand >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANIM1254
$4,299.50 $3,575.46
12' Metal Master INDUSTRIAL GRADE -  - Includes Stand >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANIM1454
$4,799.50 $3,991.26
14' Metal Master INDUSTRIAL GRADE -  - Includes Stand >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANMM651
$1,999.50 $1,662.78
6' Metal Master COMMERCIAL GRADE -  Same as the CTR Brakes w/Additional Castings >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANMM851
$2,199.50 $1,829.10
8' Metal Master COMMERCIAL GRADE -  Same as the CTR Brakes w/Additional Castings >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANMM1051
$2,499.50 $2,078.58
10' Metal Master COMMERCIAL GRADE -  - Same as the CTR Brakes w/Additional Castings >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANMM1251
$2,899.50 $2,411.22
12' Metal Master COMMERCIAL GRADE -   Same as the CTR Brakes w/Additional Castings >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANMM1451
$3,399.50 $2,827.02
14' Metal Master COMMERCIAL GRADE -   Same as the CTR Brakes w/Additional Castings >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANMM200
$899.50 $764.65
2' Metal Master CONTRACTOR GRADE -  >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANMM450
$1,199.50 $997.50
4' Metal Master CONTRACTOR GRADE -  >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANMM650
$1,499.50 $1,246.98
6' Metal Master CONTRACTOR GRADE -  >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANMM850
$1,699.50 $1,413.30
8' Metal Master CONTRACTOR GRADE -  >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANMM1050
$1,899.50 $1,579.62
10' Metal Master CONTRACTOR GRADE -  >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANMM1250
$2,199.50 $1,829.10
12' Metal Master CONTRACTOR GRADE -  >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"


VANUSA2
$359.00
"Unistand >>> FREE Freight ONLY When Ordered with a Van Mark Brake, See UPS Chart if otherwise Ordered (PC090809)"
