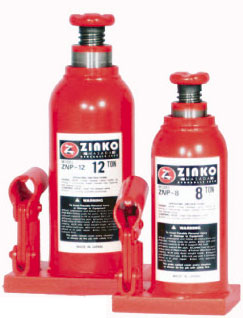

Bottle Jack, 2 - 22 ton,
steel base
A Powerful heavy-duty jack that is ideal for use in the automotive,
machinery and construction industryFeatures
- Welded steel construction throughout - reduces metal fatigue
allowing for a longer use life
- 5/8" thick steel base design for special application
- Can be used in upright, angle and horizontal position
- Casing, cylinder and base are joined by electric welding for
greater strength and are leak proof. Needle valve allows for
controlled lowering of the ram
- Safety Valve device protects hydraulic system from overload
damage
|
|
Specifications |
|
Model |
Capacity Tons |
Min. Ht. (in) |
Max. Ht. (in) |
Ram Lift (in) |
Screw Ext. (in) |
Base Area (in) |
Ship Wt. (lbs) |
| ZNP-2 |
2 |
6 3/4 |
13 1/8 |
4 1/2 |
2 |
2 1/2 x 3 1/4 |
4 |
|
ZNP-3 |
3 |
7 1/2 |
14 3/8 |
4 1/2 |
2 3/8 |
2 7/8 x 3 1/2 |
5 |
| ZNP-4 |
4 |
7 1/2 |
14 7/8 |
5 |
2 3/4 |
3 x 4 1/4 |
6 |
|
ZNP-5 |
5 |
7 1/2 |
15 1/8 |
5 |
2 3/4 |
3 1/4 x 4 1/2 |
7 |
| ZNP-8 |
8 |
7 1/8 |
15 3/8 |
4 3/4 |
2 3/4 |
3 1/2 x 4 1/2 |
10 |
|
ZNP-12 |
12 |
9 1/2 |
18 1/2 |
5 7/8 |
3 1/8 |
4 1/8 x 5 |
16 |
| ZNP-17 |
17 |
10 3/8 |
20 |
6 1/2 |
3 1/8 |
4 1/4 x 5 1/2 |
21 |
|
ZNP-22 |
22 |
10 5/8 |
16 7/8 |
6 1/4 |
-- |
5 x 7 1/8 |
27 |
|
