The Jet AP-Series Arbor Presses Ton
have a 2 Year warranty
-
ARBOR PRESSES
-
For all production and assembly applications
-
Precision cut steel rams and pinions for accurate operation
-
Tables and slotted table-plates are flat and parallel to provide accurate support
|
Detailed Specifications
|
|
Part Number
|
333605
|
|
Ram Travel (in.)
|
3-1/2
|
|
Arbor Press Height (in.)
|
10
|
|
Base Size (in.)
|
4 x 9-1/2
|
|
Brand
|
Jet
|
|
Capacity over Table (in.)
|
4
|
|
Diameter of Work (in.)
|
6-5/8
|
|
Height
|
10.9 inch
|
|
Length
|
9.8 inch
|
|
Model Number
|
AP-0
|
|
Net Weight
|
19 pound
|
|
Ram Bore (in.)
|
3/8
|
|
Size of Ram Face (in.)
|
3/4 x 7-7/8
|
|
Width
|
6.3 inch
|
The Jet AP-Series Arbor Presses Ton
have a 2 Year warranty
-
ARBOR PRESSES
-
For all production and assembly applications
-
Precision cut steel rams and pinions for accurate operation
-
Tables and slotted table-plates are flat and parallel to provide accurate support
|
Detailed Specifications
|
|
Part Number
|
333610
|
|
Ram Travel (in.)
|
4-1/4
|
|
Arbor Press Height (in.)
|
12
|
|
Base Size (in.)
|
5 x 10-3/4
|
|
Brand
|
Jet
|
|
Capacity over Table (in.)
|
5
|
|
Diameter of Work (in.)
|
8
|
|
Height
|
-
|
|
Length
|
-
|
|
Model Number
|
AP-1
|
|
Net Weight
|
26.5 pound
|
|
Ram Bore (in.)
|
3/8
|
|
Size of Ram Face (in.)
|
1 x 9-1/8
|
|
Width
|
-
|
The Jet AP-Series Arbor Presses Ton
have a 2 Year warranty
-
ARBOR PRESSES
-
For all production and assembly applications
-
Precision cut steel rams and pinions for accurate operation
-
Tables and slotted table-plates are flat and parallel to provide accurate support
|
Detailed Specifications
|
|
Part Number
|
333620
|
|
Ram Travel (in.)
|
5-5/8
|
|
Arbor Press Height (in.)
|
16-1/4
|
|
Base Size (in.)
|
6-3/8 x 17
|
|
Brand
|
Jet
|
|
Capacity over Table (in.)
|
7-3/8
|
|
Diameter of Work (in.)
|
11-3/8
|
|
Height
|
10 inch
|
|
Length
|
18 inch
|
|
Model Number
|

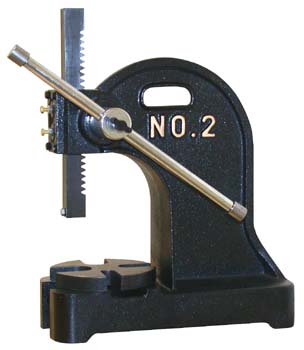

AP-2
|
|
Net Weight
|
61 pound
|
|
Ram Bore (in.)
|
1/2
|
|
Size of Ram Face (in.)
|
1-1/4 x 13
|
|
Width
|
22 inch
|
The Jet AP-Series Arbor Presses Ton
have a 2 Year warranty
-
ARBOR PRESSES
-
For all production and assembly applications
-
Precision cut steel rams and pinions for accurate operation
-
Tables and slotted table-plates are flat and parallel to provide accurate support
|
Detailed Specifications
|
|
Part Number
|
333630
|
|
Ram Travel (in.)
|
7-1/2
|
|
Arbor Press Height (in.)
|
21-1/2
|
|
Base Size (in.)
|
8-1/2 x 18
|
|
Brand
|
Jet
|
|
Capacity over Table (in.)
|
11-3/8
|
|
Diameter of Work (in.)
|
10-3/4
|
|
Height
|
12 inch
|
|
Length
|
20 inch
|
|
Model Number
|
AP-3
|
|
Net Weight
|
97 pound
|
|
Ram Bore (in.)
|
1/2
|
|
Size of Ram Face (in.)
|
1-1/2 x 18
|
|
Width
|
24 inch
|
The Jet AP-Series Arbor Presses Ton
have a 2 Year warranty
-
ARBOR PRESSES
-
For all production and assembly applications
-
Precision cut steel rams and pinions for accurate operation
-
Tables and slotted table-plates are flat and parallel to provide accurate support
|
Detailed Specifications
|
|
Part Number
|
333650
|
|
Ram Travel (in.)
|
9-1/8
|
|
Arbor Press Height (in.)
|
33-7/8
|
|
Base Size (in.)
|
9-7/8 x 26
|
|
Brand
|
Jet
|
|
Capacity over Table (in.)
|
18
|
|
Diameter of Work (in.)
|
17
|
|
Height
|
35 inch
|
|
Length
|
29.5 inch
|
|
Model Number
|
AP-5
|
|
Net Weight
|
305 pound
|
|
Ram Bore (in.)
|
1/2
|
|
Size of Ram Face (in.)
|
2 x 27-1/2
|
|
Width
|
17 inch
|
|
