Bend and Cut Rebar on the Job
ReBarRunnerTM

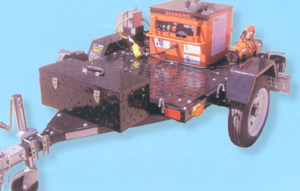

Trailer Unit-Model TUBC-25X
This is the ultimate portable rebar fabrication unit. It simply
combines the very popular DBD-25X rebar bender and the DC-25X rebar cutter both
together and mounted on a customized utility trailer. The advantage to owning
this unit is production, the bender table is at the ideal working height and
both the bender and cutter can be used hands free with the standard foot pedal
control. The ReBarRunnerTM
trailer unit comes standard with a weather protected electrical control box, 24"
storage tool box, 4" heavy duty workshop vise, one front jack stand two rear
stabilizer jack stands, 2" diameter ball hitch coupler, running lights, wiring
harness, safety chains, 4 gauge diamond thread steel bed, 40" x 50" bed size, a
space for securing and transporting up to a 6KW gasoline generator, four
tie-down hooks and straps, two 4.80-12 DOT approve tires, rust-resistant powder
coat finish and the DBD-25X rebar bender and DC-25X rebar cutter.
|
Specifications |
| Model |
DC-25X Rebar Cutter |
DBD-25X Rebar Bender |
| Rebar Cap. |
Grade 60 |
Up to 1" (#8) |
Grade 60 |
Up to 7/8" (#7) |
| Power Supply |
Electric motor 115V,
50/60 Hz-12A |
| Weight |
500lbs without
generator, trailer max. capaciy is 1400lbs |
| Dims. (k x w x h) |
Overall 87.5" x 52.75" x
36" with stabilizer jacks down |
|
