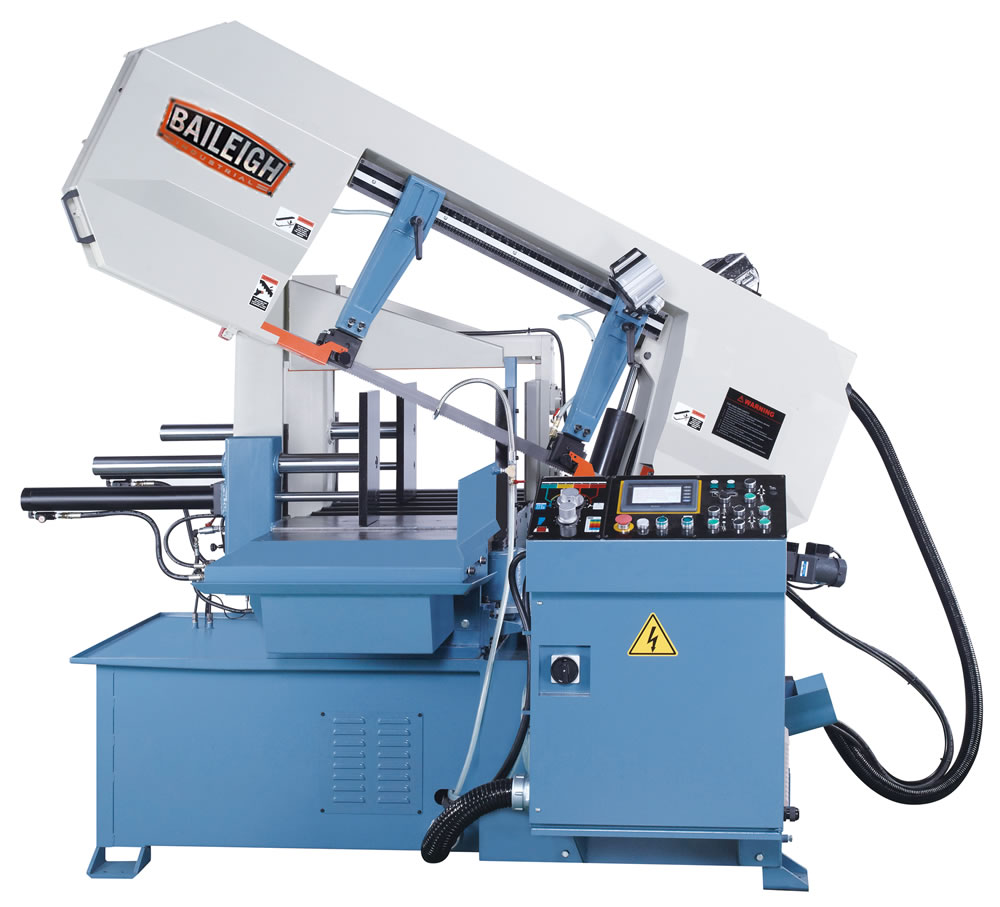

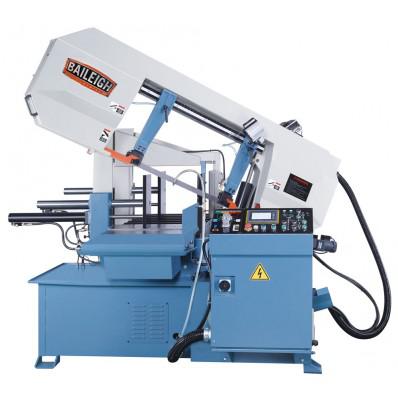

Baileigh BS-24A Automatic Pivot Type Band Saw



Band Saw BS-24A

Made in Taiwan

pdf logo  Horizontal and Vertical Band Saw Catalog

When looking for a production band saw, one must look at all the ways that the saw can save money over the current unit.  Baileigh Industrial took that into consideration when designing the BS-24A automatic band saw.   The BS-24A has been constructed using only industrial grade components and materials and will stand up to years of grueling service in any demanding fabrication shop or machine shop.

The BS-24A is a 220 volt three phase fully automatic band saw that has an 18 inch round capacity at 90 degrees but can miter up to 45 degrees if it is needed.  A Delta inverter drives an industrial sized 5 hp in order to turn the massive 1-1/2 inch blade. The inverter allows the operator to adjust speed on the fly from 65 to 279 feet per minute.  This adjustment saves blade life as well as increases the quality of the cut.

Being an automatic band saw the BS-24A is at home cutting a single piece of material or complete bundles with its heavy duty hydraulic bundling device that also acts as the feed system. The feed system that is uses encoders for precise material placement.  Operation of the BS-24A is very simple and uses a mix of standard control knobs and buttons as well as a user friendly touch screen programmer.  The programmer lets the operator input things like cut lengths, number of cuts, and allows different settings for each program.  The standard controls are for changing things like bow height, descent and blade speed.   The BS-24A can be run in automatic and manual modes as well.

Standard features on the BS-24A automatic band saw are broken blade shut off, patented blade tension devise, and a halogen work light. For more information on the BS-24A automatic band saw contact a  representative.



Specifications
Model BS-24A
Return Hydraulic
Miter Adjustment Swivel Head
Miter Angle 0 - 45 degree
Table Height 32.3 inch
Capacity Rectangular 90 x 45 degree 15 x 24 inch
Capacity Round 90 x 45 degree 18 x 15 inch
Chip Removal Hydraulic Auger
Capacity Square 90 x 45 degree 18 x 15 inch
Blade Guide Carbide x Roller
Blade Motor 5 hp
Blade Size (H x W x L) 1.5 x .051 x 209.85 inch
Blade Speed (fpm) 65 – 279 (Variable Speed)
Material Clamping Bundling Hydraulic
Material Feed Hydraulic
Hydraulic Motor 1 hp
Descent Control Pressure Assist Hydraulic
Power Manual
Shipping Weight 3,900 lbs.
Shipping Dimensions 109 x 90 x 77 inch



No accessories listed

BAIBS-24A mfg. item #: BS-24A
$38916.32   msrp $41845.50
220 VOLT 3 PHASE AUTOMATIC METAL CUTTING BAND SAW W/HEAVY DUTY BUNDLING SYSTEM AND 5HP MOTOR
LIMITED QUANTITY PROMOTION AT THIS PRICE - CALL TODAY FOR AVAILABILITY
lease to own for as little as:$778 per month! 23
Call for freight quote on this item or we will confirm freight charges before shipping.1
