Baileigh CNC Router Tables



CNC router table

CNC router table

CNC router table

WR-23 CNC Router Table WR-84V CNC Router Table WR-105V-ATC CNC Router Table



CNC router table

CNC Router Table WR-23

1008400

The WR-23 CNC router from Baileigh Industrial is great for sign making, 3D embossing and even acrylic cutting.  This great little table is designed after our very popular metal cutting plasma tables.  It features an extremely rigid fully welded frame with ball screw X and Y axis movements.  There are also square slide ways to keep everything in alignment.  The table itself runs on 220 volt single phase and uses stepper motors to move at a maximum speed of 100mm per second.

Controlling the WR-23 is easy as it uses a USB interface in conjunction with a hand held controller.  It comes standard with cam software that allows you to set up whatever you like.  In order to get the best cut available the variable speed spindle turns at an amazing 24000 rpm. When spinning at that speed a dust collector is also fitted to keep the shop clean and free from debris.   And so that tooling is easy to find the WR-23 CNC router table includes two collets; 1/8 and 1/4 inch.

Specifications
Model WR-23
Actual Working Area 39 X 31.5 inch
Rpm 0-24000
Z Axis Stroke 3.1 inch
Maximum Moving Speed (Inches Per Minute) 236
Maximum Engraving Speed (Inches Per Minute) 157
Repostion Accuracy .0001 inch
Tool Diameters 1/8 and 1/4 inch
Power 220V Single Phase
Length 48 inch
Width 40 inch
Height 45 inch
Weight (lbs) 650

specifications subject to change without notice.

CNC router table

CNC Router Table WR-84V

With a welded steel frame, the WR-84V is built to last. Unlike many competing tables, this model ships fully assembled and comes with software, tooling, and a dust shroud.

  • 4 x 8 foot table to fit common bulk industrial material sizes.
  • Perfect for solid wood processing, making closet doors, furniture, signs, and much more.
  • 0 to 18,000 rpm variable spindle speed range.
  • 7.4 hp spindle has the power to cut hardwoods quickly and precisely.
  • Spindle is air-cooled to prevent overheating, prolong the machines lifespan, keep it producing high-quality cuts.
  • 15,000 mm per minute maximum engraving or travel speed.
  • Solid steel gantry can tackle hardwoods at high speeds without flinching.
  • Stepper motors with square rails ensure smooth movement along the X, Y, and Z axes.
  • Use the handheld digital controller to move the spindle, adjust the speed, and go through your design.
  • Comes standard with software that allows you to set up almost any kind of design. (Details below.)
  • Upload your cut pattern to the table with a USB drive.
  • Rack and pinion mechanism holds up over long periods of heavy use and allows for more fluid and precise movement than a ball and screw mechanism.
  • 4 collets accept any standard tooling profiles with 1/8, 1/4, 3/8, and 1/2 inch bit sizes.
  • Includes 10 different tooling profiles.
  • Steel T-clamps hold the material down on the table to reduce vibrations and prevent errors.
  • Table is preplummed 4 vacuum zones, each with a separate valve and handle, ready to accept optional 7hp vacuum pump.
  • Extremely rigid steel structure reduces vibrations and helps the table stay accurate for years.
  • Dust shroud covers the spindle and vacuums out sawdust and wood chips while you’re cutting.
  • Covered by a 1-year parts warranty.
  • Lifetime technical support by phone: Call up Baileighs team of reps, all with hands-on machine experience, whenever you need help.



Specifications
Model WR-84V
Actual Working Area 97 x 48 inch
Spindle 7.4hp
Z Axis Stroke 5.375 inch
Maximum Moving Speed (Inches Per Minute) 590
Maximum Engraving Speed (Inches Per Minute) 590
Reposition Accuracy 0.0019
Tool Diameters ER32
Power 220V Single Phase
Length 118 inch
Width 78 inch
Height 65 inch
Weight (lbs) 2500
Table Style T-Slot with Vacuum Option
AMP Draw 35 at full load

specifications subject to change without notice.

5x10 automatic tool change (ATC) router

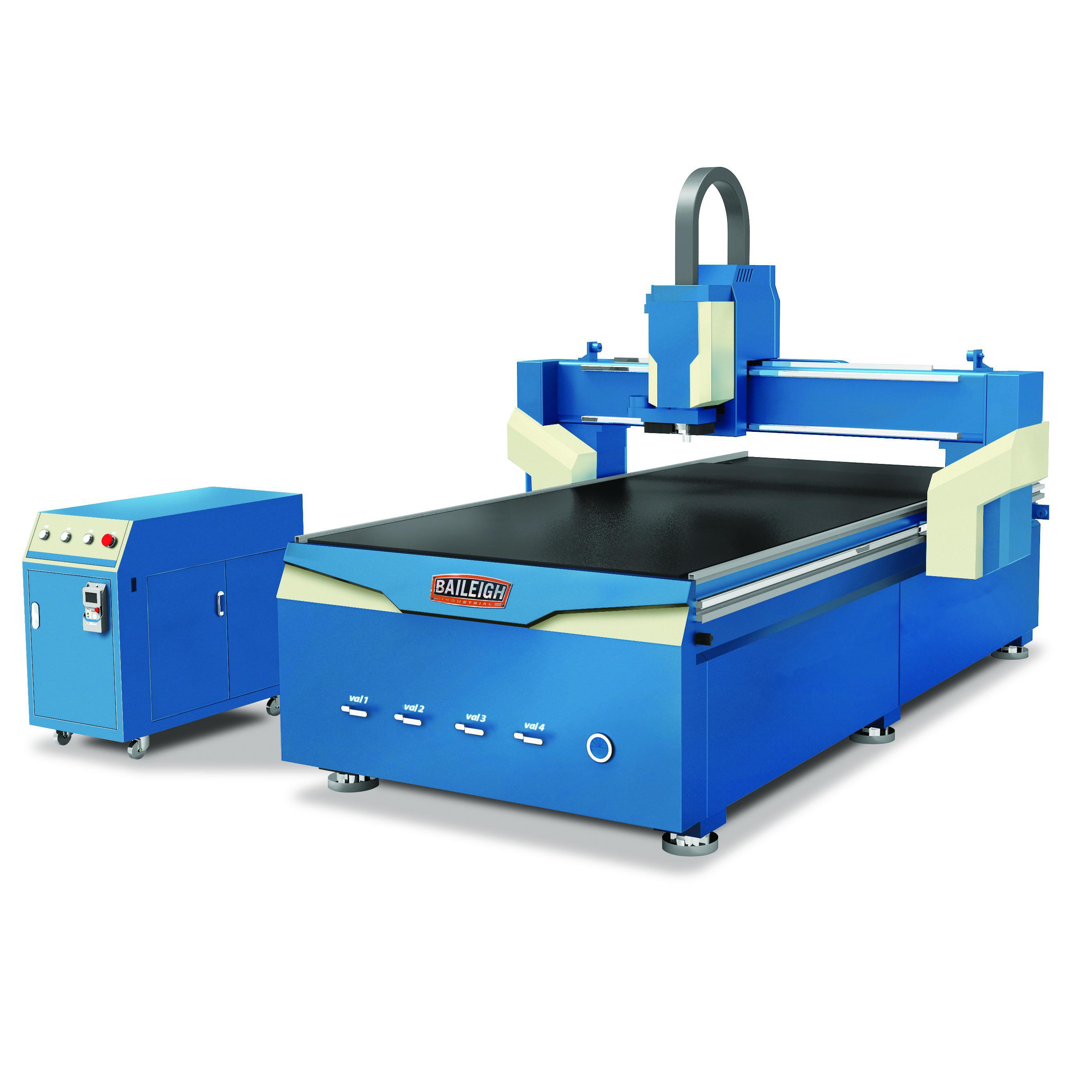

CNC Router Table  WR-105V-ATC

This CNC router table can automatically change tooling in just 8 seconds. You can program profile switches right into your design to save time and maintain precision during industrial production runs.



  • Large 5 x 10 foot table.
  • Arrives pre-built with correct alignment. No complicated set-up process.
  • Comes with softwarefor plotting out designs on your computer, then turning them into cut patterns for the machine.
  • Runs on 220-volt 3-phasepower.
  • Powerful 12hp spindlecan tackle hard materials without flinching.
  • 9 kilowatt air-cooled spindlewill stay accurate through years of production.
  • Variable spindle speed, from 0 to 24,000 rpm.
  • Servo motorsensure smooth running at both fast and slow speeds.
  • High gantry is up and away from material, allowing you to see what it’s doing.
  • Y axis moves far enough for the gantry to clear the table. You can take the material directly off; no need slant it awkwardly.
  • Upload your design to the table with a USB drive. Automatic tooling changes let you swap out bits with computer-controlled precision. Sensor compensates for the change in tool lengths. That change might seem tiny, but it makes a huge difference to the finished product.
  • Pre-load up to 6 collets with your chosen profiles; the router will switch between them as programmed.
  • Powerful 7hp vacuum in the bed of the table holds the material in place during the cutting process.
  • 4 vacuum zonesallow you to turn on the valve only for the area where you’re working.
  • Arrange each zone’s vacuum sealinto the shape of the material to provide well-distributed suction.
  • Dust shroudfits over the spindle; you can vacuum out all the dust and chips while you’re cutting.
  • Fully-welded steel framekeeps the machine stable, helping the router last longer and preventing vibrations from taking the cut off-course.
  • Covered by a 1-year parts warranty.
  • You can count on lifetime technical support by phone from Baileigh’s team of reps, all with hands-on product experience.
Specifications
Model WR-105V-ATC
Actual Working Area 118 x 59 inch
Speeds Variable
Spindle Air Cooled
RPM 0-24000
Z Axis Stroke 8 inch
Maximum Moving Speed (Inches Per Minute) 2362
Maximum Engraving Speed (Inches Per Minute) 984
Reposition Accuracy 0.0015
Tool Diameters er32
Power 220V Three Phase
Length 140 inch
Width 110 inch
Height 89 inch
Horse Power 12
Weight (lbs) 3200
Table Style Vacuum

specifications subject to change without notice.

There are no listed accessories.

WR-23
220V SINGLE PHASE 2 X 3 CNC ROUTER TABLE, INCLUDES HEAVY DUTY 3HP SPINDLE, AND SOFTWARE PACKAGE
CALL 800-458-3687 FOR A BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: WR-23
BAIWR-23
lease to own for as little as:$143 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,310.25

34
WR-84V
220V 1 PHASE CNC ROUTER 4X8 TABLE W/ T-SLOTS, 7.5HP SPINDLE (VACUUM READY, PUMP SOLD SEPARATELY)
CALL 800-458-3687 FOR A BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: WR-84V
BAIWR-84V
lease to own for as little as:$272 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$14,197.75

34
WR-105V-ATC
220V 3 PHASE5X10 CNC ROUTER TABLE, VACUUM TABLE, 12HP HSD SPINDLE, 6PC ATC, AND SOFTWARE PACKAGE
CALL 800-458-3687 FOR A BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: WR-105V-ATC
BAIWR-105V-ATC
lease to own for as little as:$738 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$38,945.25

34
