Baileigh Multifunction Woodworking Machi



multifuntion woodworking machine multifuntion woodworking machine
Combination Woodworking Machine MF-3005 Multifunction Woodworking Machine MF-4005

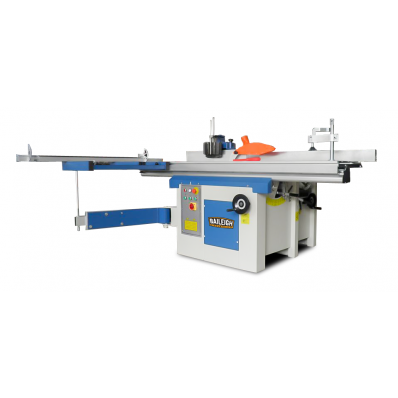

Combination Woodworking Machine MF-3005

1005572

Sometimes space determines whether or not a new piece of equipment will be purchased for a shop.  The MF-3005 from Baileigh Industrial takes care of that problem.  This 5 in 1 combination woodworking machine combines all of the most popular machines into one small foot print.  These machines include; 10 inch sliding table saw, 12 inch planer, 12 inch jointer, 5/8 inch mortise, and 1-1/8 inch shaper.  Functions are handled by three individual 220 volt single phase motors, with more than enough power for any project.

The 10 inch sliding table saw with scoring has a crosscut capacity of 63 inch. The shaper turns at 3100 rpm with a micro-adjustable easy install fence that is made of cast-iron and comes with a 4 inch dust port.  Mortising is a snap on the horizontal mortiser that is attached to the 12 inch jointer which also coverts into a planer in less than 30 seconds.   For more information on this do it all machine, contact a representative today.

Specifications
Model MF-3005
Planer Working Table 12 x 60 inch
Planer Cutterhead Diameter 2.75 inch
Planer RPM 5700
Planer Number of Knives 3
Planer Maximum Table Adjustment 1/8 inch
Jointer Working Table 11.8 x 26 inch
Jointer Feed Speed 23 FPM
Jointer Maximum Working Height 8.66 inch
Jointer Minumum Working Height 3/16 inch
Jointer RPM 5700
Jointer Maximum Cutting Depth 3/16 inch
Table Saw Working Table 8.6 X 63 inch
Table Saw Blade Diameter 10 inch
Table Saw RPM 4500
Table Saw Arbor 1-1/2 inch (30mm)
Table Saw Cutting Height at 90 degrees 3.14 inch
Table Saw Cutting Height at 45 degrees 1.96 inch
Table Saw Scoring Blade RPM 7000
Table Saw Scoring Blade Diameter 3.5 inch (90mm)
Table Saw Scoring Blade Arbor 7/8 inch (22mm)
Mortiser Working Table 9.8 x 20 inch
Mortiser Longitudinal Stroke 8inch
Mortiser Vertical Stroke 3.5 inch
Mortiser Transversal Stroke 3.7 inch
Mortiser Maximum Chisel 5/8 inch
Mortiser RPM 5700
Shaper Working Table 8.6 X 39 inch
Shaper Speeds 4
Shaper RPM 2000/3100/4400/7000
Shaper Shaft Diameter 1-1/8 inch (30mm)
Shaper Shaft Vertical Stroke 4.5 inch
Shaper Maximum Tool Diameter 6.25 inch
Power 220V Single Phase
Length 87 inch
Width 63 inch
Height 35 inch
Horse Power 2.7
Weight (lbs) 1200

specifications subject to change without notice

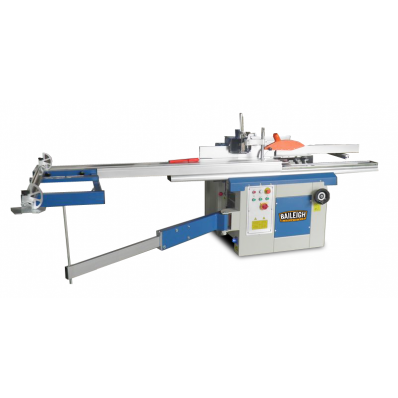

Multifunction Woodworking Machine MF-4005

1005573

The MF-4005 is the larger brother of the MF-3005 from Baileigh Industrial.  With the MF-4005 multifunction woodworking machine you get a 5 in 1 machine on steroids, but with the little foot print that these machines are known for.  In a lot of cases space will determine the spending budget for a shop and whether you are a professional shop or an educational facility the MF-4005 will expand your potential.

This 5 in 1 combination woodworking machine combines all of the most popular machines into one small foot print.  These machines include; 12 inch sliding table saw, 15 inch planer, 15 inch jointer, 5/8 inch mortise, and 1-1/8 inch shaper.  Functions are handled by three individual 220 volt single phase motors, which make changeover time faster and makes the machines operation safer.  The 12 inch sliding table saw with scoring has a crosscut capacity of 86 inch. The shaper turns at 3100 rpm with a micro-adjustable easy install fence that is made of cast-iron and comes with a 4 inch dust port.  Mortising is a snap on the horizontal mortiser that is attached to the 12 inch jointer which also coverts into a planer in less than 30 seconds.  Integrated dust collector ports are also included throughout.

For more information on this do it all machine, contact a representative today.

Specifications
Model MF-4005
Planer Working Table 15.75 x 71 inch
Planer Cutterhead Diameter 2.75 inch
Planer RPM 5700
Planer Number of Knives 3
Planer Maximum Table Adjustment 1/8 inch
Jointer Working Table 15.75 x 30 inch
Jointer Feed Speed 23 FPM
Jointer Maximum Working Height 8.66 inch
Jointer Minumum Working Height 3/16 inch
Jointer RPM 4500
Jointer Maximum Cutting Depth 3/16 inch
Table Saw Working Table 12.8 X 87 inch
Table Saw Blade Diameter 12 inch
Table Saw RPM 4500
Table Saw Arbor 1-1/2 inch (30mm)
Table Saw Cutting Height at 90 degrees 3.93 inch
Table Saw Cutting Height at 45 degrees 2.95 inch
Table Saw Scoring Blade RPM 7000
Table Saw Scoring Blade Diameter 3.5 inch (90mm)
Table Saw Scoring Blade Arbor 7/8 inch (22mm)
Mortiser Working Table 9.8 x 20 inch
Mortiser Longitudinal Stroke 8 inch
Mortiser Vertical Stroke 3.5 inch
Mortiser Transversal Stroke 3.7 inch
Mortiser Maximum Chisel 5/8 inch
Mortiser RPM 5700
Shaper Working Table 12.8 x 43.75 inch
Shaper Speeds 4
Shaper RPM 2000/3100/4400/7000
Shaper Shaft Diameter 1-1/8 inch (30mm)
Shaper Shaft Vertical Stroke 4.5 inch
Shaper Maximum Tool Diameter 7 inch
Power 220V Single Phase
Horse Power 2.7
Weight (lbs) 1200

specifications subject to change without notice.

There are no listed accessories.

MF-3005
220V 1 PHASE 5-IN-1 MULTIFUNCTION MACHINE, 12 PLANER/JOINTER, 10 TABLE SAW, 3/8 SLOTTER, & SHAPER(1200 LBS)
CALL 1-800-458-3687 X1 FOR CURRNET PRICING AND AVAILABILITY ON THIS ITEM
Mfg. item #: MF-3005
BAIMF-3005
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

157
MF-4005
220V 1 PHASE 5-IN-1 MULTIFUNCTION MACHINE, 16 PLANER/JOINTER, 12 TABLE SAW, 3/8 SLOTTER, & SHAPER(1500 LBS)
CALL 1-800-458-3687 X1 FOR CURRNET PRICING AND AVAILABILITY ON THIS ITEM
Mfg. item #: MF-4005
BAIMF-4005
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

157
