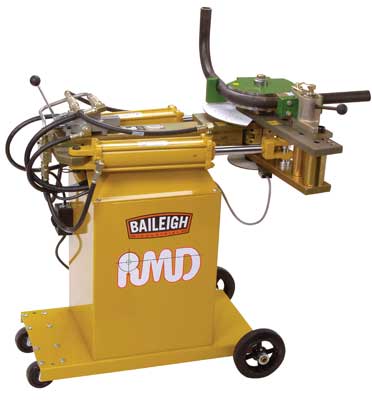

Baileigh 150-S Rotary Draw Bender

Click image to enlarge

• Bend up to 206 degrees without stopping or ratcheting.
• Bends pull out in seconds (no disassembly required).
• Fast cycle time
• The M-150 tubing bender has a maximum capacity of 2" Schedule 40 pipe, 2" square, & 2-1/2" tube
• Auto-stop option for one bend programming.
• Bend can be advanced after stopping machine, saves on set up costs (material savings).
• This tube bender has a maximum CLR of 7"
• This tube benders unique design is coupled with powerful a hydraulic pump that reduces production time and improves efficiencies.
• Variable speed controlled by operator.
• Quick release counter die system allows the pipe bender to be loaded and unloaded quickly.
• Bends can be advanced after stopping machine, saves on set up costs (material savings).
• Bend Material:  Round or square tubing, pipe, flat stock, angle iron, or solid rod.
• Our tube benders are ideal for:  hand railing, marine products, racing chassis and roll cages, fences and gates, furniture frames, hydraulics, stainless plumbing, and much more.
• Power Required:  110 V, Single Phase, 20 amp, 60 cycle.
• RMD tubing benders are "Made in America".

• One shot bending up to 206 degrees without stopping or ratcheting.
• Bends pull out in seconds (no disassembly required).
• Unique design coupled with powerful hydraulic pump reduces production time and improves efficiencies.
• This tube benders capacity is up to 2" Schedule 40 Pipe, 2" square tubing, 2-1/2" Chromolly (up to .083 wall), up to 2.0" tube (.095 wall mild steel).
• Maximum bend radius is 7" (depending on wall thickness, and material).
• Quick release counter die.
• Highly visible degree dial improves accuracy.
• Solid steel construction for durability.

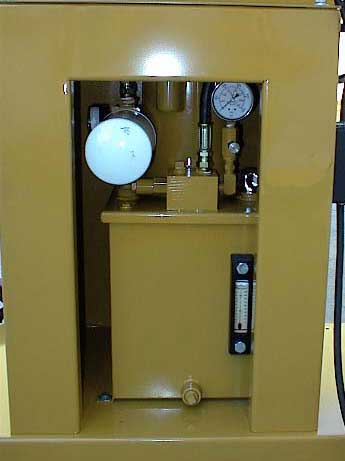

• High quality industrial hydraulic system.
• Die sets are interchangeable with all RMD tube benders.
• Bend can be advanced after stopping machine, saves on set up costs (material savings).
• All die sets are color coded for easy identification (green for pipe, blue for tube, and gray for square).
• Power Required: 110 V, Single Phase, 20 amp, 60 cycle (other electrical specifications available).
• Bend Material: Round or square tubing, pipe, flat stock, angle iron, or solid rod.
• Built to the same high quality standards as all other RMD tube benders.
• Auto-stop option for one bend programming.
• RMD tube benders are MADE IN AMERICA!


Click On Images To Enlarge
