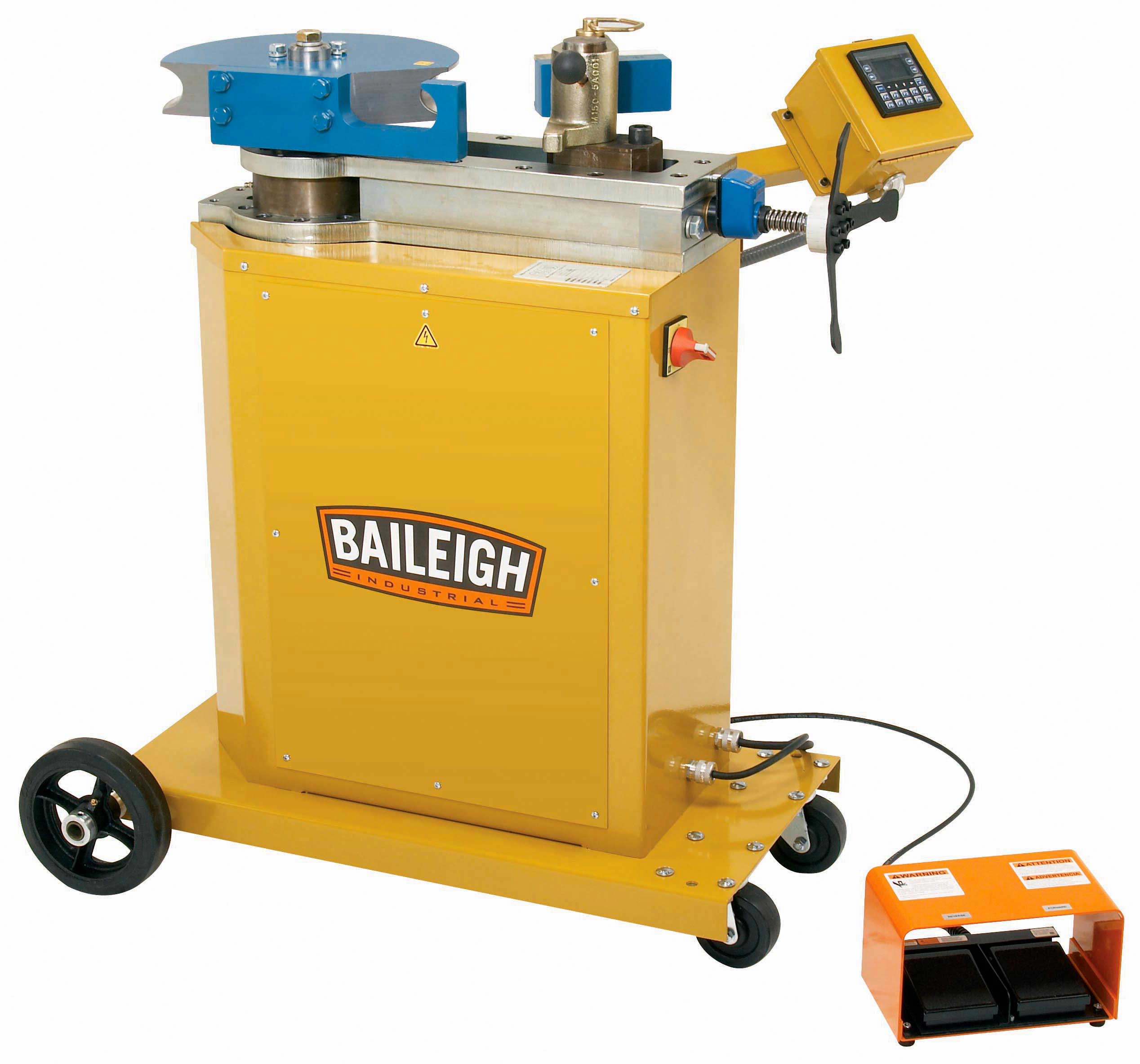

Baileigh RDB-250 Rotary Draw Bender

Model 250 Rotary Draw Bender

  • The RDB-250 tube bender has the strength to bend up to 2-1/2” tubing and 2” Schedule 40 Pipe, and can be programmed with up to 170 programs with up to 10 bends per program. Up to a 20’ indexing table can be attached when multiple bends in variable planes are required that is great for big production runs.
  • The RDB250 tube bender can bend at speeds up to 9 seconds for a 180 degree bend and can be programmed to bend up to 360 degrees, great for solid rod applications. Complex serpentine bends can be done with ease. A quick counter die release allows for quick removal of bends and allows for furthering bending pre-bent material.
  • The counter die positioner has a numerical counter so repositioning of the counter die is a breeze when recalling bend programs. Engaging bends is as simple as pressing the forward foot pedal, and reverse pedal when complete.
  • This tube bender is the most revolutionary and economical programmable tubing bender on the market with similar capacities. Baileigh Industrial is North America and Europe’s trusted source for tube bending machinery.


Click image to enlarge

SPECIFICATIONS AND CAPACITIES: RDB-250
Mild Steel Pipe (Schedule 40) 2"
Aluminum Pipe (Schedule 40) 2"
Stainless Steel Pipe (Schedule 40) 1.5"
Mild Steel Round Tube (Wall) 2.5" (.125)
Aluminum Round Tube (Wall) 2.5" (.156)
Stainless Steel Round Tube (Wall) 2.375" (.125)
Chromolly Round Tube (Wall) 2" (.125)
Mild Steel Solid Rod 1.25"
Mild Steel Square Tube (Wall) 2" (.125)
Minimum OD .25"
Maximum Speed to 180 Degrees 9 Seconds
Maximum Center Line Radius (CLR) 9"
Minimum CLR .5"
Power Requirements 220V (1-Phase)
Weight (Lbs.) 610
Length 40"
Width 32"
Height 43"
* CLR capacity is variable depending on material


Click on image to enlarge

Standard programmer can hold up to 170 programs with 10 bends per program!



RT-1B Round Tubing Die Package
DS-0750T-R250  3⁄4" Round Tube Die Set 0.058 OD 2.5 clr
DS-0875T-R300 7⁄8" Round Tube Die Set 0.058 OD 3.0 clr
DS-1000T-R300 1" Round Tube Die Set 0.063 OD 3.0 clr
DS-1250T-R400 11⁄4" Round Tube Die Set 0.083 OD 4.0 clr
DS-1500T-R500 11⁄2" Round Tube Die Set 0.083 OD 5.0 clr
RT-2B Round Tubing Die Package
DS-0750T-R250 3/4" Round Tube Die Set 0.058 OD 2.5 clr
DS-0875T-R300 7/8" Round Tube Die Set 0.058 OD 3.0 clr
DS-1000T-R300 1" Round Tube Die Set 0.063 OD 3.0 clr
DS-1250T-R400 14" Round Tube Die Set 0.083 OD 4.0 clr
DS-1500T-R500 11/2" Round Tube Die Set 0.083 OD 5.0 clr
DS-2000T-R650 2" Round Tube Die Set   6.5 clr
RT-3B Racing Round Tubing Die Package
DS-1000T-R300 1" Round Tube Die Set 0.063 OD 3.0 clr
DS-1250T-R400 11⁄4" Round Tube Die Set 0.083 OD 4.0 clr
DS-1500T-R500 11⁄2" Round Tube Die Set 0.095 OD 5.0 clr
DS-1625T-R600 15⁄8" Round Tube Die Set 0.083 OD 6.0 clr
DS-1750T-R700 13⁄4" Round Tube Die Set 0.083 OD 7.0 clr
RP-1B Round Pipe Die Package
DS-0500P-R250 1⁄2" Pipe Die Set .840 OD 2.5 clr
DS-0750P-R300 3⁄4" Pipe Die Set 1.050 OD 3.0 clr
DS-1000P-R300 1" Pipe Die Set  1.315 OD 3.0 clr
DS-1250P-R400 11⁄4" Pipe Die Set  1.660 OD 4.0 clr
DS-1500P-R500 11⁄2" Pipe Die Set  1.900 OD 5.0 clr
RP-2B Round Pipe Die Package
DS-0500P-R250 1/2" Pipe Die Set 0.840" OD 2.5 clr
DS-0750P-R300 3/4" Pipe Die Set 1.050" OD 3.0 clr
DS-1000P-R300 1" Pipe Die Set 1.315" OD 3.0 clr
DS-1250P-R400 1 1/4" Pipe Die Set 1.660" OD 4.0 clr
DS-1500P-R500 1 1/2" Pipe Die Set 1.900" OD 5.0 clr
DS-2000P-R600 2" Pipe Die Set 3.375" OD 6.0 clr
RP-3B Round Pipe Hand Rail Die Package
DS-1250P-R300 1 1/4" Pipe Die Set 1.660" OD 3.0 clr
DS-1500P-R375 1 1/2" Pipe Die Set 1.900" OD 3.75 clr
ST-1B Square Tubing Die Package
DS-0500S-R300 1⁄2" Square Tube Die Set 3.0 clr
DS-0750S-R350 3⁄4" Square Tube Die Set 3.5 clr
DS-1000S-R450 1" Square Tube Die Set 4.5 clr
DS-1250S-R550 11⁄4" Square Tube Die Set 5.5 clr
DS-1500S-R650 1 1⁄2" Square Tube Die Set 6.5 clr
ST-2B Square Tubing Die Package
DS-0500S-R300 1/2" Square Tube Die Set 3.0 clr
DS-0750S-R350 3/4" Square Tube Die Set 3.5 clr
DS-1000S-R450 1" Square Tube Die Set 4.5 clr
DS-1250S-R550 1 1/4" Square Tube Die 5.5 clr
DS-1500S-R650 1 1/2" Square Tube Die 6.5 clr
DS-2000S-R700 2" Square Tube Die Set 7.0 cir
ST-3B Square Tubing Die Package
DS-0500S-R300 1⁄2" Square Tube Die Set  3.0 clr
DS-0750S-R350 3⁄4" Square Tube Die Set 3.5 clr
DS-1000S-R450 1" Square Tube Die Set 4.5 clr
DS-1250S-R550 11⁄4" Square Tube Die Set 5.5 clr
DS-1500S-R650 11⁄2" Square Tube Die Set  6.5 clr
DS-2000S-R700 2" Square Tube Die Set 7.0 clr

Please call 800-458-3687 or e-mail sales@southern-tool.com to verify work application in order to get Tubing and Pipe Die Pricing.


BAIRDB-250
$9,695.00 $9,400.27
"220 Volt Single Phase Rotary Draw Bender w/ 170 Job Programmer. 2"" Schedule 40 Pipe Capacity. 9"" CLR Maximum ::::: CALL 1-800-458-3687 for a Freight Rate On This Item"

BAIIDX-05
$3,395.00 $3,291.79
5' Positioning table extension ::::: CALL 1-800-458-3687 for a Freight Rate On This Item

BAIIDX-15
$3,950.00 $3,752.50
15' Positioning Table Extension...Description: The IDX-15 positioning table allows accurate positioning of each bend in its corresponding plane (0-360) via adjustments made to calibrated rotary chuck assembly. A linear scale is included with mechanical... >>>FREE FREIGHT only when ordered with equipment

BAIRT-1B
$2,425.00 $2,351.28
"Round Tubing Die Package - 3/4"" @ 2.5""CLR(min.wt.058) - 7/8"" @ 3""CLR(min.wt.058) - 1"" @ 3""CLR(min.wt.063) - 1.25"" @ 4""CLR(min.wt.083) - 1.5""@ 5""CLR(min.wt.083) - Please verify wall thicknesses that fall below min. w/ a qualified Baileigh Rep ::::: CALL 1-800-458-3687 for a Freight Rate On This Item"

BAIRT-2B
$3,450.00 $3,345.12
"Round Tubing Die Package - 3/4"" @ 2.5""CLR(min.wt.058) - 7/8"" @ 3""CLR(min.wt.058) - 1"" @ 3""CLR(min.063) - 1.25"" @ 4""CLR(min.wt.083) - 1.5"" @ 5""CLR(min.wt.083) - 2"" @ 7""CLR - Please verify wall thicknesses that fall below min. w/ a qualified Baileigh Rep ::::: CALL 1-800-458-3687 for a Freight Rate On This Item"

BAIRT-3B
$3,375.00 $3,272.40
"Round Tubing Racing Die Package - 1"" @ 3""CLR(min.wt.063) - 1.25"" @ 4""CLR(min.wt.083) - 1.5"" @ 5""CLR(min.wt.095) - 1.625"" @ 6""CLR(min.wt.083) - 1.75"" @ 7""CLR(min.wt.083) - Please verify wall thicknesses that fall below min. w/ a qualified Baileigh Rep ::::: CALL 1-800-458-3687 for a Freight Rate On This Item"

BAIRP-1B
$2,478.00 $2,402.67
"Round Pipe Die Package----1/2"" @ 2.5""CLR - 3/4"" @ 3""CLR - 1"" @ 3""CLR - 1.25"" @ 4""CLR - 1.5"" @ 5""CLR - All dies based on Schedule 40 Mild Steel Pipe ::::: CALL 1-800-458-3687 for a Freight Rate On This Item"

BAIRP-2B
$3,295.00 $3,194.83
"Round Pipe Die Package ---- 1/2"" @ 2.5""CLR - 3/4"" @ 3""CLR - 1"" @ 3""CLR - 1.25"" @ 4""CLR - 1.5"" @ 5""CLR - 2"" @ 6""CLR - All dies based on Schedule 40 Mild Steel Pipe ::::: CALL 1-800-458-3687 for a Freight Rate On This Item"

BAIRP-3B
$1,125.00 $1,090.80
"Round Pipe Hand Rail Die Package-----1-1/4"" @ 3""CLR - 1-1/2"" @ 3.75""CLR - All Dies Based on Schedule 40 Mild Steel Pipe ::::: CALL 1-800-458-3687 for a Freight Rate On This Item"

BAIST-1B
$4,305.00 $4,174.13
"Square Tubing Die Package----1/2"" - 3""CLR & 3/4"" - 3.5""CLR & 1"" - 4.5""CLR & 1.25"" - 5.5CLR & 1.5"" - 6.5""CLR - Please verify your specific wall thicknesses with a qualified Baileigh Rep ::::: CALL 1-800-458-3687 for a Freight Rate On This Item"

BAIST-2B
$5,625.00 $5,454.00
"Square Tubing Die Package ---- 1/2"" @ 3""CLR - 3/4"" @ 3.5""CLR - 1"" @ 4.5""CLR - 1.25"" @ 5.5""CLR - 1.5"" @ 6.5""CLR - 2"" @ 7""CLR - Please verify your wall thicknesses with a qualified Baileigh Rep ::::: CALL 1-800-458-3687 for a Freight Rate On This Item"
