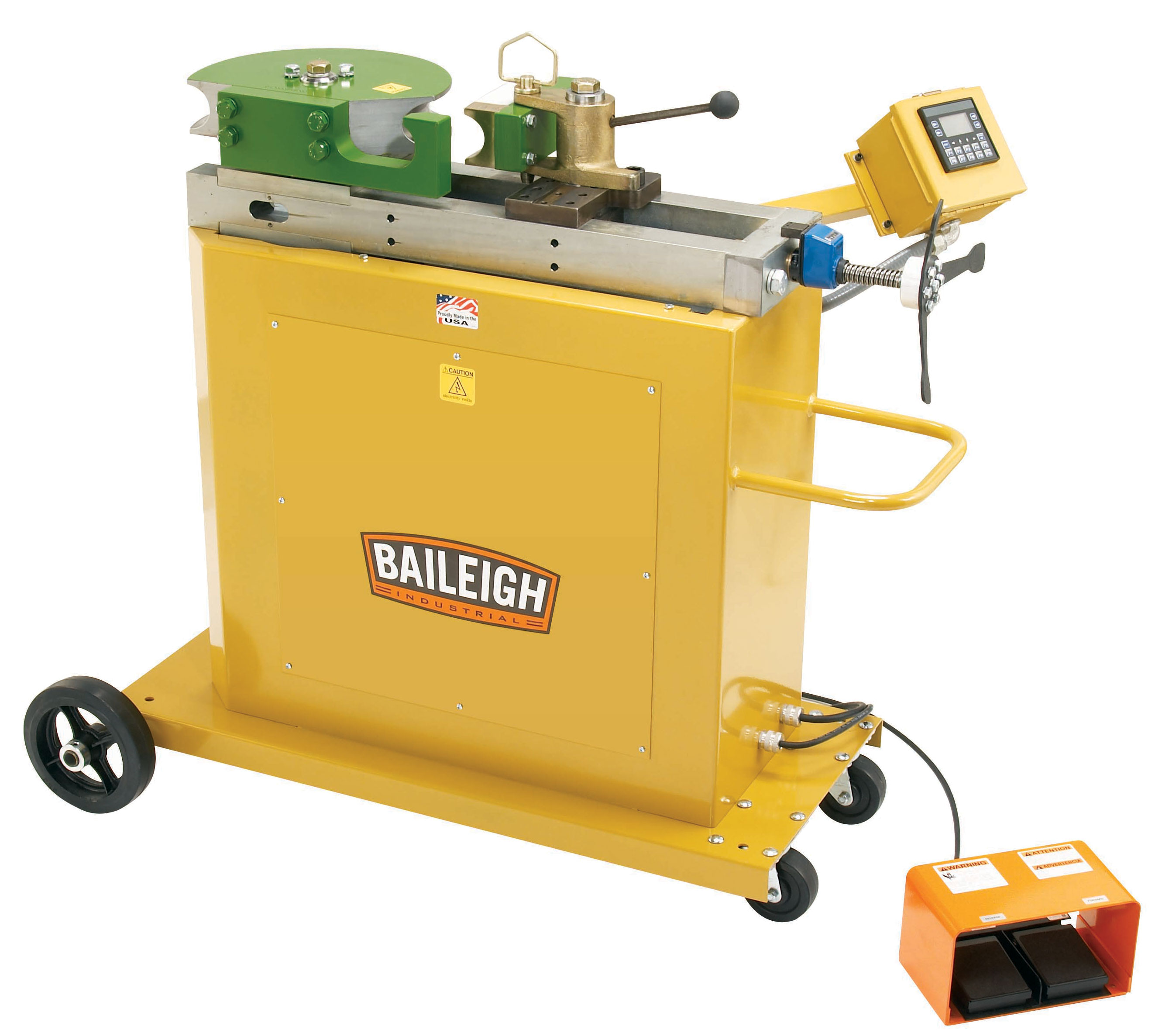

Baileigh RDB-300-S Rotary Draw Bender

Click on image to enlarge

• Programmable electric tubing bender
• Maximum capacity is 2" Schedule 40 pipe, 2.5" tube
• Like most RMD tubing benders, the model 300 utilizes a portable cart with wheels for easy mobilization around the job site or production floor.
• To program a bend, simply turn the degree hand wheel to the desired bend angle (include spring back).  When performing a bend, the die head will automatically stop at the degree indicated on the numerical  counter.  Allows for accurate repeatability when performing one or multiple bends.
• Optional OCS (operator control station) programming unit can store multiple programs.  Each program can store 10 different bend angles.  The model 300-S with OCS was designed to be understood easily for ease of operation.
• Like all RMD tubing benders, bends can be advanced after stopping machine, saving on material costs during set-up.
• Non-proprietary center die spindle allows for custom tooling applications.
• This tubing bender is supplied with an AC variable speed motor drive with built in speed potentiometer.
• Bend material:  Round or square tubing, pipe, or solid rod.
• Similar to other RMD programmable tube benders, the model 300 can be fitted with a rotary positioning table allowing for accurate bends in varying planes, as well as consistent measurements between bends.
• Extra heavy duty design normally seen on larger models, means more value for the investment.
• The Model 300-S tubing bender utilizes a portable cart with wheels for easy mobilization around the job site or production floor.
• Components are off the shelf.
• Fabricated components are CNC machined for high quality.
• Lead screw indicator ensures repeatable counter die positioning for multiple bends.
• Bend can be advanced after stopping machine, saves on material costs.
• In the return mode, the die head stops in the zero or home position.
• All die sets are color coded for easy identification (green for pipe, blue for tube, and gray for square.)
• Counter dies have replaceable insert that reduces future replacement costs.
• Unique die design allows for die and hook arm to be disassembled, reducing future replacement costs.
• Overload protection ensures long component life.
• Electrically driven means no complex hydraulics.
• Non-proprietary center die spindle allows for custom tooling applications.
• RMD pipe benders are made in USA!

• Power: Three phase available
• 3 hp upgrade
• Programmable feature and foot pedal controls
• Micro processor controls in place of dialing in bend angles
• Rotary positioning table available in various table lengths for repeatable bends in a single piece of material. Allows for accurate bends in varying planes, as well as consistent measurements between bends
