Baileigh RDB 500 Rotary Draw Bender

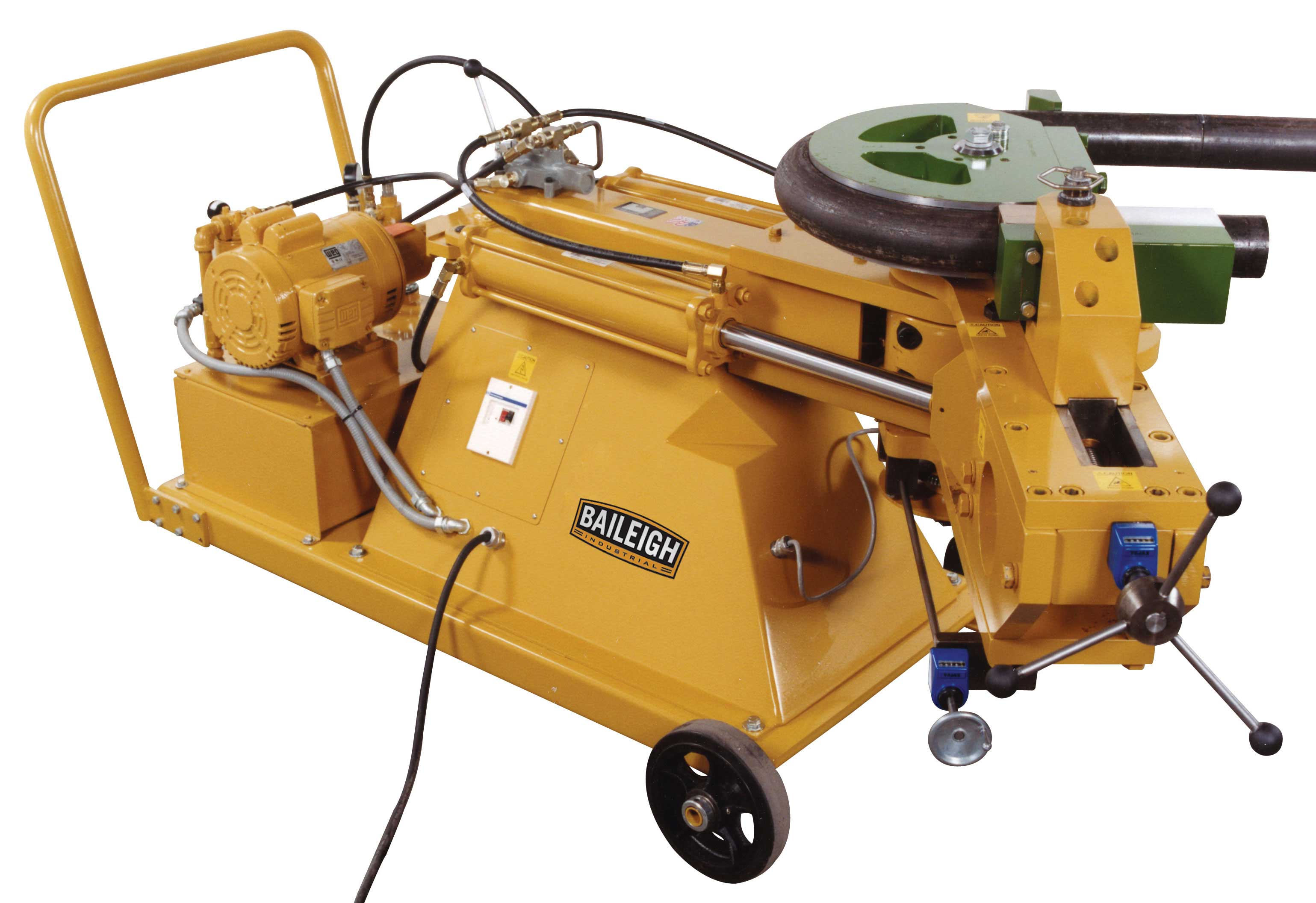

Click image to enlarge

• One shot bending up to 206 degrees without stopping or ratcheting.
• The model 500 pipe bender is variable speed as controlled by the operator.
• Bends pull out in seconds (no disassembly required)
• This pipe bender has a unique design that is coupled with a powerful hydraulic pump and industrial grade hydraulics that reduces production time and improves efficiencies.
• Like all RMD tube benders, the model 500 has a fast cycle time.
• This pipe benders maximum capacity is 3" Schedule 40 pipe, 3" square,& 4" tube (.185 wall mild steel).
• The maximum center line radius is 12" (depending on wall thickness, and material).
• Programming bend angle is as easy as turning a hand wheel.  A numerical counter displays the desired degree that the machine will automatically stop at.
• Consistent with all RMD tube benders, this machine is made of solid steel construction and weighs an impressive 1800 lbs.
• Die sets are interchangeable with all RMD benders.
• Auto-stop for repeatable bends
• Our pipe benders can be advanced after stopping the machine, saving on set-up costs (material savings).
• Made in America!

• One shot bending up to 206 degrees without stopping or ratcheting.
• Bends pull out in second.
• Unique design coupled with powerful hydraulic pump reduces production time and improves efficiencies.
• The Model 500-S pipe bender has a capacity up to 3" Schedule 40 Pipe, 3" square tubing, up to 4" tube (.185 wall mild steel).
• Maximum bend radius is 12" (depending on wall thickness, and material).
• Auto-stop for programming bend angle allows for repeatable bends.
• Highly visible degree dial improves accuracy.
• Solid steel construction for durability.
• High quality industrial grade hydraulic system.
• Die sets are interchangeable with all RMD benders.
• Bend can be advanced after stopping machine, saves on set up costs (material savings).
• All die sets are color coded for easy identification (green for pipe, blue for tube, and gray for square).
• Power Required: 220 V, Single Phase, 30 amp, 60 cycle (other electrical specifications available).
• Bend Material: Round or square tubing, pipe, flat stock, angle iron, or solid rod.
• Built to the same high quality standards as all other RMD machines.
• Built to the same high quality standard as all other RMD machines.
• This pipe bender is MADE IN AMERICA!
