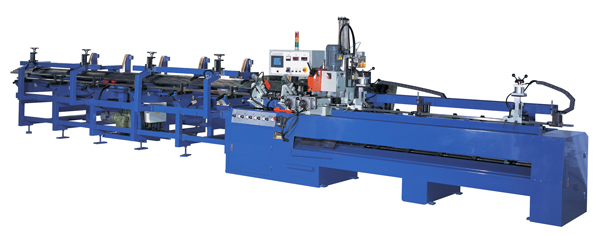

Model BIL-360AB-2S Cold Saw
Functions:
- The BII-360AB-2S requires a HSS cold saw blade from 10 to 14-1/2 inches.
The standard blade used in this machine is a 14 inch blade. The larger blade
lasts longer between resharpening and cuts a lot faster than standard 12
inch automatic machines.
- Two stoppers, the first and second workpieces are outfed seperatley.
Head and end pieces are outfed at the rear side.
- The drive system is gear driven in a bath of oil for long life and no
chatter.
- The adjustable feed magazine allows for material variation, and is fully
automatic.
- Service Requirements are: 220V, 60 Hertz, Three Phase
- This automatic CNC cold saw is powered by a large 4 hp motor; 2 hp motor
for hydraulic pump, and 1/8 hp for coolant pump motor.
- This is a column type cold saw for rigidity. The cutting head is fixed
at 90 degrees.
- Ships standard with the automatic cnc cold saw operator interface
control with touch screen display to provide user friendly experience and
fast change-overs.
- The operator interface is extremely easy to use for such an advanced
production cold saw..
- Automatic workpiece feeding, clamping, and cutting.
- Baileigh Industrial automatic circular cold saws offer more functions,
capacity and rigidity for the investment
|
SPECIFICATIONS |
|
Model: |
BII-360AB-2S |
| Main Drive Motor |
4 HP |
| Blade Speed |
L Type 52/26 RPM
M Type 70/35 RPM
H Type 105/52 RPM |
| Head Swivel |
90° |
| Clamping Vise |
Double |
| Coolant Pump Motor |
1/8 HP |
| Max clamping capacity |
5.9" |
| Blade Size |
HSS Ø250 - Ø360 (10" - 14 ½") |
| Selective feeding speed |
0 - 50 M |
| Feeding length |
0 - 98.5" |
| Hydraulic pump motor |
2 HP |
| Operation Pressure |
25 - 30 Kg/cm² |
| Air Pressure Consumption |
7 Kg/cm² |
| Material storage motor |
2 HP |
| Driving motor of material line-up |
1 HP |
| Driving motor of feeding |
1 HP |
| Drive motor for loading (optional) |
½ HP |
| Table Height |
35.5" |
| Dimensions |
374" x 95" x 79" |
| Net Weight |
8800 LBS |
|
|
