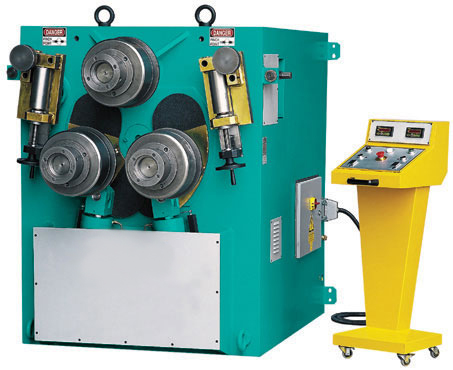

Baileigh H-100 Bender

Model H-100 Bender

Standard Equipments

Steel Construction Frame
Three Rolls are Powered
Horizontal and Vertical Working Position
Mobile Control Panel
Hardened Standard Rolls
Hardened Shafts
Digital Read-Outs (2 pcs.)
3-Axis Mechanical Lateral Angle Guide Rolls
Users manual book

Optional Accessories

Pipe, Tube and Profile Bending Rolls
Infinitively speed variation system
3-Axis Hydraulic Lateral Angle Guide Rollers

SPECIFICATIONS
Shaft Diameter	4"
Upper Roll Diameter	12"
Lower Roll Diameters	12-1/2"
Shaft Speed	5 rpm
CAPACITIES:
Flat Bar Hard Way	4" x 3/4" @ 20" Radius Min.
Flat Bar Easy Way	6"x 1-1/4" @ 16" Radius Min.
Solid Bar	2-1/4" @ 14" Radius Min.
"I" Beam	6" x 2-1/2" @ 16" Radius Min.
Angle Iron Leg Out	4" x 3/8" @ 20" Radius Min.
Angle Iron Leg In	4" x 3/8" @ 24" Radius Min.
Pipe Schedule 40	4" @ 20" and 5" @ 49" Radius Min.
Tubing Round	4" x 14 ga. @ 26" Radius Min.
Hardened Rolls for standard profiles included with machine. Operates vertical/horizontal - hydraulic adjustment of top roll

ELECTRICAL EQUIPMENT AND CONTROLS
Three phase power 220v 60hz, 4.5 HP
Weight	7,100 lbs.
Dimensions (l x w x h)	66" x 50" x 58"

Call 1-800-458-3687 For Special Pricing

Download a Manual

Download Free
