Applications:

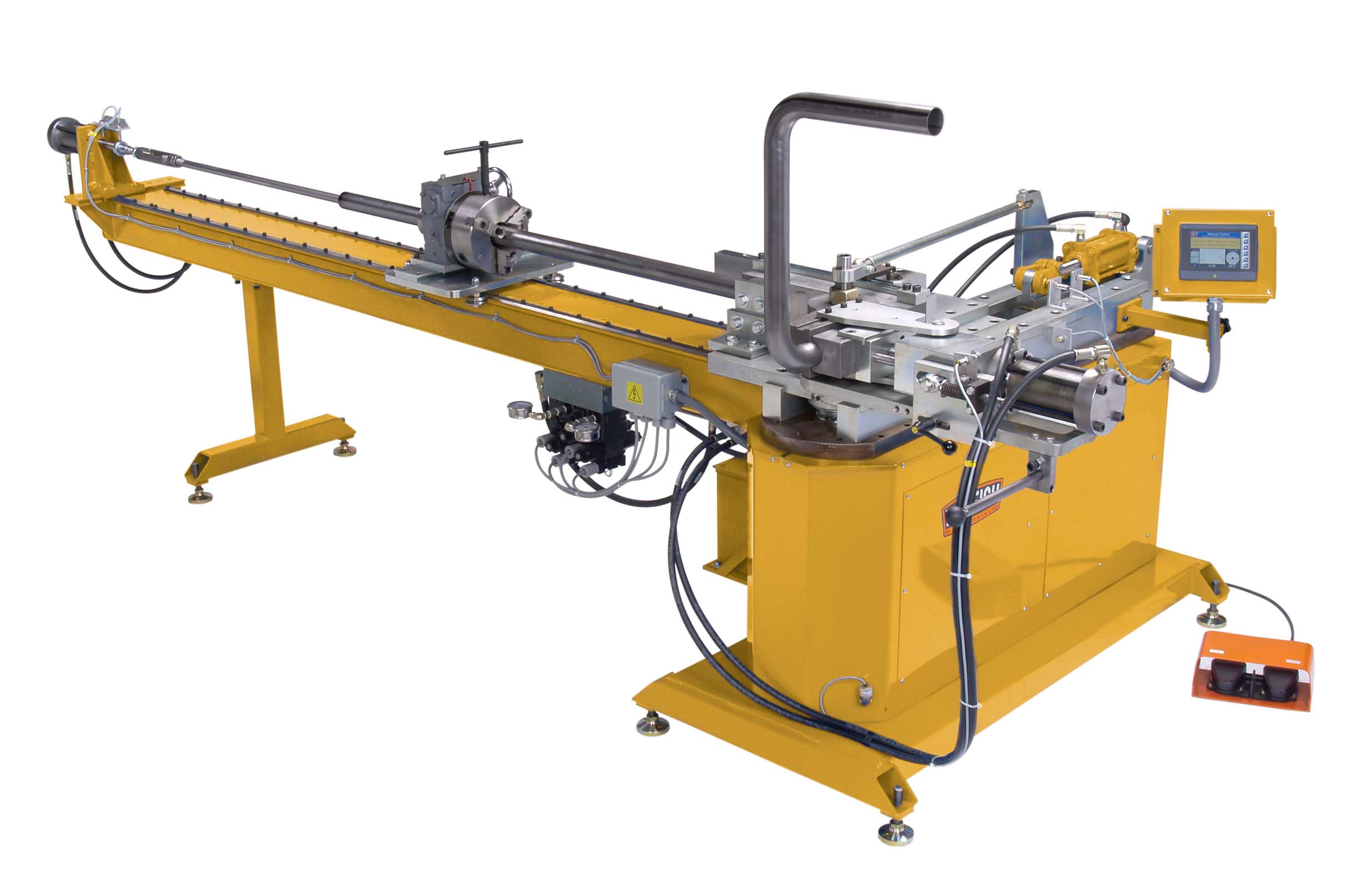

- The MB-350 Mandrel Bender is the perfect machine for
bending tight radi (down to 1-1/2 times the OD) of round
tube and pipe, as well as square tubing. This mandrel
exhaust pipe bender was designed specifically for the
small fabricator who wants an exhaust bender for bending
from 1" up to 3" OD in mild and stainless steel. We
invested heavily in coming up with the right design
allowing this machine to be extremely user friendly, and
forgiving of slight changes in material.
- Besides mandrel bending exhaust pipe this machine
would be used for bending auto and bike chassis, auto
aftermarket accessories, hand railing and much more.
- This mandrel exhaust bender is good for small to
medium production runs. The simple design, heavy
construction and easy to use operator interface allows
for quick change overs, quality bends and descent
production cycles.
|
Includes:
- Touch screen operator interface with capability to
program up to 140 programs, with up to 10 bends per
program.
- 10 Foot Extraction Table
- Rotary positioning carriage with 4 manual stops.
- Tooling is additional per customers bending
requirements. Tooling changes for different materials,
wall thickness and center line radius. Set up of tooling
consists of: 1 - Rotary Bending Die; 2 - Clamp Die; 3-
Pressure Die; 4 - Mandrel; 5 - Wiper Die
Max Bending Strength
Capacity:
- Round Mild Steel - 3"OD x .125" Wall
- Round Aluminum - 3"OD x .188" Wall
- Round Stainless - 3"OD x .065" Wall
- Square Mild Steel - 2"x2" x .188" Wall
- Solid Bar Mild Steel - 1.181"OD
|
Additional
Specifications:
- Right handed mandrel pipe bender
- Single Stack Tooling
- Bend axis is driven by electrical mechanical drive
system. Linear feed and plane of bend rotation are by
rotary degree positioning carriage with linear scale and
4 manual linear stops.
- User friendly touch screen interface allows for
storage of programs, speed of bend changes, amp meter
readings, counter for number of bends, and spring back
values.
- Clamp die has hydraulic and mechanical locking
system that reduces the possibility of slippage.
- Mandrel extractor uses powerful hydraulic system to
insert, hold, and extract the mandrel. Also employed is
an adjustable mandrel positioning device.
- Follower die is positioned and held tight against
rotary die and wiper die.
- Foot pedal control works in conjunction with touch
screen instructions. On screen safeties ensure improper
operations can not be completed.
- Maximum Bend Radius - 12" CLR
- Maximum Angle - 190°
- Maximum Length over Mandrel - 10"
- Bending Speed (DOB) - 18 degrees per second
- Accuracy of DOB - +/- 0.50°
- Machine Weight - 2100 lb
- 220V x 60Hz x 3 Phase
|
This exhaust benders tube bending capacity may vary
depending on OD (outside diameter), WT (wall thickness), CLR
(centerline radius), material (aluminum, mild steel, aluminum,
chromoly, etc.), and supply of material. RMD retains the right to
amend designs to our tube benders from time to time without any
prior notice. The buyer must provide 10 pieces of test bending
material for each different die and mandrel size specified. The
machine will be tested with tooling and material before shipment.
Manufacturer reserves the right to hold shipment until successful
testing has been performed. If desired, factory onsite training can
be hired. Baileigh Industrial's mandrel benders provide quality,
precision and ease of operation at reasonable prices. |
