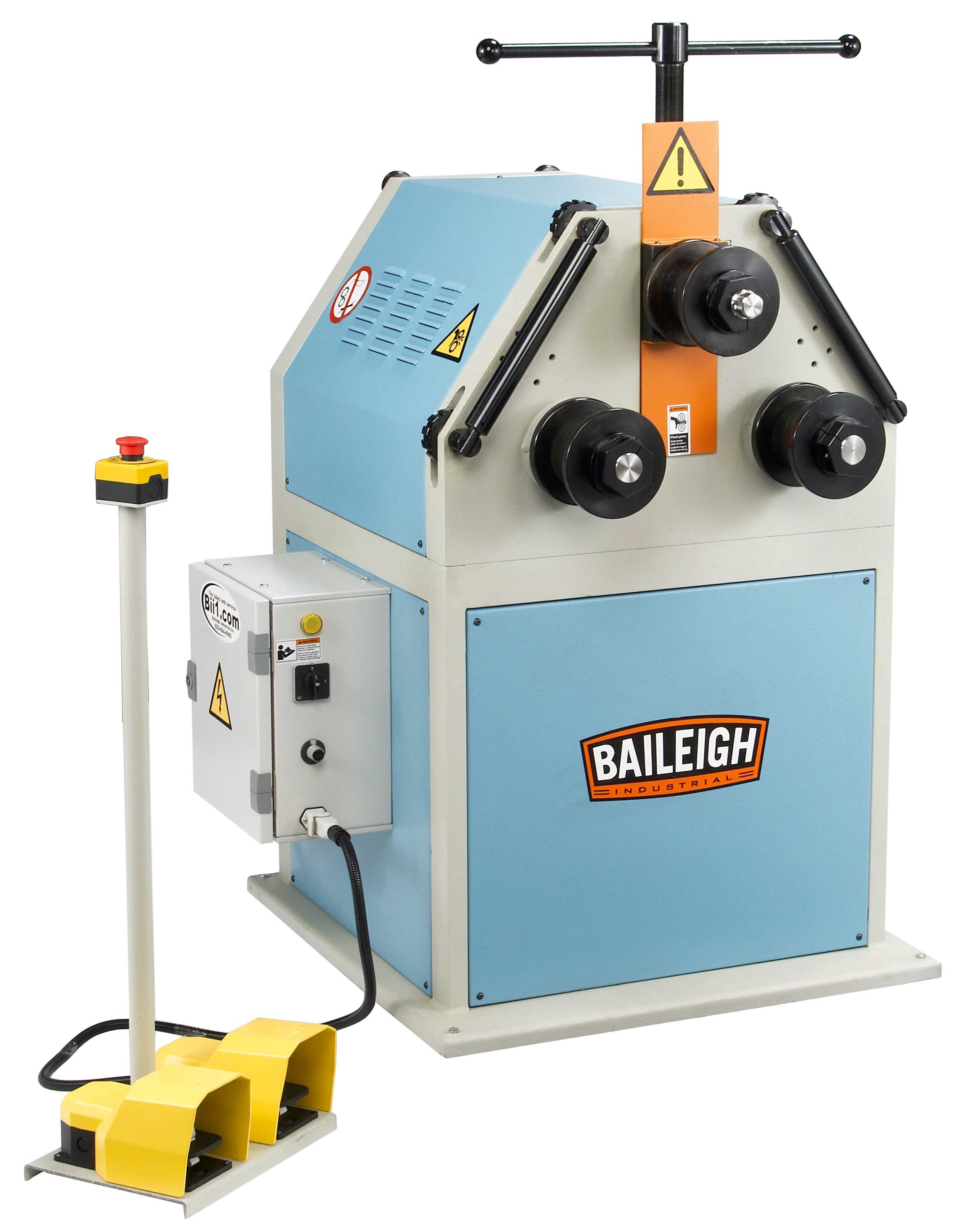

Baileigh R-M55 Bender at Southern Tool Catalog

Technical Specifications and Standard Equipments

Two Driven Rolls
Variable Speed
Rolls are hardened
Rolls Shafts are Special Steel material hardened and grinded
Standard Rolls
Guide Rolls
Horizontal and Vertical Working Position
Foot Pedal
Users manual book

Optional Accessories

Pipe/ Tube Bending Rolls
Angle Bending Rolls

CAPACITIES:
Mild Steel	Max. Size OD/Wall	Min Dia
Flat Bar Hard Way	2-3/8"	31.5"
Flat Bar Easy Way	4"	29.5"
Solid Square Rod	1 3/8"	23.62"
Solid Round Rod	1 3/8"	23.62"
Round Tube	2 3/4"	47.25"
Pipe	2" Schedule 10	47.25"
Rectangular Tube	2 3/4" x 1 1/4"	59"
Square Tube	2"	78.75"
Angle Iron (Leg In)	2" x 2"	47.25"
Angle Iron (Leg Out)	2" x 2"	47.25
T-Bar (Leg Out)	2" x 2"	23.62
T-Bar (Leg In)	2" x 2"	23.62
Channel (Legs Out)	3 1/8"	27.55
Channel (Legs In)	3 1/8"	27.55

SPECIFICATIONS: R-M55
Shaft Diameter	1.969"
Upper Roll Diameter	5.827"
Shaft Speed	Variable 13.6-27.2 rpm
Hardened Rolls for standard profiles included with machine. Forward-reverse foot pedal controls, 2-rolls powered. Directly Gear Driven with Variable Speed Control.

ELECTRICAL EQUIPMENT AND CONTROLS
Electrics	220V Single Phase, 60Hz, 2 HP
Weight	881 lbs.
Dimensions (l x w x h)	37.41" x 35.83" x 50"

R-M55 TOOLING
Model No.	Description	Price
aluminum
BAINRPR-M55-33.40	Nylon Round Pipe Rolls for a R-M55 1"" schedule 40 pipe	$900.00
BAINRPR-M55-42.16	Nylon Round Pipe Rolls for a R-M55 1-1/4"" schedule 40 pipe	$900.00
BAINRPR-M55-48.26	Nylon Round Pipe Rolls for a R-M55 1-1/2"" schedule 40 pipe	$900.00
BAINRPR-M55-60.3	Nylon Round Pipe Rolls for a R-M55 (2"") outside diameter	$900.00
BAINRTR-M55-19.05	Nylon Round Tube Rolls for a R-M55. (3/4"") outside diameter	$900.00
BAINRTR-M55-22.23	Nylon Round Tube Rolls for a R-M55. (7/8"") outside diameter	$900.00
BAINRTR-M55-25.4	Nylon Round Tube Rolls for a R-M55. (1"") outside diameter	$900.00
BAINRTR-M55-31.75	Nylon Round Tube Rolls for a R-M55. (1 1/4"") outside diameter	$900.00
BAINRTR-M55-38.1	Nylon Round Tube Rolls for a R-M55. (1 1/2"") outside diameter	$900.00
BAINRTR-M55-44.45	Nylon Round Tube Rolls for a R-M55. (1-3/4"") outside diameter	$900.00
BAINRTR-M55-50.8	Nylon Round Tube Rolls for a R-M55. (2"") outside diameter	$900.00
STEEL
BAINSTR-M55-50.8	Steel Round Pipe Rolls for R-M55. This tooling is for 1/2"" Pipe	$900.00
BAISRPR-M55-26.67	Steel Round Pipe Rolls for R-M55. This tooling is for 3/4"" Pipe	$900.00
BAISRPR-M55-33.4	Steel Round Pipe Rolls for R-M55. This tooling is for 1"" Pipe	$900.00
BAISRPR-M55-42.16	Steel Round Pipe Rolls for R-M55. This tooling is for 1-1/4"" Pipe	$900.00
BAISRPR-M55-48.26	Steel Round Pipe Rolls for R-M55. This tooling is for 1-1/2"" Pipe	$900.00
BAISRPR-M55-60.325	Steel Round Pipe Rolls for R-M55. This tooling is for 2"" Pipe	$900.00
BAISRTR-M55-19.05	Steel Round Tube Rolls for a R-M55 (3/4"") outside diameter	$900.00
BAISRTR-M55-25.4	Steel Round Tube Rolls for a R-M55 (1"") outside diameter	$900.00
BAISRTR-M55-31.75	Steel Round Tube Roll for a R-M55 (1-1/4"") outside diameter	$900.00
BAISRTR-M55-38.1	Steel Round Tube Rolls for a R-M55 (1-1/2"") outside diameter	$900.00
BAISRTR-M55-44.45	Steel Round Tube Roll for a R-M55 (1-3/4"") outside diameter	$900.00
BAISRTR-M55-50.8	Steel Round Tube Roll for a R-M55 (2"") outside diameter	$900.00
BAISRTR-M55-57.15	Steel Round Tube Roll for a R-M55 (2-1/4"") outside diameter	$900.00
BAISRTR-M55-63.5	Steel Round Tube Roll for a R-M55 (2-1/2"") outside diameter	$900.00
BAISSTR-M55-12.7	Steel Square Tube Rolls for a R-M55 Square tubing size is (1/2"").	$900.00
BAISSTR-M55-19.05	Steel Square Tube Rolls for a R-M55 Square tubing size is (3/4"").	$900.00
BAISSTR-M55-22.225	Steel Square Tube Rolls for R-M55 7/8"" Square tubing	$900.00
BAISSTR-M55-25.4	Steel Square Tube Rolls for a R-M55 Square tubing size is (1"").	$900.00
BAISSTR-M55-31.75	Steel Square Tube Rolls for a R-M55 1-1/4"" Square Tubing	$900.00
BAISSTR-M55-38.1	Steel Square Tube Rolls for a R-M55 1-1/2"" Square Tubing	$900.00
BAISSTR-M55-50.8	Steel Square Tube Rolls for R-M55 T 2"" Square Tubing	$900.00
