Baileigh PR-514 Plate Roll

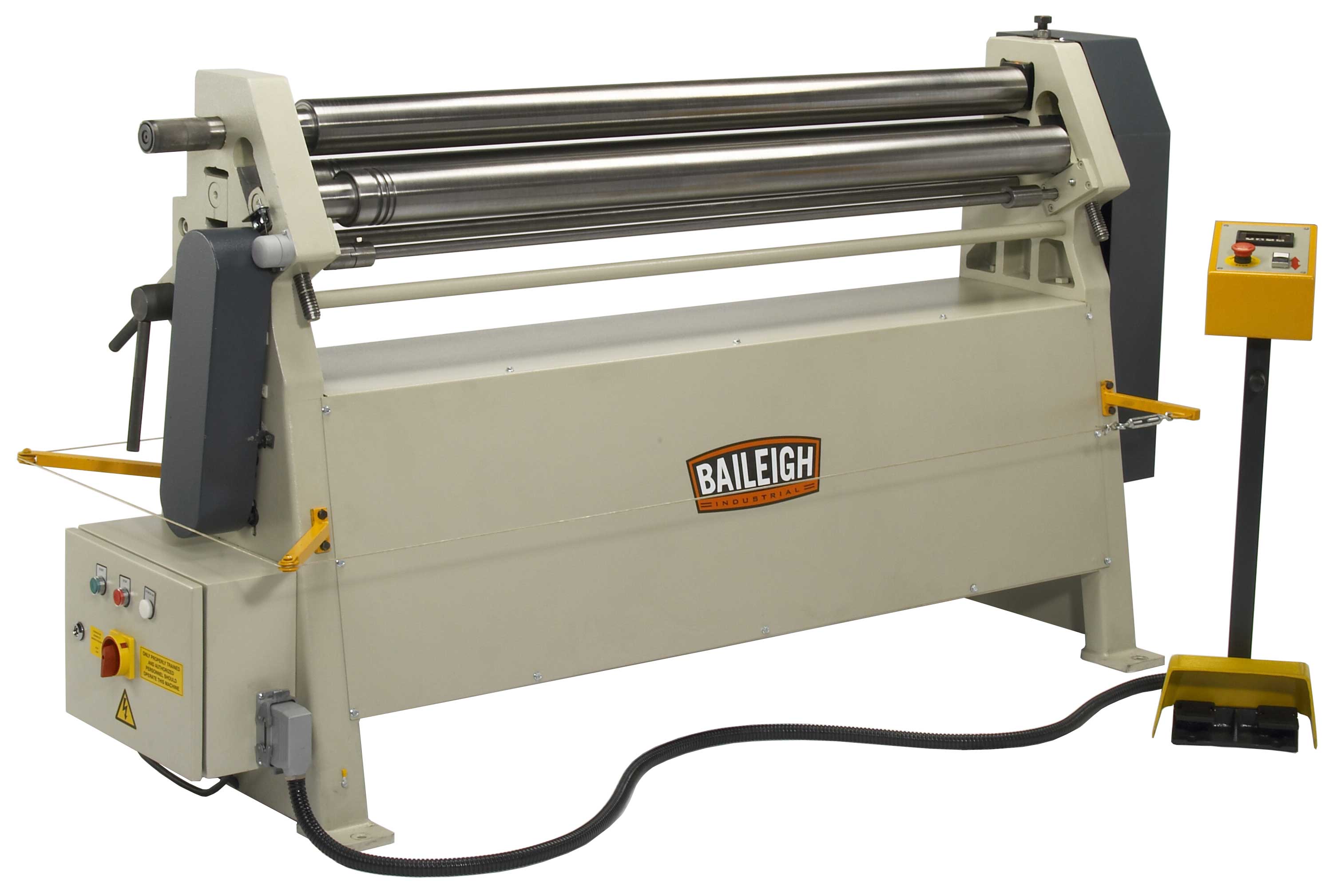

Baileigh PR -514 Powered Plate Roll

Baileigh sheet metal equipment always offers great value in its line of machinery, that's why we specifically sell the PR-514 with the motorized back roll and digital positioning readout display to allow for repeatable bends time and time again. The operator console is remote so the operator can move to the best position to properly run the machine. This console has foot pedal controls, and houses the buttons for advancing or retracting the back roll position. An emergency stop button is in the remote console and there is a E-Stop perimeter wire that circles the machine. Simplicity in design allows for a great fabrication experience.


Baileigh's PR-514 plate roll is the perfect plate roll bender for small and medium rolling applications. This sheet metal forming machine has a useful width of 5' and has a capacity of 14 gauge mild steel sheet metal. The machine has a rugged frame that allows no deflection across the useful width, even at maximum capacity. The rollers are induction hardened to allow years of useful life that also helps in eliminating any possible deflection. The rolls also have three wire grooves. This plate roll bender has a 3-1/2 HP motor that has a direct gear drive system allowing for a sure transfer of power that reduces slipage. This machine has power requirements of 220 volt, three phase, 60 hertz. The top roller has an outside diameter of 3-1/2" and with the right material and thickness can roll as tight as 1-1/2 times the top roll. Having a useful width of 5' is perfect when the fabrication project requires rolling 4'x8' sheets. This size also allows for rolling cones or funnel shapes. Bending capacities of 14GA aluminum and mild steel are easily accomplished, as well as up to 18GA stainless steel.
