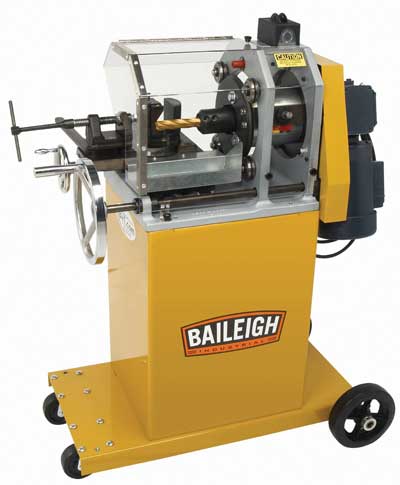

TN-800 End Mill Tube & Pipe Notcher
The TN-800 is the perfect notching
machine for the fabricator who needs to cope or fish mouth
the ends of tube at 90 degrees our variable angles for
applications such as hand railing, chassis and much more.
This end mill style notcher is the only one on the market
that requires only one end mill to notch all the way up to
3" OD. It employs a very unique design where the operator
dials in the OD that they wish to notch to. So, if the
operator needs to work with 1-1/4" Schedule 40 for a hand
railing application he or she would simply dial in 1.660"
and the machine will change its eccentric path and produce a
perfect notch. This patented feature saves the fabricator
thousands of dollars every year in tooling costs. No other
end mill style notcher has this profitable feature.
The Baileigh TN-800 pipe notcher uses
a sturdy ductile iron cast frame that weighs in at close to
500 lbs. A heavy frame reduces vibration allowing for faster
notches and longer tooling life. Attention to detail in the
design will benefit the serious fabricator for decades of
use. The rugged notching vise uses a V-Block design that
allows the part to stay on center with the cutter, as well
as it provides a better hold for round profiles. There is an
offset adjustment when this type of cope is required. This
tube notchers vise has a quick release taper lock system
that allows it to be adjusted to a new angle in seconds,
saving time and money. |
