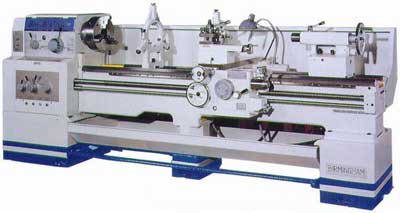

CP Tools DL-2240/60/60/120 DL-2640L/60L/80L/120L Series Lathes

FEATURES:
  • 10 HP Main motor
  • 49 Kinds of inch threads
  • 16 Speeds from 16-1,600 RPM
  • D1-8 Camlock with 3 1/8" spindle bore
  • Handwheel can be disengaged rapidly
  • Main psnidle hardened precision ground
  • Bed made of find grain high tensile cast iron
  • Bedways induction hardened & precision ground
  • All gears & shafts hardened & precision ground
  • 4-Way rapid traverse to carriage & cross slide
  • Automatic lubrication system in headstock & feed box
  • main spindle supported at 3-point by precision bearings
  • Full length foot brake, quick and reliable in action
High Speed Precision Engine Lathes
  • Swing over bed 22"/26"
  • Between centers: 40"/60"/80"/120"
  • Width of bed 16"
  • 10 HP main motor 220V/440V 30
  • 49 kinds of inch threads
  • 16 speeds from 16-1600 RPM
  • D1-8 camlock with 3 3/16" spindle bore
  • Handwheel can be desengaged rapidly
  • Main spindle hardened precision ground
  • Bed made of fine grain high tensilbe cast iron
  • Bedways induction hardened & precision ground
  • 4-ways rapid traverse to carriage & cross slide
  • Automatic lubrication system in headstock & feed box
  • Main spidle supported at 3-points by precision bearings
  • full length foot brake, quick and reliable in action
STANDARD EQUIPMENT:
  • 12" 3-Jaw chuck
  • Steady rest (8")
  • Removable gap
  • 4-Way rapid travel
  • Coolant system
  • Face plate
  • Worklight
  • Auto feed stops
  • Follow rest
  • Splash guard
  • Tool box
  • 16" 4-Jaw chuck
  • 4-Way tool post

SPECIFICATIONS
ITEM / MODEL DL-22120-2280-2260-2240 DL-26120L/80L/60L/40L
Max. swing over bed 560mm (22") 660mm (26")
Max. length of workspiece 120" / 80" / 60" 40" 120" / 80" / 60" / 40"
Max. swing over carriage 330mm (13") 432mm (17")
Max. seing in gap 810mm (32") 911mm (36")
Width of bed 15-1/2" 15-1/2"
Spindle nose D1-8 D1-8
Diameter of spindle bore 80mm (3 9/64") 80mm (3 9/964")
Taper hole in spindle MT. NO. 5 MT. NO. 5
Spindle speeds (16 speeds) 16-1600 RPM 16-1600 RPM
Longitudinal feeds 0.0015 - 0.0772 IN./R. (54) 0.0015 - 0.0772 IN. / R. (54)
Cross feeds 0.0006 - 0.0303 IN. / R. (54) 0.006 - 0.0303 IN. / R. (54)
Metric threads 0.5 - 80mm (37 kinds) 0.5 - 120mm (56 kinds)
Inch threads 80 - 7/16 TPI (49 kinds) 80 - 7/16 TPI (49 kinds)
Module threads 0.25 - 40mm (32 kinds) 0.25 - 60mm (47 kinds)
Diametral threads 160 - 7/8 D.P. (42 kinds) 160 - 7/8 D.P. (42 kinds)
Tool post swivelling angle ±45° ±45°
Max. travel of cross slide 348mm (13 3/4") 380mm (15")
Max. travel of upper slide 150mm (6") 150mm (6")
Diameter of center sleeve 75mm (3") 75mm (3")
Taper in center sleeve MT. NO. 5 MT. NO. 5
Max. work piece weight (Lbs) 1100 Lbs 1100 Lbs
Max. travel of center sleeve 150mm (6") 150mm (6")
Power of main motor 10 HP 10 HP
Power of collant pump motor 1/8 HP 1/8 HP
Overall dimension (L x W x H) 191" / 151" / 132" / 112" x 45" x 67" 191" / 151" / 132" / 112" x 45" x 71"
N.W. (lbs) approx. 5700 / 5300 / 5100 / 5000 5800 / 5400 / 5200 / 5100
G.W. (lbs) approx. 7500 / 7000 / 6800 / 6700 7600 / 7100 / 6900 / 6800

2000serieslathes_sm.jpg CPTDL-2240
$14,194.41 $12,960.00
"22""X40"" D1-8, 16SPD, 10HP 3 3/16"" BORE :::::::: FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!**"""

CPTDL-2260
$15,245.85 $13,920.00
"22""X60"" D1-8, 16SPD, 10HP 3 3/16"" BORE :::::::: FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!**"""

CPTDL-2280
$16,165.86 $14,760.00
"22""X80"" D1-8, 16SPD, 10HP 3 3/16"" BORE :::::::: FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!**"""

1840.1860.1880_sm.gif CPTDL-26120
$32,594.58 $29,164.80
"26""X120"" D1-11, 18SPD, 20HP 4 1/8"" BORE :::::::: FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!**"""

CPTDL-26120L
$19,188.74 $17,520.00
"26""X120"" D1-8, 16SPD, 10HP 3 3/16"" BORE :::::::: FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!**"""

CPTDL-2660L
$17,480.16 $15,960.00
"26""X60"" D1-8, 16SPD, 10HP 3 3/16"" BORE :::::::: FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!**"""

CPTDL-2680L
$18,400.17 $16,800.00
"26""X80"" D1-8, 16SPD, 10HP 3 3/16"" BORE :::::::: FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!**"""
