VMC-105E
Semi Enclosure
|
VMC-85E
Full Enclosure
|
Standard Features
 8,000
RPM spindle speed
Rigid
tapping feature
Turcite
coated surfaces
Hardened
and ground ways
Auto
lube system with alarm
Flood
coolant & Halogen light
Auto
power off & chip air blast |
Heavy
duty meehanite casting
Laster
caliration & ball bar test
16
piece pull-stud for tool holder
16
tools "GENOVA" type ATE system
Stainless
steel way covers on Y axis (F/B)
Fully
enclosed electrical cabinet with cooler |
 |
|
Specifications |
| Model |
VMC-50S |
VMC-65E |
VMC-65S |
VMC-85E |
VMC-85S |
VMC-105E |
| Table size |
15 1/8" x 27
1/2" |
15 1/8" x 33
1/2" |
16 3/4" x 33
1/2" |
16 3/4" x 41
1/4" |
20 1/2" x 41
1/4" |
20 1/2" x 49
1/4" |
| T-slot
(width x diam x no) |
45/64" x 3 1/8" x 4 T-slot |
45/64" x 3 1/8" x 5 T-slots |
| Table load
cap. |
660 lbs |
770 lbs |
1000 lbs |
1100 lbs |
1300 lbs |
1800 lbs |
|
Travels |
| X,Y,Z travel |
20" x 18
1/8" x 19 3/4" |
25 1/2" x 18
1/8" x 19 3/4" |
20" x 19
3/4" x 19 3/4" |
33 1/2" x 19
3/4" x 19 3/4" |
33 1/2" x
22" x 20 1/2" |
42 1/4" x
22" x 20 1/2" |
| Positioning
accuracy |
.0001"/12" |
|
Repeatability x,y,z axis |
.00010 |
| Spindle nose
to work table |
3 3/16"-22 7/8" |
5 3/16"-24 7/8" |
6 3/16"-26 5/8" |
|
Spindle |
| Spindle Nose |
Cat #40 (optional BT#40, or Din #40, 69871, 69872) |
| Spindle
speed |
60-8000 rpm without spindle oil cooler/optional 60-10,000
rpm w/spindle oil cooler |
| Change of
speeds |
AC spindle motor inverter drive |
| Coolant thru
spindle |
Only available for DIN #40 69871 from 8 tool holder |
| Spindle
diameter |
2 9/16" |
|
Feeds |
| Feed rate |
.04"-197"/min. |
| Rapid
transfer |
x/y=39'/min;Z=33' |
|
Tool changer |
| Tool storage
capacity |
Genova type 16 ATC. (opt. arm type 20 ATC) |
| Max tool
diameter |
3 1/8" |
| Tool
selection |
Bi-directional random, shortest path |
| Max. tool
weight |
15.4 lbs |
|
Drive motor |
| AC spindle
motor |
7 1/2 hp cotinuous/ 10 hp 30 minutes |
10 hp continuous/15 hp 30 minutes |
| X,Y ,Z servo
motors |

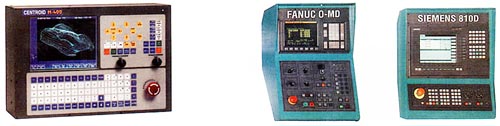

40 lbs DC Servo Motor with Centroid control, 0.5 kw-3.5 kw
AC Sservo motors with other control |
|
Coolant/flushing motor |
1/4 hp-CH4-20 |
| Chip
conveyor motor |
1/4 HP |
1/4 HP |
1/4 HP |
1/4 HP |
1/4 HP |
1/4 HP |
|
Dimensions & Weight |
|
Semi-enclosure |
124" x 103"
x 99" |
~~~~~ |
~~~~~ |
136" x111" x
101" |
~~~~~ |
138" x 119"
x 101" |
|
Full-enclosure |
117" x 108"
x 99" |
125" x 108"
x 99" |
139" x 120"
x 101" |
147" x 120"
x 101" |
159" x 124"
x 101" |
173" x 124"
x 101" |
| Net weight,
lbs |
6800 |
7500 |
8500 |
9300 |
10,000 |
11,000 |
