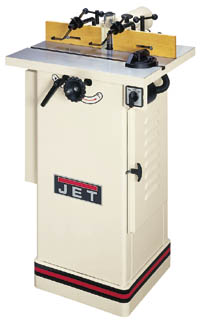

1-1/2 HP Closed
Stand Woodworking Shaper
-
Powerful 1-1/2 HP
totally enclosed fan cooled, reversing, single phase motor
-
Extra large solid cast
iron work surface for additional work space
-
Heavy duty one piece
steel stand with motor cover for stability
-
Safe, accurate spindle
height adjustments are possible with a handwheel and spindle lock
-
Two reversible spindle
speeds add to the shapers versatility
-
Left and right fences
are independent that feature micro adjustment and no clearance capabilities
-
Adjustable workpiece
hold downs are mounted to fence
-
Spindle lock to make
removing cutters easier and quicker
|

|
|
Specifications |
| Stock
Number: |
708320 |
| Model: |
JWS-22CS |
| Spindle
Speeds (RPM): |
7,000
& 9,000 |
| Reversing
Table Size (WxD/in): |
22-3/8
x 18-1/8 |
| Table
T-Slot (in): |
3/8
x 3/4 |
| Table
Opening Diameter (in): |
5-1/4 |
| Insert
Opening Diameter (2/in): |
1-5/8
& 3-1/4 |
| Fence
Size (2/in): |
9-3/4
x 3-1/4 |
| Spindle
Size (in): |
1/2
& 3/4 |
| Under
Nut (in): |
(1/2)
2-3/16 (3/4) 2-3/16 |
| Router
Bit Collet Size (in): |
1/4
& 1/2 |
| Spindle Travel (in): |
1-7/16 |
| Table
Height (in): |
33
1/4 |
| Overall
Dimensions (WxDxH/in): |
23 x
25 x 40 |
| Motor (TEFC): |
1-1/2
HP, 1 Ph 115/230V Prewired 115V |
| Net
Weight (lbs): |
190 |
|
Standard
Equipment
-
1/2" and 3/4"
interchangeable spindles
-
1/2" and 1/4" router bit
collets
-
Two table inserts
-
Two starting pins
-
Work piece hold-downs
-
Mitre gauge
-
Micro-adjustable fence
-
One piece heavy-duty closed
stand
-
Cutter guard
-
4" dust chute
|
| |
