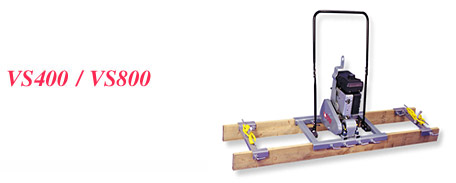

Smooth, Uniform Consolidation From Center Vibratory Action.
Stone Power Screeds can be easily operated by one person and are available in
several different engine configurations to match the job you need done. Center
for vibratory action is transmitted throughout the beams for uniform
consolidation.
Central power unit easily clamps to 2'' x 6'' or 2'' x 8''
screed boards.
Two models are job-matched for low slump or high slump
applications.
Adjustable handle allows you to use the screed in either
direction.
Optional, two beam spreader with guide cable and grip allows
you to work with screed board lengths over 15 feet.
SPECIFICATIONS
Model
VS400
VS800
Dimensions
Operating
Weight (kg)
116
lbs. (52,71)
122
lbs. (55,5)
134 lbs. (61)
Beam
Length (m)
Up to
15 ft. (4,6)
Up to
30 ft. (9,1)
Operating
System
Engine
(kw)
3.5 hp
B&S (2,6)
5 hp B&S (3,7)
5.5 hp Honda (4,1)
5.5 hp
B&S (3,7)
5.5 hp B&S I/P (3,7)
5.5 hp Honda (4,1)
