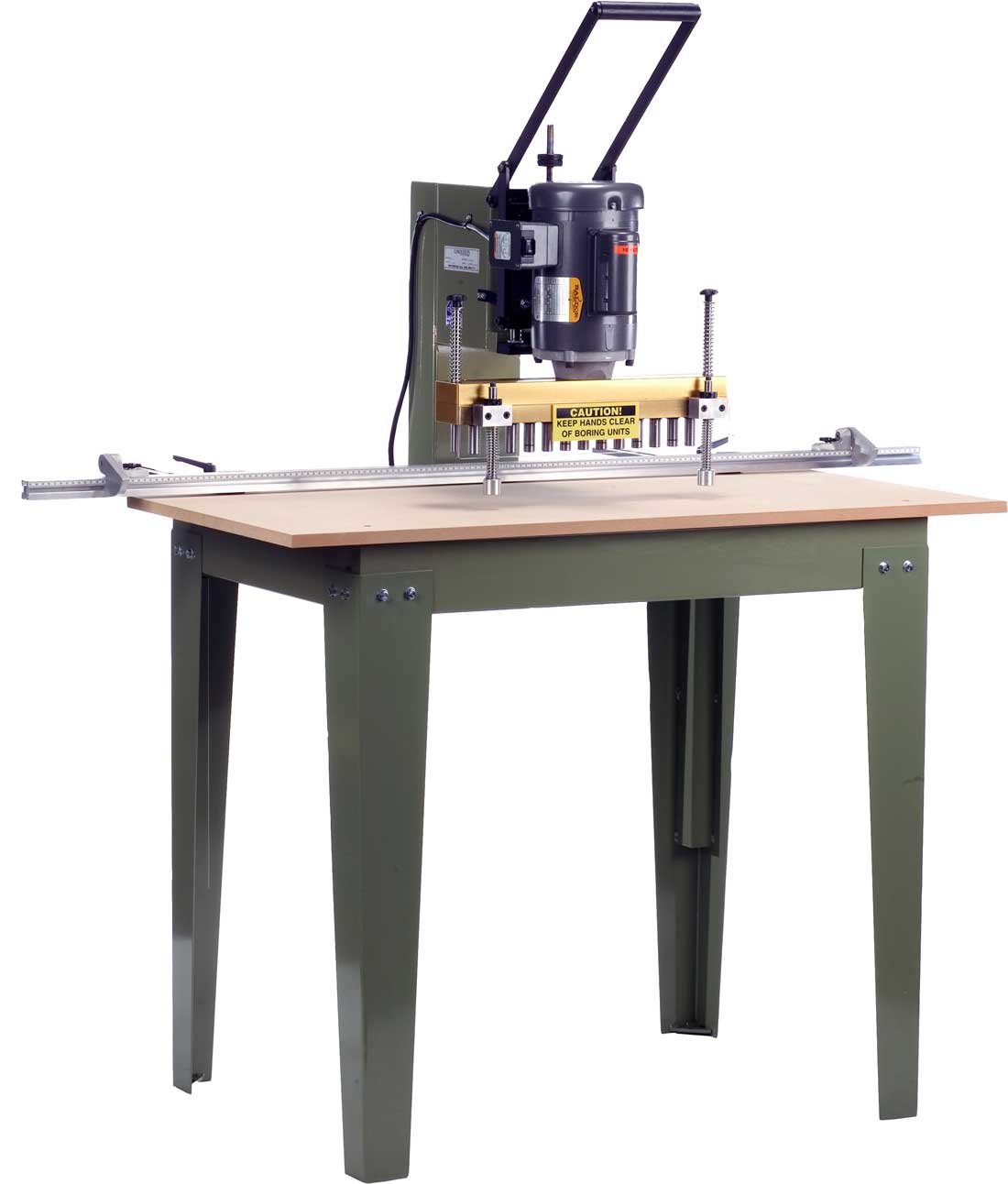

Conquest 13 Spindle Line Borer


Click on image to enlarge


Why a Conquest "Standard" 13?

  • Simple To Operate.

  • 64" Fence Capacity.

  • 2 Spring Loaded Index Pins.

  • 2 Spring Loaded Hold Downs.

  • 2 Heavy Duty Cast Flip Stops.

  • Heat Treated Steel Helical Gears.

  • 12" Throat Opening (capacity to drill from edge of board).

  • TEFC BALDOR Motor, Dust Protected & 3,450 rpm For Quick, Easy & "Clean" Drilling.

  • Available With Pneumatic Operation.

  • Available Hinge Boring Attachment With 2-Minute Change Over!

Standard Specifications

  • Stand.

  • 64" fence capacity with 2 flip stops. (optional 30" extensions.)

  • 13-spindle line boring head with steel heat treated helical gears

Features & Specifications
  • One 13 spindle drill head with steel gears
  • Drill head operated by hand lever
  • Spring loaded index pins
  • 64" fence length
  • 47" x 21" solid wood working table
  • Working table height = 37.5"
  • Center distance between spindles = 1-7/8"
  • 64" fence with two flip stops
  • Additional Flip Stops and Fence Extensions Available
  • Center distance between spindles = 1-7/8"
  • Maximum drilling depth = 4.75 mm
  • Maximum drilling depth from edge = 12"
  • Manual controls (Pneumatic as option)
  • Spindle speed = 3450 rpm
  • Center distance between first & last drill spindles = 15"
  • Drill spindle accepts 10 mm shank bits/7 right - 6 left
  • Motor = Baldor 1Hp - 115/230V [15/7.9-7.5 Amps] 60 cycle - Single Phase
  • 47" x 25-1/4" floor space required (64" x 25-1/4" with extensions)
  • Machine weight (approx.) 330 pounds/ 380 pounds crated
  • One Year Warranty on workmanship and manufacturing

conquest/1-13BoringMachine_sm.jpg CONBO161
$2,695.00 $2,526.56
"_ ""STANDARD 13"", 64"" FENCE & 2 FLIP STOPS - OPT. HINGE UNIT (***OTHER OPTIONS UNDER MINI) MANUAL 115V, SINGLE PHASE +++> Call 1-800-458-3687 for a Freight Rate on this Item! "

CONBO162
$2,745.00 $2,573.44
"_ ""STANDARD 13"", 64"" FENCE & 2 FLIP STOPS - OPT. HINGE UNIT (***OTHER OPTIONS UNDER MINI) MANUAL 230V, SINGLE PHASE +++> Call 1-800-458-3687 for a Freight Rate on this Item! "

CONBO151
$3,395.00 $3,182.81
"_ ""STANDARD 13"", 64"" FENCE & 2 FLIP STOPS - OPT. HINGE UNIT (***OTHER OPTIONS UNDER MINI) PNEUMATIC 115V, SINGLE PHASE +++> Call 1-800-458-3687 for a Freight Rate on this Item! "

CONBO152
$3,445.00 $3,229.69
"_ ""STANDARD 13"", 64"" FENCE & 2 FLIP STOPS - OPT. HINGE UNIT (***OTHER OPTIONS UNDER MINI) PNEUMATIC 230V, SINGLE PHASE +++> Call 1-800-458-3687 for a Freight Rate on this Item! "
