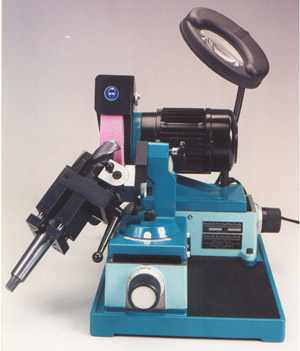

Drill Grinding Machine
Ø 3 - 60 mm (Ø
.03 - 2.4 ")
Fast, easy handling. Patented reversing prism system that
guarantees the highest possible accuracy and cutting edge symmetry. Works
on all kinds of drill bits (including Special bits) Stepdrill bits, Center
bits for sheet metal and wood, Cutters, Milling Cutters, Roughers a.s.o.
High-Speed Steel (HSS), Chrome Vanadium (CV), Tungsten Carbite e.c.t.
Specifications:
| Range |
Ø
3 - 60 mm
(Ø 0.03 - 2.4 ") |
| Grinding Wheel Diameter |
Ø
200 mm
7.8 " |
| Grinding Wheel |
Corundum |
| Motor |
400 V, 50 cy, 0.25 kW with
compound slide rest
(also available in 100 V, 50 cy, 0.18 kW
230 V, 50 cy, 0.18 kW) |
| Revolutions |
2840 min
-1 |
| Dimensions |
450 x 450 x 650 mm |
| Net Weight |
57 kgs (125 lbs.) |
| Drill-top angle |
Adjustable for all kinds of materials |
| Relief-angle |
Stepless - negative - zero and positive all
angles depends on the material |
Extras:
| 5BS02060 |
Prism clamp
Ø 40 - 60 mm |
| 5BS08000 |
Diamond grinding wheel
Ø 200 mm including
support |
| 5BS09000 |
Cooling system for compressed air connection |
| 5BS07000 |
Grinding wheel dresser including rotating
diamond |
| 5BS05000 |
Optica system (lens lightened) |
| Depends on Grit |
Spare grinding wheel
200 x 40 x 51 mm
Corundum grit 60, 100, 180
Silicon grit 60, 80, 120 |
| Depends on Grit |
Spare grinding wheel
200 x 20 x 51 mm
Corundum grit 60, 100, 180 |
| Depends on Grit |
Spare grinding wheel
200 x 8 x 51 mm
Corundum grit 60, 100, 180 |
| 5BS04000 |
Grinding wheel fixture (cone)
suitable for all grinding wheels above |
| 5BS13999 |
Distancering for grinding wheels pos. 7 |
| 5BS23999 |
Distancering for grinding wheels pos. 8 |
| 5BS06000 |
Depth stop for milling cutter (magnet) |
| 5BS06100 |
Cutting rost for cutters |
| 5BS06200 |
Rear stop for extra long machine drill bits |
| 5BS10000 |
Machine stand |
| 5BS09100 |
Adaptor for dust exhaust |
| 5BS99999 |
Support sleeve for short MK-bits each MK1,
MK2, MK3 |
|
