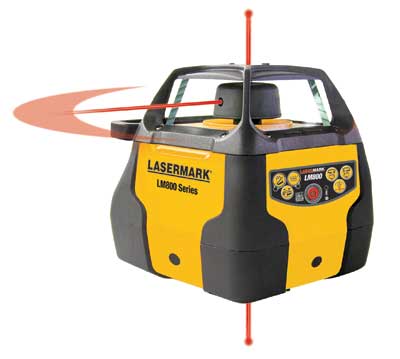

CST LM800 Rotary Laser Level

LM800

Dual-Beam with Self-Leveling in Horizontal, Vertical

LM800 is the ultimate designed dual beam, dual slope rotary laser with horizontal and vertical self-leveling and many features to make the instrument ideal for all indoor and outdoor jobs. The LM800 is ideal for outdoor leveling and grading jobs with dual-slope capability up to 10%

  • Anti-Drift System to signal operator when unit is moved out of position
  • Variable speed rotation
  • Sweep Mode– present angles
  • CW and CCW Head Positioning for fast and easy alignment in vertical/horizontal applications
  • Battery Level Indicator– so you don’t run out of power at the wrong time
  • Pro Grade Motorized Electronic Self-Leveling for speed and convenience
  • Heavy Duty Glass enclosed beacon and sealed housing is water/dust-proof (IPX7) to ensure years of dependability
Technical Specifications
Laser Diode: 635nm "Standard"
Accuracy– Horizontal: ±1/16" @ 100' (±1.5mm @ 30m)
Accuracy– Vertical: ±1/8" @ 100' (±3mm @ 30m)
Range: Up to 2800' (850m) Diameter with Detector
Leveling Type: Fully electronic Servo motor-driven horizontal and vertical self-leveling, ±5º
Grade/Slope: Dual Slope up to 10%
Environment: Water and Dust Proof, IP-X7
Power: Ni-MH rechargeable battery pack with charger
Warranty: 2 yr.

LM800GR

Single-Beam Horizontal Self-Leveling Rotary Laser



The world's best value for rugged automatic electronic self-leveling lasers. Visible beam laser means one investment for both general construction and interior work. Pays for itself job after job.



  • Single speed rotation with dual slope capability up to ±10%
  • Anti-Drift System to signal operator when unit is moved out of position
  • Battery Level Indicator– so you don’t run out of power at the wrong time
  • Pro Grade Motorized Electronic Self-Leveling for speed and convenience
  • Heavy Duty Glass enclosed beacon and sealed housing is water/dust-proof (IPX7) to ensure years of dependability
Technical Specifications
Laser Diode: 650nm
Accuracy– Horizontal: ±1/16" @ 100' (±1.5mm @ 30m)
Range: Up to 2800' (850m) Diameter with Detector
Leveling Type: Fully electronic Servo motor-driven horizontal and vertical self-leveling, ±5º
Grade/Slope: Dual Slope up to 10%
Environment: Water and Dust Proof, IP-X7
Power: Ni-MH rechargeable battery pack with charger
Warranty: 2 yr.



Cat#: LD400
Detector
V-Mount Tripod Rod Glasses Target Remote Ni-MH
Battery/Charger
Carrying Case
Packages Available -
Also Includes

LM800GR

57-LM800GR
(Standard Package)

57-LM800GRPKG
(Complete Package)

57-LM800GRPKG-3
(Complete Tri-Case Package)

(Tricase)

LM800

57-LM800I
(Interior Package)
      (x2)
57-LM800DI
(Detector Package)
    (x2)
57-LM800PKG
Complete Package)
(x2)

cst/new_57-LM800GRPKG_sm.jpg CST57-LM800GRPKG
$873.00 $850.85
LM800 Grade Complete Package (Horiz. Only) Includes Remote, LD400 Detector, Aluminum Tripod, and Rod >>> Southern Tool Special: FREE Ground UPS on this item anywhere in the continental USA!

cst/tml100.jpgFREE: Bosch Digital Laser Rangefinder (DLR165K)
Southern Tool Special: FREE FREIGHT On This Order!


cst/new_57-LM800PKG_sm.jpg CST57-LM800PKG
$1,295.00 $1,179.97
"LM800 Complete Package, Includes: Remote, Laser Glasses, (2) Magnetic Targets, V-Mount, LD400 Detector w/Clamp, 2-”AA” Batteries, 9V Battery, NiMH Battery Pack and Charger, Alum. Tripod, 8-ft Rod, Carrying Case, User’s Manual :::: Southern Tool Special: FREE Ground UPS on this item anywhere in the continental USA"

cst/new_57-LM800I_sm.jpg CST57-LM800I
$1,095.00 $966.64
"LM800 Interior Package, Includes: Remote, Laser Glasses, (2) Magnetic Targets, V-Mount, 2-”AA” Batteries, NiMH Battery Pack and Charger, Carrying Case, User’s Manual :::: Southern Tool Special: FREE Ground UPS on this item anywhere in the continental USA"

cst/new_57-LM800DI_sm.jpg CST57-LM800DI
$1,195.00 $1,099.97
"LM800 Interior-Detector Package, Includes: Remote, Laser Glasses, (2) Magnetic Targets, V-Mount, LD400 Detector w/Clamp, 2-”AA” Batteries, 9V Battery, NiMH Battery Pack and Charger, Carrying Case, User’s Manual :::: Southern Tool Special: FREE Ground UPS on this item anywhere in the continental USA"

cst/new_57-LM800GR_kit_sm.jpg CSTLM-800GR
$824.95
 Dual-Slope Horiz. Rotary Laser, Includes Remote, LD400 Detector and Case (Horiz. Only), >>> Southern Tool Special: FREE Ground UPS on this item anywhere in the continental USA!


cst/new_57-LM800GRPKG-3_sm.jpg CST57-LM800GRPKG-3
$1,195.00 $994.87
LM800GR Tri-Case Package, Includes Remote, Ni-MH Battery/Charger, LD400 Detector, Aluminum Tripod, Rod and Tri-case >>> Southern Tool Special: FREE Ground UPS on this item anywhere in the continental USA!
