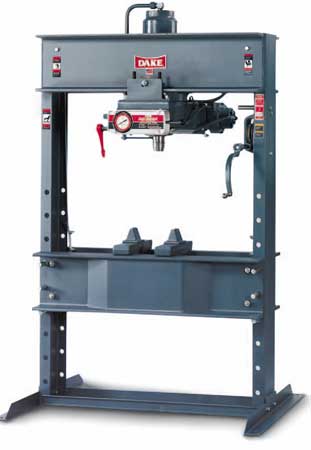

DAKE Elec-Draulic I Presses

Elec-Draulic Hydraulic Presses

An advanced design, single-acting press with fingertip control.

  • Electric operation provides smooth, consistent pressing action.

  • Single-acting cylinder provides fast, reliable pressing and internal spring return.

  • Rapid ram approach quickly moves ram to work to save production time.

  • Variable ram speed allows fingertip control of ram movement for precise pressure control.

  • Movable workhead is roller mounted on ball bearings for off- center work.

  • Rapid ram return starts ram return as soon as release valve is opened and may be stopped at any point by closing the valve.

  • Safety valve protects against overloads.

  • Stroke indicator ensures accurate ram control.

  • Adjustable table permits easy vertical movement by means of self-locking hoist.

Models
5-025- 25 ton capacity
5-050- 25 ton capacity
5-075- 50 ton capacity
5-150- 50 ton capacity
5-200- 75 ton capacity


Standard Equipment
  • Frame
  • Workhead
  • Two forged steel V-blocks
  • Two forged steel table plates
  • Flat ram nose
  • V-ram nose
  • Motor 2, 3 hp 230/460-3-60
  • Stroke indicator
  • Pressure gauge
  • Safety relief valve
  • Self-locking table hoist
Specifications
Model Capacity
(tons)		 Ram Speed HorsePower RPM
Advance Press
5-025 25 80 14 2 1800
5-050 50 40 7 2 1800
5-075 75 28 5 2 1800
5-150 150 16 2 3/4 2 1800
5-200 200 16 2 3/4 2 1800







DAKE905025-2
$11,200.00 $10,864.00
"25-ton Elec-Draulic I Press, 220v, 6.8amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905025-4
$11,200.00 $10,864.00
"25-ton Elec-Draulic I Press, 440v, 3.4amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905026-2
$8,365.00 $8,114.05
"25-ton Elec-Draulic I Workhead, 220v, 6.8amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905026-4
$8,365.00 $8,114.05
"25-ton Elec-Draulic I Workhead, 440v, 3.4amp-3 ph :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905050-2
$12,200.00 $11,834.00
"50-ton Elec-Draulic I Press, 220v, 6.8amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905050-4
$12,200.00 $11,834.00
"50-ton Elec-Draulic I Press, 440v, 3.4amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905051-2
$8,495.00 $8,240.15
"50-ton Elec-Draulic I Workhead, 220v, 6.8amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905051-4
$8,495.00 $8,240.15
"50-ton Elec-Draulic I Workhead, 440v, 3.4amp-3 ph :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905075-2
$13,900.00 $13,483.00
"75-ton Elec-Draulic I Press, 220v, 6.8amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905075-4
$13,900.00 $13,483.00
"75-ton Elec-Draulic I Press, 440v, 3.4amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905076-2
$9,200.00 $8,924.00
"75-ton Elec-Draulic I Workhead, 220v, 6.8amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905076-4
$9,200.00 $8,924.00
"75-ton Elec-Draulic I Workhead, 440v, 3.4amp- 3 ph :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905150-2
$18,700.00 $18,139.00
"150-ton Elec-Draulic I Press, 220v, 6.8amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905150-4
$18,700.00 $18,139.00
"150-ton Elec-Draulic I Press, 440v, 3.4amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905151-2
$11,450.00 $11,106.50
"150-ton Elec-Draulic I Workhead, 220v, 6.8amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905151-4
$11,450.00 $11,106.50
"150-ton Elec-Draulic I Workhead, 440v, 3.4amp -3 ph :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905200-2
$31,900.00 $30,943.00
"200-ton Elec-Draulic I Press, 220v, 9.6amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905200-4
$31,900.00 $30,943.00
"200-ton Elec-Draulic I Press, 440v, 4.8amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905201-2
$24,700.00 $23,959.00
"200-ton Elec-Draulic I Workhead, 220v, 9.6amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE905201-4
$24,700.00 $23,959.00
"200-ton Elec-Draulic I Workhead, 440v, 4.8amp-3 ph :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE908025-2
$12,700.00 $12,319.00
"25-ton Elec-Draulic II Press, 220v, 6.8amp, 2 HP :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE908025-4
$12,700.00 $12,319.00
"25-ton Elec-Draulic II Press, 440v, 3.4amp-3 ph 2 HP :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE908050-2
$15,600.00 $15,132.00
"50-ton Elec-Draulic II Press, 220v, 6.8amp 2 HP :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE908050-4
$15,600.00 $15,132.00
"50-ton Elec-Draulic II Press, 440v, 3.4amp-3 ph 2 HP :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE908075-2
$16,995.00 $16,485.15
"75-ton Elec-Draulic II Press, 220v, 6.8amp 2 HP :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE908075-4
$16,995.00 $16,485.15
"75-ton Elec-Draulic II Press, 440v,3.4amp-3 ph 2 HP :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE908080-2
$18,195.00 $17,649.15
"75-ton Elec-Draulic II Press, 220v, 28amp 10HP :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE908080-4
$18,195.00 $17,649.15
"75-ton Elec-Draulic II Press, 440v, 14amp-3 ph 10HP :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE908150-2
$23,620.00 $22,911.40
"150-ton Elec-Draulic II Press, 220v,28amp 10 HP :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE908150-4
$23,620.00 $22,911.40
"150-ton Elec-Draulic II Press, 440v,14amp-3 ph 10 HP :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE908200-2
$60,000.00 $58,200.00
"200-ton Elec-Draulic II Press, 220v,28amp 7 1/2 HP :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE908200-4
$60,000.00 $58,200.00
"200-ton Elec-Draulic II Press, 440v,11amp-3 ph 7 1/2 HP :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE933400
$24,095.00 $23,372.15
"Gasoline Powered Tire Press, 150-ton :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE933493-4
$23,500.00 $22,795.00
"Electric Powered Tire Press, 150-ton , 440v, 3.4amp-3 ph :::: Call 1-800-458-3687 For Freight Rate On This Item!"


DAKE933587
$18,520.00 $17,964.40
"Air Powered Tire Press, 150-ton :::: Call 1-800-458-3687 For Freight Rate On This Item!"
