An unbeatable combination of cutting
precision and operator convenience for heavy duty high
production.
-
Advanced hydraulic system—regulates
variable head feed rate for hands free cutting and
incorporates a hydraulics on demand system so pump runs only
when vises and head control are in use. It’s quiet and keeps
oil temperature low for trouble free performance.
-
Smart feed system—will multiple feed
9-times up to 16” in single stroke with an accuracy of
0.2mm. Feed length adjusts easily using handwheel and
read-out is conveniently mounted on machine front. Quick
change stock system utilizes a vice with ratchet and pawl,
21/2” hardened rails.
-
Guide arms—are the key to getting
straight cuts so they are vertically mounted for more
rigidity and feature self-adjusted inserts which can be
easily released and tightened with a knurled knob.
-
Cutting data indicator—helps operator
select best blade and head descend speed based on stock
material, size and shape.
-
Vises—quick set ratchet type.
Clamping in front and back of the blade for less than a 2”
remnant and minimized burr.
|

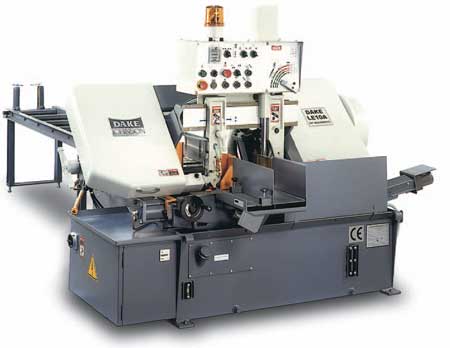

MODEL LE10A |
|
Standard Equipment |
- Hydraulic pump—1 hp
- Coolant pump—Gear type 1/8 hp
- Vises—Quick set ratchet type. Clamping
pressure is 600 lbs.
- Head feed—Hydraulic regulated with rpm
compensation feed back.
- Piece counter—9,999 piece with auto shut
off.
- Rapid head approach—Sure stop
hydraulically controlled.
- System control—PLC
- Warning light
- Chip brush—Speed synchronized.
- Tool kit—Standard screw drivers, wrenches
and allan keys.
- Spare parts—Standard 3 pcs. chip brushes,
guide bearing replacements.
- Work light
- Auger style chip conveyer
- Bundling vertical vise
|
|
