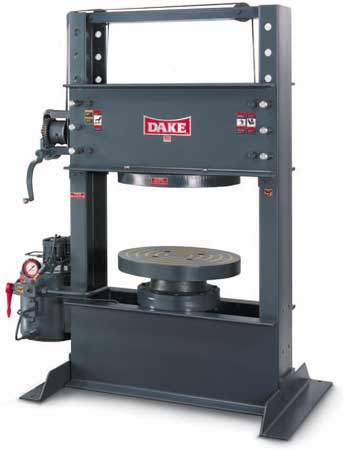

DAKE Tire Presses

Hydraulic Tire Presses

Removes tires from wheels quickly and easily.

  • 150 ton capacity for handling large tires.

  • Large 7 3/4 ram provides platen stability and longer seal life.

  • Upper movable head channel provides 15" of travel for easy set-up.

  • Easily removable pins allow head channel to be set in four different positions.

  • Pressing rings in diameters and face widths for all standard tire sizes.

  • Eliminates outside servicing delays and truck downtime.


Models
33-493-electric powered
33-587-air powered
33-400-gasoline powered


Optional Equipment
  • Larger capacities-available upon request
  • Additional ram stroke
  • Special frame sizes
  • Different size pressing rings
Specifications
Model Capacity
(tons)
Power Ram Speed HorsePower
Press advance return
33-493 150 Electric 2 3/4 Gravity 2
33-587 150 Air 1 1/2 Gravity N/A
33-400 150 Gasoline 7 1/2 Gravity 8 1/4








DAKE933493-2
$23,500.00 $22,795.00
"Electric Powered Tire Press, 150-ton , 220v, 6.8amp :::: Call 1-800-458-3687 For Freight Rate On This Item!"
