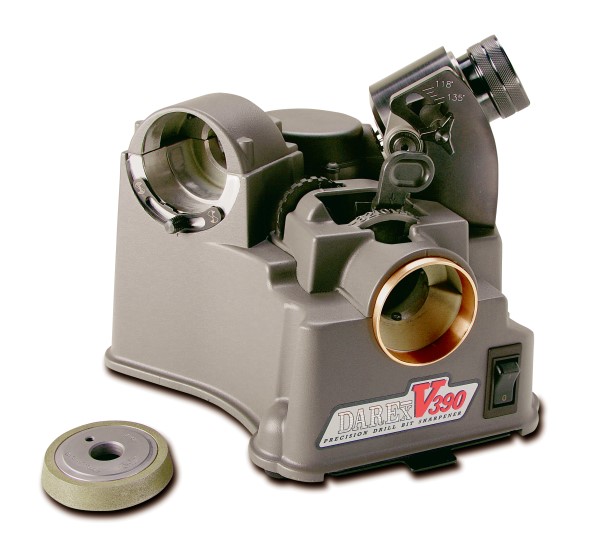

DAREX V-390 Bit Sharpener

Even very small shops can now sharpen their own drills, and keep on working. For the cost of less than 100 drills, you can accurately sharpen your most common drills in under a minute. The Darex V-390 incorporates some of the same technology in our more advanced machines and is the perfect choice for shops that need a sharpener for intermittent use. Its simple, intuitive design gives everyone access to sharp drills when they are needed.


Specifications:

  • Drill Capacity: 1/8"- 3/4" (3-19 mm)
  • Point Angle: 118° - 140°
  • Point Style: Conic and Split Point
  • Power required: 115 V, 4.5 amp , 1/4 hp
  • Size/Weight: 12" x 11" x 9" (30mm x 28mm x 23mm) 24 lbs (11 kg)
  • Borazon (CBN) grinding wheels for HSS
  • Optional diamond grinding wheels available for carbide
Benefits:
  • One wheel performs both sharpening and a split-point operations
  • CBN or diamond wheels available
  • No tools necessary for any adjustments on machine or attachments
  • Vacuum port and grit tray
  • EZ adjustable split depth and split angle
  • Adjustable point splitting
  • Adjustable point relief


DARV390
$1,498.00 $1,310.75
DRILL SHARPENER ---> Call 800-458-3687 For Freight rate!

DARPP11115GF
$159.00 $148.36
V-ANGLE WHEEL - DIAMOND 180 >>>> FREE FREIGHT Only When Ordered with a Drill Bit Sharpener.

DARPP11125GF
$159.00 $148.36
V-ANGLE WHEEL - CBN 180 >>>> FREE FREIGHT Only When Ordered with a Drill Bit Sharpener.


DARSA11604TA
$228.99 $222.12
V-SERIES 1/8-3/4 CHUCK {STEEL KNOB}>>>> FREE Shipping When Ordered with a Darex Sharpner Otherwise SEE UPS Chart!


DARSA11612TA
$159.00 $148.36
STEEL CHUCK KNOB ASSEMBLY >>>> FREE FREIGHT Only When Ordered with a Drill Bit Sharpener.


DARSA11700TA
$258.99 $251.22
VT SHARPENING PORT ASSEMBLY>>>> FREE Shipping When Ordered with a Darex Sharpner Otherwise SEE UPS Chart!


DARSA11610TA
$229.00 $213.68
V390 1/8 - 3/4 CHUCK W/ SLOT >>>> FREE FREIGHT Only When Ordered with a Drill Bit Sharpener.
