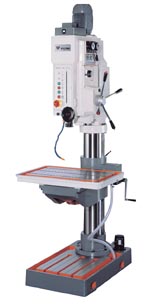

DIRECT DRIVE ROUND COLUMN DRILL PRESSES WITH ELECTRO-MAGNETIC CLUTCH

Standard Features

  • Push button control pane

  • Power feed gear box fitted with an electro­magnetic clutch for power feed engagement and overload protection

  • Heavy duty quill and spindle with manual quill locking

  • Tempered, ground spindle with internal taper mounted in precision bearings for maximum accuracy, minimizing deflection

  • Speed and feed selectors are located on one side of the drill head for convenience and ease of operation

  • Oversized base is precision ground with T-slots for added versatility and stability

  • Coolant tank and pump integrated into base

  • Spindle gear box is equipped with steel hardened, ground, shafts and gears

  • Spindle gear box is internally lubricated in a continuous oil bath for long term smooth operation



Standard Equipment

  • Automatic tool ejector

  • Work light

  • Hand wheel for fine feed

  • Coolant system

ELECTRICAL SPECIFICATIONS

Machine comes standard 220/440v-3 phase, 110v at switch.  Please specify voltage at time of order.



NOTE:  All Wilton Machines are manufactured to ANSI Specifications and use Electrical Components that are manufactured to NEMA Guidelines.  If there are special electrical requirements, other than the Wilton Machinery Standard Electrical Package, at the location of equipment installation due to specific Corporate, City, County, State or other Electrical Regulations, those specifications must be defined to Wilton Machinery prior to acceptance of machine order.

Specifications
Model 2401/2402 2403/2404 2444/2445 2455/2456 2475/2476
Drilling capacity, mild steel 1 3/8  1-3/4 2 2-3/8 2-3/4
Drilling capacity, cast iron 1 1/2




Tapping capacity, mild steel 1 1/2

1-9/16

1-3/4

2

2-1/8

Tapping capacity, cast iron 1 9/16

Quill Diameter (in.)



3.228

3.465

3.465

3.78

Drills to center 28
Morse taper 4MT 4MT 5MT 4MT 5MT
Horse power 2 HP

3HP,220/
440V,3Ph**

4HP, 220/440V, 3Ph**

5-1/2HP, 220/440V, 3Ph**

7-1/2HP,
220/440V, 3Ph**

Speed range 8(112, 160, 245, 358, 532, 762, 1164, 1704) 9 (82, 120, 180, 354, 528,
678, 1026, 1524)
9(55,98,156,
198,346,456, 576, 822, 1338)
12(48,72,96,
144,186, 234,288,360,
480,804, 996, 1278)
12(42,58,86,116,
154, 249,304,412,554,
748, 1098, 1485)
Automatic feeds 3(.004, .007, .010)

.004, .008, .012, .016

.003, .006, .010, .014

.002, .004, .006, .008, .014, .020

.002, .004, .006, .008, .014, .020
Spindle travel 7 9 10 10 11
Spindle to table Min. 1.37”, Max. 30.5 Min 2.75
Max30-1/2
Min2.95
Max
30-1/2
Min2.75
Max
30-1/2
Min
Max
Spindle to base 48 49 50 51 51
Table dimensions 22x 19 22x19 33-1/2x23-1/2 33-1/2x23-1/2 33-1/2x23-1/2
Table T-slot size 1/2 1/2 5/8 5/8 5/8
Table load capacity 575 lbs 575 575 750 750
Center spindle to front of column 14 14 15 16-1/2 16-1/2
Column diameter 6.88

3.228

3.465

3.465

3.78

Overall dimensions 91” x 22” x 37” 50x27x98 53x30x108 53x33x109 55x33x115
Hole making capability small/medium/
large
medium/large medium/large medium/large medium/large
Weight 1279 lbs 1632 2405 2800 2536
 Manual  Download Free


WMH2401
$15,512.00 $14,383.95
"28"", 8-Speed, 2HP, 3Ph, 220/440V, 110V at Switch +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMH2402
$18,030.00 $16,718.90
"28"", 8-Speed, Tapping Control, 2HP, 3Ph, 220/440V, 110V at Switch +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMH2404
$20,159.00 $18,690.76
"28"", 9-Speed, Tapping Control, 3HP, 3Ph, 220/440V, 110V at Switch +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMH2444
$24,304.49 $20,667.08
"30"", 9-Speed, 4HP, 3Ph, 220/440V, 110V at Switch +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMH2445
$22,623.00 $20,977.66
"30"", 9-Speed, Tapping Control, 4HP, 3Ph, 220/440V, 110V at Switch +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMH2455
$24,415.00 $22,640.06
"33"", 12-Speed, 5-1/2HP, 3Ph, 220/440V, 110V at Switch +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMH2475
$24,999.00 $23,180.78
"33"", 12-Speed, 7-1/2HP, 3PH, 220/440V, 110V at Switch +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMH2476
$28,532.00 $26,455.30
"33"", 12-Speed, Tapping Control, 7-1/2HP, 3PH, 220/440V, 110V at Switch +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""

WMH5026601
$124.43 $105.81
"Jacob's Chuck, 3/16"" - 3/4"" Capacity, Socket Back Less Arbor +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States"

WMH5225321
$4,673.75 $3,836.10
"Lead Screw Tapping Attachment, Complete with One Lead Screw Standard, Factory Installed ---> FREE GROUND UPS on the item. *** NOTE: This item can ship either to a Commercial or Residential Address!"

WMH5225341
$3,361.25 $2,758.80
"Automatic Tapping Control Electronic Reversal of the Spindle - Tap Self Feeds, Factory Installed ---> FREE GROUND UPS on the item. *** NOTE: This item can ship either to a Commercial or Residential Address!"

WMH5225351
$9,781.25 $8,046.12
"Peck Drilling Attachment, Factory Installed ---> FREE GROUND UPS on the item. *** NOTE: This item can ship either to a Commercial or Residential Address!"

WMH5225361
$6,338.09 $5,202.30
"Rapid Advance - Normal Feed - Rapid Return Attachment, Factory Installed ---> FREE GROUND UPS on the item. *** NOTE: This item can ship either to a Commercial or Residential Address!"

WMH5225371
$7,686.25 $6,308.76
"Rapid Advance Cycling for Tubing, Factory Installed ---> FREE GROUND UPS on the item. *** NOTE: This item can ship either to a Commercial or Residential Address!"

WMH5225381
$13,660.00 $11,211.90
"X- and Y-Axis Cross Compound Table - 19"" x 39"", Factory Installed --->FREE TRUCK SHIPPING on this item to any Commercial Address within the Continental USA *** NOTE: Residential or tailgate Charges are not Included. "
