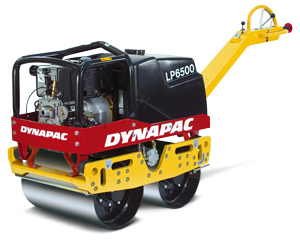

The LP6500 is a duplex
roller, ideal for compacting soil and asphalt. The machine is fully
hydraulic which allows a small overhang enabling the roller to run
close to obstructions, eg, walls. It is equipped with a large
watertank, dead-man’s handle and push-stop. The machine can also be
supplied with an electric starter |
|
SPECIFICATIONS |
|
Dimensions (in) |
Electrical |
Manual |
|
Drum width |
26 |
|
Masses (lbs) |
|
Net mass |
1,495 |
1,450 |
|
Operating mass |
1,579 |
1,535 |
|
Engine |
|
Manufacturer |
Hatz |
|
Model |
1D50S |
|
Starting system |
Electrical start |
Crank |
|
Fuel |
Diesel |
|
Output, hp/rpm |
9.3/2,600 |
9.2/2,600 |
|
Compaction |
|
Static linear load, lb/in |
31 |
30 |
|
Frequency, Hz/vpm |
0.02/3,660 |
|
Amplitude, in |
0.02 |
|
Centrifugal force, lbs |
4,720 |
|
|
|
