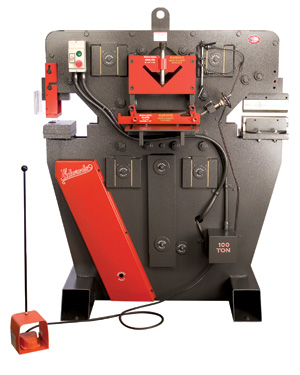

Edwards 100 Ton IV Ironworker

Key Features

  • 4 Availiable Stations

  • High Capacity Angle Shear

  • Universal Open Station

  • The Workhorse!

Tooling & Accessory Options

  • Oversized Punching Assembly

  • Coper Notcher, Angle notcher

  • Pipe Notcher

  • Brake (shown)

  • Multi Shear

  • Rod Shear

  • 241 Punch Assembly

  • Back Gauge

  • Gauging Table

  • Pedestal Die Table

  • Magna Light

  • Urethane Stripper

New Features For 2008
  • Electric Stroke Control Standard
    (Value $996)
  • Pedestal Die Table (Value $339)
  • New Power Unit Design
  • New "Whisper Quiet" Hydraulic System
    (patent pending)
  • New Electronic Controls
  • New Electric Foot Pedal
edwards/presbrk.jpg Click Here For
Edwards Tooling Accessories

Limited Offer
FREE: Punch & Die Starter Box-8 Sets: 3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16"
 (VALUE $260.00)
 edwards/edwrd_pnchdie_sm.jpg
SPECIFICATIONS
PUNCH US Metric
Max. Capacity 1-1/16" dia. in 1" plate 2.69cm x 2.54cm
Work Height 41 1/2" 105.41cm
FLAT BAR SHEAR
Max. Width 3/4" x 14" 1.90cm x 35.56cm
Max. Thick. 1" x 10" 2.54cm x 25.4cm
Max. Round 1 1/4" 3.17cm
Max. Square 1 1/4" 3.17cm
Work Height 41  1/2" 105.41cm
ANGLE SHEAR
Max. Size 6" x 6" x 1/2" 15.24cm x 15.24cm x 1.27cm
Work Height 40" 101.6cm
OPEN STATION
Throat Depth 10" 25.4cm
Open Height 8 5/8" 21.90cm
Shut Height 6 3/4" 17.14cm
Stroke 1 7/8" 4.76cm
Work Height 39 1/4" 99.69cm
GENERAL SPECS
Rated Capacity 100 ton
Throat Depth 10" 25.4cm
Open Height 8-5/8" 21.90cm
Shut Height 6 3/4" 17.14cm
Stroke 1-7/8" 4.76cm
Electric Motor Standard 5 HP, 3 Phase, 208/240 v, 1725 rpm, 26 amp
Electric Motor Options 5 HP, 3 Phase, 208/2300 v, 1725rpm, 26 amp or 575 v, 7 amp
Hydraulic Pump Size 10 1/2 gpm - stage 39.74L per min
Valve Pressure 3000 psi 206.84bar
Reservoir 17 gallons 64L
Cylinder 3-1/2" Ram 8.89cm
Dimensions: Base x Height 42 3/4" x 43" x 62" 108.58cm x 109.22cm x 157.48cm
Shipping Weight 3850 pounds 1746.33kg

100ton-sm.jpg EDWIW-100-A04
$14,996.00 $14,242.64
"100T E3100 TON "JAWS IV" Iron Worker 220 VOLT 3Ph :::: ((CALL TODAY at 1-800-458-3687 for Freight Rate on this item, If Any!))

  ((Special Voltage - 440 Volt / 575 Volt 3 Phase = Add $120.00))
edwards/edwrd_pnchdie_sm.jpg
Limited FREE Offer with the purchase of ANY Ton Iron Worker!
Punch & Die Starter Box-8 Sets (Part # EDWE08-00)
3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16"
(VALUE $260.00)

100ton-sm.jpg EDWIW-100-A02
$15,296.00 $14,527.57
"100T E3100 TON "JAWS IV" Iron Worker 220 VOLT 1Ph :::: ((CALL TODAY at 1-800-458-3687 for Freight Rate on this item, If Any!))
edwards/edwrd_pnchdie_sm.jpg
Limited FREE Offer with the purchase of ANY Ton Iron Worker!
Punch & Die Starter Box-8 Sets (Part # EDWE08-00)
3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16"
(VALUE $260.00)

edwards/edwrd_pnchdie_sm.jpg EDWE08-00
$260.00
Punch & Die Starter Box-8 Sets: 3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker))

edwards/oversizepunch-sm.gif EDW1024
$500.00

Oversize punch and die assembly For Oversized Punch & Dies from 1-1/8" to 1-9/16" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker))"   ** See Bottom of this page for Punch & Die Chart ** Click here for more information!!!

edwards/241tooling-sm.gif EDW1055
$1,075.00
241 Punch Assembly For Oversized Punch & Dies from 1-5/8" TO 4"  ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker))" ** See Bottom of this page for Punch & Die Chart ** Click here for more information!!!

pipenotch-sm.gif EDW0925-00
$300.00

"Pipe Notching Housing (for 1/2" to 2" dies) In addition to this Item please add one or more of the "Pipe Notching Dies" Listed below for the correct notching size that you require. (Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker) Click here for more information!!!


EDW1044
$338.00
"Pipe Notching Dies-1/2" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

EDW1045
$364.00
"Pipe Notching Dies-3/4" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

EDW1046
$388.00
"Pipe Notching Dies-1" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

EDW1047
$414.00
"Pipe Notching Dies-1 1/4" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

EDW1048
$440.00
"Pipe Notching Dies-1 1/2" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

EDW1049
$464.00
"Pipe Notching Dies-2" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

EDW0858-01
$1,098.00
"Rod Shear and Housing-1/4",3/8",1/2",5/8",3/4",1" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

edwards/anglenotch-sm.gif EDW0125-31
$940.00
"Vee Notches-3" x 3" x 1/4" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

edwards/pedestal-sm.gif EDW0895-00
$339.00
"Standard Pedestal Die Table-standard to 1 1/16 to punch angle iron"" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

edwards/brake-sm.gif EDW1035
$1,050.00

12" Brake w/4-way Die-1/16", 1/8",3/16",1/4" 10" (for use with the 75 & 100 Ton JAWS IV Ironworker ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker))" Click here for more information!!!

edwards/copernotcher_sm.gif EDW1098
$1,140.00
"# 1 Best Selling Accessory -  ** Coper-Notcher for the 100 Ton JAWS IV Iron Workers **  ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker))" Click here for more information!!!


EDW0900-KIT
$165.00
3/8” x 12” x 16” punch Gauging Table Kit ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker Click here for more information!!!


EDW0900-KIT-HD
$550.00
1” x 12” x 16” punch Heavy Duty Gauging table accessory kit ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker Click here for more information!!!


EDW1017
$35.00
Fabricator’s Protractor guides your work to the shear or punch stations through 180 degrees ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker Click here for more information!!!
Please Call 800-458-3687 To Place an Order for items listed Below!
Special Order Items!
Delivers usually Ground UPS in 1 Week

S T A N D A R D  P U N C H E S  &  D I E S

Punch & Die Starter Box - #E08-00 (8 sets: 3/16" to 1-1/16") $239.00
Hex Punch & Die up to 29/32" Set: one punch, one die $183.46
Oblong Punch & Die up to 1-1/16" Set: one punch, one die $122.30
Rectangular Punch & Die up to 5/8" x 7/8" Set: one punch, one die $245.78
Round Punch & Die up to 1-1/16" Set: one punch, one die $34.95
Square Punch & Die up to 3/4" Set: one punch, one die $108.19


O V E R S I Z E   P U N C H E S  &  D I E S

Round Punch & Die up to 1-9/16" Set: one punch, one die $56.45
Square Punch & Die up to 1-1/16" Set: one punch, one die $176.40
Oblong Punch & Die up to 1-9/16" Set: one punch, one die $210.50
Hex Punch & Die up to 1-1/4" Set: one punch, one die $245.78

2 4 1   P U N C H E S  &  D I E S

241 Round Punch & Die 1"  to  2" Set: one punch, one die $296.35
241 Round Punch & Die 2-1/32" to 2-1/2" Set: one punch, one die $329.28
241 Round Punch & Die 2-17/32" to 3" Set: one punch, one die $362.21
241 Round Punch & Die 3-1/32" to 3-1/2" Set: one punch, one die $408.07
241 Round Punch & Die 3-17/32" to 4" Set: one punch, one die $435.12

NOTES:

All punch & die sets are available in 1/32" increments and are
shipped with a 1/32" die clearance unless otherwise noted.

Refer to punch & die list for all other shapes and sizes.

All shaped punches are shipped with keyway and drill spots.

Prices subject to change without notice.

Custom Punch & Dies are available.
