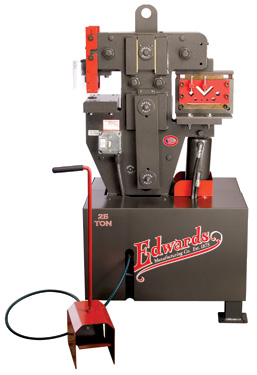

Edwards 25 Ton Ironworker

Key Features

2 Availiable Stations
Universal Open Tooling Cavity
Punching Station
Specialized for Smaller Jobs!

Tooling & Accessory Options

Angle Notcher
Pipe Notcher
Coper/Notcher
Multi Shear (shown)
Rod Shear
Punching Assembly
Oversized Punching Assembly
241 Punch Assembly
Brake
Pedestal Die Table
Magna Light
Urethane Stripper

New Features For 2008

New Power Unit Design
New "Whisper Quiet" Hydraulic System
(patent pending)
New Electronic Controls
New Electric Foot Pedal

Click Here For
Edwards Tooling Accessories

Limited Offer
FREE: Punch & Die Starter Box-8 Sets: 3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16"
(VALUE $260.00)

SPECIFICATIONS
PUNCH	US	Metric
Max. Capacity	1" dia. in 5/16" plate	2.54cm x 0.79cm
Work Height	38 1/2"	97.79cm
OPEN STATION SPECIFICATIONS
Throat Depth	5"	12.7cm
Open Height	8"	20.32cm
Shut Height	7"	17.78cm
Stroke	1"	2.54cm
Work Height	35 3/4"	90.80cm
GENERAL SPECS
Rated Capacity	25 ton
Throat Depth	5 1/2"	13.97cm
Open Height	6"	15.24cm
Shut Height	5"	12.7cm
Stroke	1"	2.54cm
Electric Motor Standard	1 HP, 1 Phase, 208/220 v, 1725 rpm, 7 amp
Electric Motor Options	1 HP, 1 Phase, 110 v, 1725 rpm, 14 amp
Hydraulic Pump Size	11 gpm - 2 stage	41.63L per min
Valve Pressure	2200 psi	151.68bar
Reservoir	3 gallons	11.35L
Cylinder	1 3/4" Ram	4.44cm
Dimensions: Base x Height	29" x 23" x 55"	73.66cm x 58.42cm x 139.7cm
Shipping Weight	1000 pounds	453.59kg

EDW0900-KIT
$165.00
3/8” x 12” x 16” punch Gauging Table Kit ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker Click here for more information!!!

EDW0900-KIT-HD
$550.00
1” x 12” x 16” punch Heavy Duty Gauging table accessory kit ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker Click here for more information!!!

EDW1017
$35.00
Fabricator’s Protractor guides your work to the shear or punch stations through 180 degrees ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker Click here for more information!!!

Please Call 800-458-3687 To Place an Order for items listed Below! Special Order Items! Delivers usually Ground UPS in 1 Week

S T A N D A R D P U N C H E S & D I E S

Punch & Die Starter Box - #E08-00	(8 sets: 3/16" to 1-1/16")	$239.00
Hex Punch & Die up to 29/32"	Set: one punch, one die	$183.46
Oblong Punch & Die up to 1-1/16"	Set: one punch, one die	$122.30
Rectangular Punch & Die up to 5/8" x 7/8"	Set: one punch, one die	$245.78
Round Punch & Die up to 1-1/16"	Set: one punch, one die	$34.95
Square Punch & Die up to 3/4"	Set: one punch, one die	$108.19


O V E R S I Z E P U N C H E S & D I E S

Round Punch & Die up to 1-9/16"	Set: one punch, one die	$56.45
Square Punch & Die up to 1-1/16"	Set: one punch, one die	$176.40
Oblong Punch & Die up to 1-9/16"	Set: one punch, one die	$210.50
Hex Punch & Die up to 1-1/4"	Set: one punch, one die	$245.78

2 4 1 P U N C H E S & D I E S

241 Round Punch & Die 1" to 2"	Set: one punch, one die	$296.35
241 Round Punch & Die 2-1/32" to 2-1/2"	Set: one punch, one die	$329.28
241 Round Punch & Die 2-17/32" to 3"	Set: one punch, one die	$362.21
241 Round Punch & Die 3-1/32" to 3-1/2"	Set: one punch, one die	$408.07
241 Round Punch & Die 3-17/32" to 4"	Set: one punch, one die	$435.12

NOTES: All punch & die sets are available in 1/32" increments and are shipped with a 1/32" die clearance unless otherwise noted. Refer to punch & die list for all other shapes and sizes. All shaped punches are shipped with keyway and drill spots. Prices subject to change without notice. Custom Punch & Dies are available.
