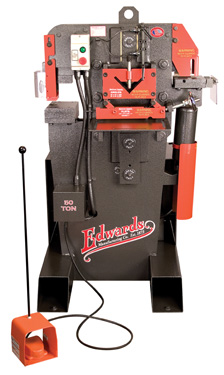

Edwards 50 Ton Ironworker

Buy Any Edward's Ironworker & Choose One FREE Accessory Of YOUR Choice Or FREE Freight!
Plus Take An Extra 5% OFF Any Additional Accessory - Offer Ends November 30, 2009

Key Features

  • 4 Availiable Stations

  • Punching Station to accept optional tooling

  • Open Station for optional Coper/Notcher

  • Compact: Perfect for small shops!

Tooling & Accessory Options

  • Oversized Punching Assembly

  •  Back Gauge

  • Gauging Table

  • Coper Notcher (shown)

  • Angle Notcher

  • Pipe Notcher

  • Pedestal Die Table

  • Magna Light

  • Brake

  • Multi Shear

  • Rod Shear

  • Urethane Stripper

  • 241 Punch Assembly
New Features For 2008
  • Electric Stroke Control Standard
    (Value $996)
  • Pedestal Die Table (Value $339)
  • New Power Unit Design
  • New "Whisper Quiet" Hydraulic System
    (patent pending)
  • New Electronic Controls
  • New Electric Foot Pedal
edwards/presbrk.jpg Click Here For
Edwards Tooling Accessories

Limited Offer
FREE: Punch & Die Starter Box-8 Sets: 3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16"
 (VALUE $260.00)
 edwards/edwrd_pnchdie_sm.jpg
SPECIFICATIONS
PUNCH US Metric
Max. Capacity 1" dia. in 5/8" plate 2.54cm x 1.58cm
Work Height 37-5/8" 95.56cm
FLAT BAR SHEAR
Max. Width 1/2" x 10" 1.27cm x 25.4cm
Max. Thick 3/4" x 4" 1.905cm x 10.16cm
Max. Round 3/4" 1.905cm
Max. Square 3/4" 1.905cm
Work Height 35 1/2" 90.17cm
ANGLE SHEAR
Max. Size 4" x 4" x 1/4" or 3" x 3" x 3/8" 10.16cm x 10.16cm x 0.635cm or 7.62cm x 7.62cm x 0.95cm
Work Height 40-3/4" 103.50cm
OPEN STATION
Max. Capacity 2" x 3" x 5/16" 5.08cm x 7.62cm x 0.7cm
Work Height 43-1/8" 109.53cm
GENERAL SPECS
Rated Capacity 50 ton
Throat Depth 7" 17.78cm
Open Height 8 1/8" 20.6375cm
Shut Height 7"" 17.78cm
Stroke 1 1/8" 2.85cm
Cycle Time 2 seconds
Electric Motor Standard 5 HP, 3 Phase, 208/240 v, 1725 rpm, 14 amp
Electric Motor Options 5 HP, 3 Phase, 440/480 v or 575 v, 7 amp, 5 HP, 1 Phase, 208/240 v, 1725 rpm, 26 amp
Hydraulic Pump Size 3-1/2 gpm - 1 stage 13.24L per min
Valve Pressure 2500 psi 172.36bar
Reservoir 7 gallons 26.49L
Cylinder 2 1/2" ram  6.35cm
Dimensions: Base x Height 28 1/4" x 38 1/2" x 54" 71.755cm x 97.79cm x 137.16cm
Shipping Weight 1550 pounds 703.06kg

50ton-sm.jpg EDWIW50-04
$6,696.00 $6,227.28
"50TP E350 TON PRO "JAWS IV" Iron Worker 220 VOLT 3Ph :::: (*** Limited Time Offer = FREE FREIGHT or Choose ANY ONE ACCESSORY Listed Below of Your Choice and we will include it for FREE! ) - PC-042409 ((Special Voltage - 440 Volt / 575 Volt 3 Phase = Add $120.00))
edwards/edwrd_pnchdie_sm.jpg
Limited FREE Offer with the purchase of ANY Ton Iron Worker!
Punch & Die Starter Box-8 Sets (Part # EDWE08-00)
3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16"
(VALUE $260.00)

50ton-sm.jpg EDWIW50-02
$6,996.00 $6,506.28
"50TP E350 TON PRO "JAWS IV" Iron Worker 220 VOLT 1Ph :::: (*** Limited Time Offer = FREE FREIGHT or Choose ANY ONE ACCESSORY Listed Below of Your Choice and we will include it for FREE! ) - PC-042409
edwards/edwrd_pnchdie_sm.jpg
Limited FREE Offer with the purchase of ANY Ton Iron Worker!
Punch & Die Starter Box-8 Sets (Part # EDWE08-00)
3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16"
(VALUE $260.00)

edwards/edwrd_pnchdie_sm.jpg EDWE08-00
$260.00
Punch & Die Starter Box-8 Sets: 3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker))

edwards/oversizepunch-sm.gif EDW1024
$500.00

Oversize punch and die assembly For Oversized Punch & Dies from 1-1/8" to 1-9/16" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker))"   ** See Bottom of this page for Punch & Die Chart ** Click here for more information!!!

edwards/241tooling-sm.gif EDW1055
$1,075.00
241 Punch Assembly For Oversized Punch & Dies from 1-5/8" TO 4"  ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker))" ** See Bottom of this page for Punch & Die Chart ** Click here for more information!!!

pipenotch-sm.gif EDW0925-00
$300.00 $300.00

"Pipe Notching Housing (for 1/2" to 2" dies) In addition to this Item please add one or more of the "Pipe Notching Dies" Listed below for the correct notching size that you require. (Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker) Click here for more information!!!


EDW1044
$338.00
"Pipe Notching Dies-1/2" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

EDW1045
$364.00
"Pipe Notching Dies-3/4" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

EDW1046
$388.00
"Pipe Notching Dies-1" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

EDW1047
$414.00
"Pipe Notching Dies-1 1/4" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

EDW1048
$440.00
"Pipe Notching Dies-1 1/2" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

EDW1049
$464.00
"Pipe Notching Dies-2" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

EDW0858-01
$1,098.00 $1,098.00
"Rod Shear and Housing-1/4",3/8",1/2",5/8",3/4",1" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

edwards/anglenotch-sm.gif EDW0125-31
$940.00 $940.00
"Vee Notches-3" x 3" x 1/4" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

edwards/pedestal-sm.gif EDW0895-00
$339.00
"Standard Pedestal Die Table-standard to 1 1/16 to punch angle iron"" ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker" Click here for more information!!!

edwards/brake-sm.gif EDW1034
$740.00 $740.00
8" Brake w/4-way Die-1/16", 1/8",3/16"1/4" 10" (for use with the 50, 55, & 60 Ton Ironworker ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker))" Click here for more information!!!

edwards/copernotcher_sm.gif EDW50-340-00
$400.00 $400.00
"# 1 Best Selling Accessory -  ** Coper-Notcher for the 50 Ton JAWS IV Iron Workers **  ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker))" Click here for more information!!!


EDW0900-KIT
$165.00
3/8” x 12” x 16” punch Gauging Table Kit ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker Click here for more information!!!


EDW0900-KIT-HD
$550.00
1” x 12” x 16” punch Heavy Duty Gauging table accessory kit ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker Click here for more information!!!


EDW1017
$35.00
Fabricator’s Protractor guides your work to the shear or punch stations through 180 degrees ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker Click here for more information!!!


EDW48AC
$750.00

48” Auto Cut Production cutting for repeatable lengths! ::::Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker - PC-012909  Click here for more information!!!


edwards/multishear-sm.gif EDW1075
$790.00 $790.00
Multi Shear, Capacities- 2” x 2” angle, 1/6” x 6” flat, Ό”, ½”, 3/8”, 5/8”, Ύ” round, Ύ” square ((Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker Click here for more information!!!
Please Call 800-458-3687 To Place an Order for items listed Below!
Special Order Items!
Delivers usually Ground UPS in 1 Week

S T A N D A R D  P U N C H E S  &  D I E S

Punch & Die Starter Box - #E08-00 (8 sets: 3/16" to 1-1/16") $239.00
Hex Punch & Die up to 29/32" Set: one punch, one die $183.46
Oblong Punch & Die up to 1-1/16" Set: one punch, one die $122.30
Rectangular Punch & Die up to 5/8" x 7/8" Set: one punch, one die $245.78
Round Punch & Die up to 1-1/16" Set: one punch, one die $34.95
Square Punch & Die up to 3/4" Set: one punch, one die $108.19


O V E R S I Z E   P U N C H E S  &  D I E S

Round Punch & Die up to 1-9/16" Set: one punch, one die $56.45
Square Punch & Die up to 1-1/16" Set: one punch, one die $176.40
Oblong Punch & Die up to 1-9/16" Set: one punch, one die $210.50
Hex Punch & Die up to 1-1/4" Set: one punch, one die $245.78

2 4 1   P U N C H E S  &  D I E S

241 Round Punch & Die 1"  to  2" Set: one punch, one die $296.35
241 Round Punch & Die 2-1/32" to 2-1/2" Set: one punch, one die $329.28
241 Round Punch & Die 2-17/32" to 3" Set: one punch, one die $362.21
241 Round Punch & Die 3-1/32" to 3-1/2" Set: one punch, one die $408.07
241 Round Punch & Die 3-17/32" to 4" Set: one punch, one die $435.12

NOTES:

All punch & die sets are available in 1/32" increments and are
shipped with a 1/32" die clearance unless otherwise noted.

Refer to punch & die list for all other shapes and sizes.

All shaped punches are shipped with keyway and drill spots.

Prices subject to change without notice.

Custom Punch & Dies are available.
