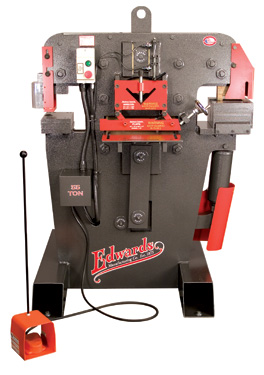

Key Features
-
4 Availiable Stations
-
Punching Station to accept optional tooling
-
Open Station for optional Coper/Notcher
-
Compact: Perfect for small shops!
Tooling & Accessory Options
|
New
Features For 2008
-
Electric
Stroke Control Standard
(Value $996)
-
Pedestal
Die Table (Value $339)
- New Power Unit Design
- New "Whisper Quiet" Hydraulic System
(patent pending)
- New Electronic Controls
- New Electric Foot Pedal
|
Limited Offer
FREE:
Punch & Die Starter Box-8 Sets:
3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16"
(VALUE $260.00)
 |
|
SPECIFICATIONS |
|
PUNCH |
US |
Metric |
| Max. Capacity |
1-1/16" dia. in 5/8" plate |
2.69cm x 1.58cm |
| Work Height |
37-1/2" |
95.25cm |
|
FLAT BAR SHEAR |
| Max. Width |
1/2" x 12" or 3/8" x 14" |
1.27cm x 30.48cm or 0.95cm x 35.56cm |
| Max. Thick |
3/4" x 4" |
1.90cm x 10.16cm |
| Max. Round |
7/8" |
2.22cm |
| Max. Square |
7/8" |
2.22cm |
| Work Height |
34-3/4" |
88.26cm |
|
ANGLE SHEAR |
| Max. Size |
4" x 4" x 1/4" or 3" x 3" x 3/8" |
10.16cm x 10.16cm x 0.635cm or 7.62cm
x 7.62cm x 0.95cm |
| Work Height |
40" |
101.6cm |
|
OPEN STATION |
| Throat Depth |
7" |
17.78cm |
| Open Height |
8" |
20.32cm |
| Shut Height |
6 3/4" |
17.14cm |
| Stroke |
1 1/4" |
3.17cm |
| Work Height |
35 1/4" |
89.53cm |
|
GENERAL SPECS |
| Rated Capacity |
55 ton |
| Throat Depth |
7 1/2" |
19.05cm |
| Open Height |
8" |
20.32cm |
| Shut Height |
6-3/4" |
17.14cm |
| Stroke |
1-1/4" |
3.175cm |
| Cycle Time |
2
seconds |
| Electric Motor Standard |
5 HP, 3 Phase, 208/240 v,
1725 rpm, 14 amp |
| Electric Motor
Options |
5 HP, 3
Phase, 440/480 v or 575 v, 7 amp, 5 HP, 1 Phase, 208/240 v, 1725
rpm, 26 amp |
| Hydraulic Pump Size |
3-1/2 gpm - 1 stage |
13.24L per min |
| Valve Pressure |
2600 psi |
179.26bar |
| Reservoir |
7 gallons |
26.49L |
| Cylinder |
2 1/2" ram |
6.35cm |
| Dimensions: Base x Height |
36" x 42-1/2" x 59" |
91.44cm x 107.95cm x 149.86cm |
| Shipping Weight |
2350 pounds |
1065.94kg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EDW0900-KIT
$165.00
3/8” x 12” x 16” punch Gauging Table Kit ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker
Click here for more information!!!
|
EDW0900-KIT-HD
$550.00
1” x 12” x 16” punch Heavy Duty Gauging table accessory kit ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker
Click here for more information!!!
|
EDW1017
$35.00
Fabricator’s Protractor guides your work to the shear or punch stations through 180 degrees ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker
Click here for more information!!!
|
