Key Features
Tooling & Accessory Options
|
New
Features For 2008
-
Electric
Stroke Control Standard
(Value $996)
-
Pedestal
Die Table (Value $339)
- New Power Unit Design
- New "Whisper Quiet" Hydraulic System
(patent pending)
- New Electronic Controls
- New Electric Foot Pedal
- Coper Notcher Included
|
Limited Offer
FREE:
Punch & Die Starter Box-8 Sets:
3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16"
(VALUE $260.00)
 |
|
SPECIFICATIONS |
|
PUNCH |
US |
Metric |
| Max. Capacity |
1" dia. in 3/4" plate |
2.54cm x 1.90cm |
| Work Height |
37-1/2" |
95.25cm |
|
FLAT BAR SHEAR |
| Max. Width |
1/2" x 12" or 3/8" x 14" |
1.27cm x 30.48cm or 0.95cm x 35.56cm |
| Max. Thick |
3/4" x 4" |
1.90cm x 10.16cm |
| Max. Round |
7/8" |
2.22cm |
| Max. Square |
7/8" |
2.22cm |
| Work Height |
34-3/4" |
88.26cm |
|
ANGLE SHEAR |
| Max. Size |
4" x 4" x 3/8" or 3" x 3" x 1/2" |
10.16cm x 10.16cm x 0.635cm or 7.62cm
x 7.62cm x 1.27cm |
| Work Height |
40" |
101.6cm |
|
COPER / NOTCHER |
| Max. Width |
2-1/2" x 5" x 1/4" |
6.35cm x 12.7cm x 0.63cm |
| Max. Thick |
2-1/2" x 4" x 3/8" |
6.35cm x 10.16cm x
0.95cm |
| Work Height |
40-3/8" |
102.55cm |
|
GENERAL SPECS |
| Rated Capacity |
60 ton |
| Throat Depth |
7 1/2" |
19.05cm |
| Open Height |
8" |
20.32cm |
| Shut Height |
6-3/4" |
17.14cm |
| Stroke |
1-1/4" |
3.175cm |
| Cycle Time |
2
seconds |
| Electric Motor Standard |
5 HP, 3 Phase, 208/240 v,
1725 rpm, 14 amp |
| Electric Motor
Options |
5 HP, 3
Phase, 440/480 v or 575 v, 7 amp, 5 HP, 1 Phase, 208/240 v, 1725
rpm, 26 amp |
| Hydraulic Pump Size |
3-1/2 gpm - 1 stage |
13.24L per min |
| Valve Pressure |
2800 psi |
193.05bar |
| Reservoir |
7 gallons |
26.49L |
| Cylinder |
2 1/2" ram |
6.35cm |
| Dimensions: Base x Height |
36" x 42-1/2" x 59" |
91.44cm x 107.95cm x 149.86cm |
| Shipping Weight |
2475 pounds |
1122.64kg |
|
EDWIW-60-02
$8,796.00 $8,354.11

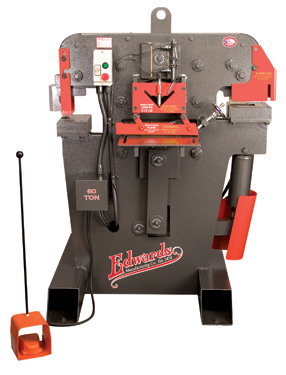

60T E360 TON "JAWS IV" Iron Worker 220 VOLT 1Ph , Coper-Notcher
for the 60 Ton JAWS IV Iron Workers Standard on this Model
:::: ((CALL TODAY at
1-800-458-3687 for Freight Rate on this item, If Any!))
Limited FREE Offer with the purchase of ANY Ton Iron Worker!
Punch & Die Starter Box-8 Sets (Part #
EDWE08-00)
3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16"
(VALUE $260.00)
|
EDWIW-60-04
$8,496.00 $8,069.18
60T E360 TON "JAWS IV" Iron Worker 220 VOLT 3Ph, Coper-Notcher
for the 60 Ton JAWS IV Iron Workers Standard on this Model
:::: ((CALL TODAY at 1-800-458-3687 for Freight Rate on this item, If Any!)
Limited FREE Offer with the purchase of ANY Ton Iron Worker!
Punch & Die Starter Box-8 Sets (Part #
EDWE08-00)
3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16"
(VALUE $260.00)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EDW0900-KIT
$165.00
3/8” x 12” x 16” punch Gauging Table Kit ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker
Click here for more information!!!
|
EDW0900-KIT-HD
$550.00
1” x 12” x 16” punch Heavy Duty Gauging table accessory kit ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker
Click here for more information!!!
|
EDW1017
$35.00
Fabricator’s Protractor guides your work to the shear or punch stations through 180 degrees ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker
Click here for more information!!!
|
