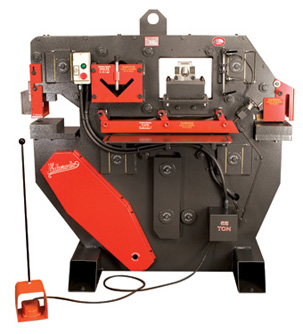

Key Features
Tooling & Accessory Options
|
New
Features For 2008
-
Electric
Stroke Control Standard
(Value $996)
-
Pedestal
Die Table (Value $339)
- New Power Unit Design
- New "Whisper Quiet" Hydraulic System
(patent pending)
- New Electronic Controls
- New Electric Foot Pedal
|
Limited Offer
FREE:
Punch & Die Starter Box-8 Sets:
3/16,5/16,7/16,9/16,11/16,13/16,15/16,1 1/16"
(VALUE $260.00)
 |
|
SPECIFICATIONS |
|
PUNCH |
US |
Metric |
| Max. Capacity |
1-1/16" dia. in 3/4" plate |
2.85cm x 1.90cm |
| Work Height |
36" |
91.44cm |
|
FLAT BAR SHEAR |
| Max. Width |
3/8" x 24" |
0.95cm x 60.96cm |
| Max. Thick |
1/2" x 14" or 1" x
4" |
1.27cm x 35.56cm x
2.54cm x 10.16cm |
| Max. Round |
1" |
2.54cm |
| Max. Square |
1" |
2.54cm |
| Work Height |
33-1/2" |
85.09cm |
|
ANGLE SHEAR |
| Max. Size |
5" x 5" x 1/4" or 4" x 4" x 3/8" |
12.7cm x 12.7cm x 0.63cm or 10.16cm x
10.16cm x 0.95cm |
| Work Height |
42" |
106.68cm |
|
COPER / NOTCHER |
| Max. Capacity |
2-1/2" x 6" x 3/8" |
6.35cm x 15.24cm x 0.95cm |
| Work Height |
35-1/2" |
90.17cm |
|
OPEN CAVITY |
| Specifications |
11-1/2" wide x 9-3/4" tall |
29.21cm x 24.765cm |
| Work Height |
42" |
106.68cm |
|
GENERAL SPECS |
| Rated Capacity |
65 ton |
| Throat Depth |
9-3/4" |
24.76cm |
| Open Height |
8-1/8" |
20.63cm |
| Shut Height |
6-3/4" |
17.14cm |
| Stroke |
1-3/8" |
3.49cm |
| Cycle Time |
2
seconds |
| Electric Motor Standard |
5 HP, 3 Phase, 208/240 v,
1725 rpm, 14 amp |
| Electric Motor
Options |
5 HP, 3
Phase, 440/480 v or 575 v, 7 amp, 5 HP, 1 Phase, 208/240 v,
1725 rpm, 26 amp |
| Hydraulic Pump Size |
10-1/2 gpm - 2 stage |
39.74L per min - 2 stage |
| Valve Pressure |
2800 psi |
193.05bar |
| Reservoir |
17 gallons |
64.35L |
| Cylinder |
3-1/2" ram |
8.89cm |
| Dimensions: Base x Height |
43" x 42" x 55" |
109.22cm x 106.68cm x 139.7cm |
| Shipping Weight |
4220 pounds |
1914.15kg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EDW0900-KIT
$165.00
3/8” x 12” x 16” punch Gauging Table Kit ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker
Click here for more information!!!
|
EDW0900-KIT-HD
$550.00
1” x 12” x 16” punch Heavy Duty Gauging table accessory kit ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker
Click here for more information!!!
|
EDW1017
$35.00
Fabricator’s Protractor guides your work to the shear or punch stations through 180 degrees ----> Southern-Tool: FREE FREIGHT When Purchased With Edwards Ironworker
Click here for more information!!!
|
