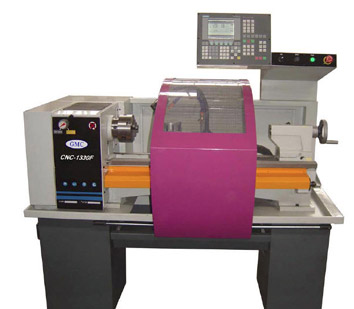

GMC CNC-1330F Bench Lathe at Southern Tool Catalog

Features

ISO 9001 certified
Ease-of-use SIEMENS 802C CNC control
CNC programmable spindle speeds from 10 to 3,000 rpm
Safety slide front doors
Electrical automatic 4-way turret toolpost
Fully ballscrews enclosure
RS 232 interface
High speed machining
Popular Ease-of-use Conversational programming, Conversational leads you to
go through programming your part, just fill in the blanks and check the graphic.
Select from all canned cycles, such as, profiling, material removing, roughing
and finishing, inside & outside threading, line, arc, drilling and floating tapping,
cut-off, grooving, radius, chamfering
G code and M code programming
CSS-constant surface speeds
CAD/CAM connector
Tools library
Tool length & radius compensation
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system for ballscrews and guideways
Automatic lubrication system in headstock and feed box
One year warranty for parts

Standard Equipment

Specifications
Model	CNC-1330F
Max. swing over bed	13”
Max. length of workpiece	30”
Max. cutting length	23”
Max. swing over cross slide	5-1/2”
Max. turning diameter over bed	10”
Width of Bed	8-1/2”
Spindle bore	1-1/2” , D1-4
Taper of spindle center	M.T.# 5
Spindle speeds, CNC programmable	10– 3,000 rpm
Diameter of tailstock quill	1-7/8”
Max. travel of tailstock quill (manual)	4-3/4”
Taper of tailstock quill center	M.T. # 3
Auto turret toolpost	4 positions
Max. tool size for auto turret toolpost	5/8” x 5/8”
Max. travel for X axis	7”
Max. travel for Z axis	23”
Main motor	4 HP, 220V , 3 or 1 phase
Coolant pump	1/8 HP , 220V, 1 phase
Auto lubrication	1/16 HP , 220V , 1 phase
Net Weight, approx.	1,780 LBS
Overall Dimensions, LxWxH	78” x 45” x 81”
