Standard Features
-
Taiwan Mill
-
Meehanite casting
-
Turcite B coating on X/Y ways
-
ISO 9001 certified
-
Mechanical step pulley 16 speeds from 90-5,600 rpm
-
Mechanical variable spindle speeds from 70-4,300 rpm
-
Heavy duty 3 HP AC spindle motor, 3 phase ( for ideal of
tapping jobs, we
strongly recommend to take 3 phase mill with phase converter )
-
Heavy Duty high grade castings
-
Hardened & ground ways, dovetail way on X, Box ways on knee
and column
-
Hardened & ground table and Ground table T-slots
-
Precision ground ACME Leadscrews
-
Chromed ground quill ( spindle )
-
Chrome dials
-
Adjustable ways
-
Hand brake for quick spindle stop
-
Tilting & rotating head
-
Manual or automatic quill feeds 0.0015 , 0.003, 0.006 per
spindle revolution
-
One shot lube system
-
Front and rear rubber chip guards, and (1) manual draw bar
-
Tool box kit and leveling pads
-
Power source 220V OR 440V , 3 phase
-
One year warranty for parts
|
|

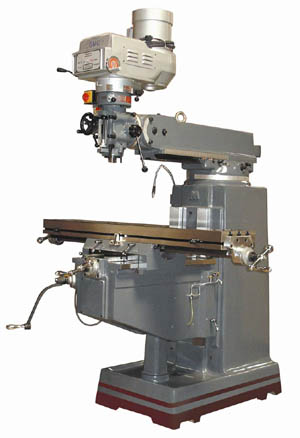

Optional Equipment for GMM-1054V Manual Knee Type Mill
-
DRO Mitutoyo # KA, 2 axis , free installation
-
DRO NEWALL # C 80, 2 axis , free installation
-
DRO NEWALL # C 80, 3 axis , free installation
-
Power air draw bar # HQR8, High Quality( USA)
-
Coolant system w/ pump, nozzles and hoses #FLD-COOL
-
Base coolant/chip drop pan# COOL-PAN
-
Power feed # FP-180X, x axis , free installation
-
Power feed # FP-180Y, y axis, free installation
-
Power feed # FP-180Z for knee up/down, free installation
-
Halogen work light # HLT
-
Auto luber with alarm# AUTOLU , free installation
-
6 anglock vise# 900-0021
-
52 pcs clamping kit # 900-0001, ½-13NC stud, 5/8 T-slot
-
11 pcs R 8 collets set #900-0007, 1/8 7/8
-
Phase converter # PAM-300HD, USA for single phase
conversion....
-
Mill package # 3, incl 6 vise # 900-0021-3, collet set #
11pc R8 collet set, clamping
Kit# 900-0001, 20pc Titanium end mill
Set # 8000-0020, 29pc Titanium drill bit set # 5000-0001T
|
|
Specifications |
| Model |
GMM-1054V |
| Table Size |
10 x 54 |
| Table Load Capacity |
750 LBS |
| X Axis Travel |
36-1/2 |
| Y Axis Travel |
16 |
| Z Axis Travel |
16 |
| Spindle Taper Type |
R 8 |
| AC Spindle Motor |
3 HP |
| Variable spindle speeds |
60-4,200 rpm |
| Quill ( Spindle )
diameter |
3 3/8 |
| Quill ( Spindle ) travel |
5 |
| Ram travel |
18 |
| Table T-slot size |
5/8 x 3 slots |
| Head Swivel, R/H , L/H |
90 degree |
| Net weight, LBS |
3,250 |
|
|
|
|
GMCGMM-1054VPKG
$6,650.00
"10X54"",VARI-SPD, 3HP, 220V OR 440V,w/ free OEM DRO & X POWER FEED with free coolant system (Taiwan) ----> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"
|
GMCGMM-1054VPKG-NEWALL
$7,550.00
"10X54"",VARI-SPD, 3HP, 220V OR 440V, NEWALL DRO, & X POWER FEED with free coolant system (Taiwan) ===>FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!**"""
|
|
GMCC80-2M-1054
$1,150.00
NEWALL DRO # C80, 2 axis for mill model# GMM-1054V only, factory install ----> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
